Tile Bathroom Wall Panels - Waterproof Composite Bathroom Wall Panel

Verified by manufacturer 2 days ago

Wilsonart

Our Tile collection has been made from a specially formulated composite material to ensure it is 100% waterproof.

Jump to:
+44 (0)1388 770 138 Website

Application

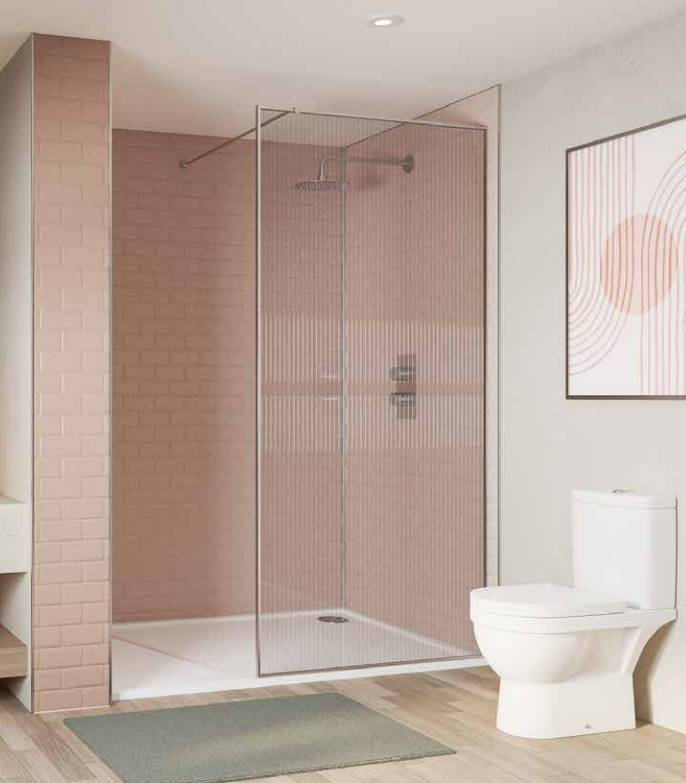

Suitable for use in bathrooms around shower and bath units.

Description

Tile shower panels are a decorative, composite tile effect (embossed) bathroom wall panel used for creating a water-resistant wall covering around a shower or bath.

Features and benefits:

  • 100% water-resistant.
  • Easy to clean with no grout.
  • Range of tile colours.
  • Square edge.
  • Trims and endcaps are available.
  • Suitable layouts include: Vertical and Horizontal panels, for shower/ bath combination.
  • A lifetime warranty*

*Warranty is validated, provided the product has been installed as per the installation instructions.

General information

Color

Grey

Brown

Beige

White

Black

Show more

Finish

Other

Material

Composite

Shape

Rectangle

Length

2400 mm

Width

600 mm

1200 mm

2400 mm

Height

3 mm

Warranty description

Lifetime

Uniclass

Pr_25_71_63_15 Compact or solid grade high-pressure laminate (HPL) boardsPrimary

CAWS

N13/355 Baths

N13/375 Shower units

K13/160 Proprietary

N10/10 Purpose-made

N10/110 Purpose-made

K13/160 Proprietary

Specification data - Compact or solid grade high-pressure laminate (HPL) boards

Classification data

Grade

HPL/ BS EN 438-2, vertical.
HPL/ BS EN 438-2, horizontal.

Fire performance

To EN 13501, B-s2, d0.

Thickness

3 mm.

Panel size

-

Length

2400 mm.

Width

600 mm.
1200 mm.

Edges

Square.

Finish

Gloss.

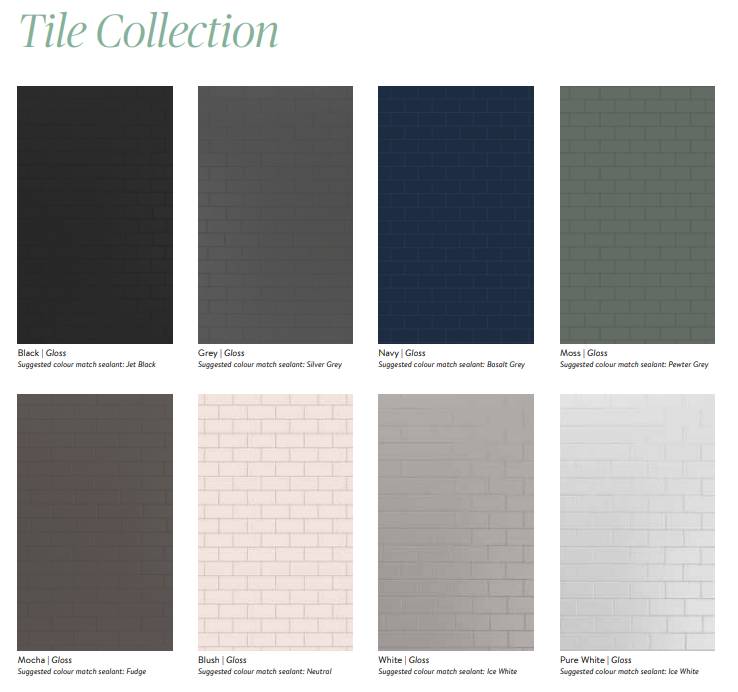

Colour

Black.
Grey.
Navy.
Moss.
Mocha.
Blush.
White.
Pure white.

Core

Compact HPL core.

Facing

Decorative compact HPL.

Impact resistance

To EN 438-2, ≥1800 mm.

Guidance for specification option:

Impact resistance (Large diameter ball) (Drop height for ≤10 mm diameter imprint).

Abrasion resistance

To EN 438-2, unicolour: ≥150 revolutions and printed decor: ≥125 revolutions.

Scratch resistance

To EN 438-2, ≥2 N (smooth finish) and ≥3 N (textured finish).

Stain Resistance

To EN 438-2, Group 1 and 2: ≥5 and Group 3: ≥4.

Colour fastness

To EN 438-2, ≥4–5 grey scale.

Accessories

Not required.
End cap.
Internal corner.
External corner.
Bottom floor trim, PVC white.
Shower niche.
Cover shelving.
Adhesive.
Sealant.

Colour

Polished silver, aluminium.
Black, PVC.
White, PVC.

Formaldehyde emissions

To EN 438-7, E1.

Sustainability data

Material

Composite
