Application

Forms a concealed access panel within a tiled wall.

Description

Manthorpe's Tile Access Panel is a versatile kit of parts that can be quickly assembled to form a cloaked access panel within a tiled wall. The panel is completely flexible and can accommodate most tile sizes.


It can be installed into all existing wall panel materials (plasterboard or tile backer board), of any thickness, fitting flush with the surrounding tiles.


Kit parts:

  • Clip-on corner hinges/ Corner hinge supports/ Corner magnet supports/ Magnetic touch latches (white high impact polystyrene).
  • Clip-on corners with contact plates (white high impact polystyrene/ zinc coated steel).
  • Fibre cement tile backing board.

General information

Color

Other

Finish

Other

Guidance for specification option:

Dependent on the type of tile used.

Material

Polystyrene

PVC-U

Fibre cement

Shape

Square

Length

150 mm

Guidance for specification option:

Minimum opening.

450 mm

Guidance for specification option:

Maximum opening.

Width

150 mm

Guidance for specification option:

Minimum opening.

450 mm

Guidance for specification option:

Maximum opening.

Uniclass

Pr_30_59_36_01 Access panelsPrimary

CAWS

M40/110 Tiling to

Specification data - Access panels

Position

Wall mounted.

Size

-

Manufacturer guidance

Insert requirements.

Minimum: 150 x 150 mm

Maximum 465 x 465 mm

Frame

Unplasticized polyvinyl chloride (PVC-U).

Panel

-

Material

Fibre cement.

Latch or lock type

Magnetic touch latches.

Operation

Touch release.

Integral accessories

Clip-on corner hinges, Corner hinge supports, Corner magnet supports.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Literature

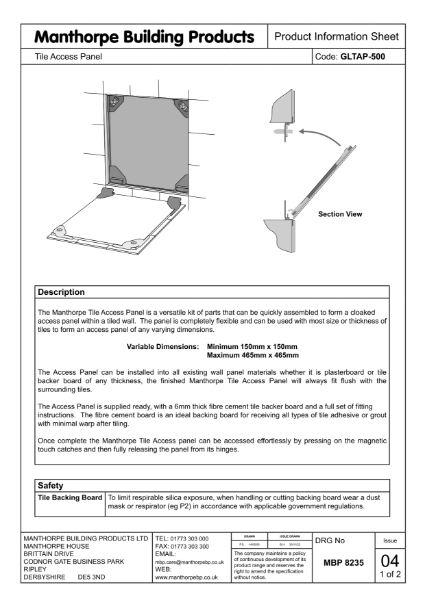

Tile Access Panel Data Sheet

Tile Access Panel Data Sheet

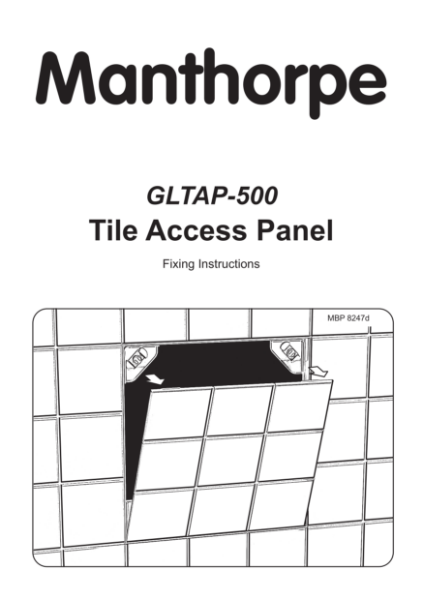

Tile Access Panel Fitting Instructions

Tile Access Panel Fitting Instructions
