TIAC1 Indicator Post

Description

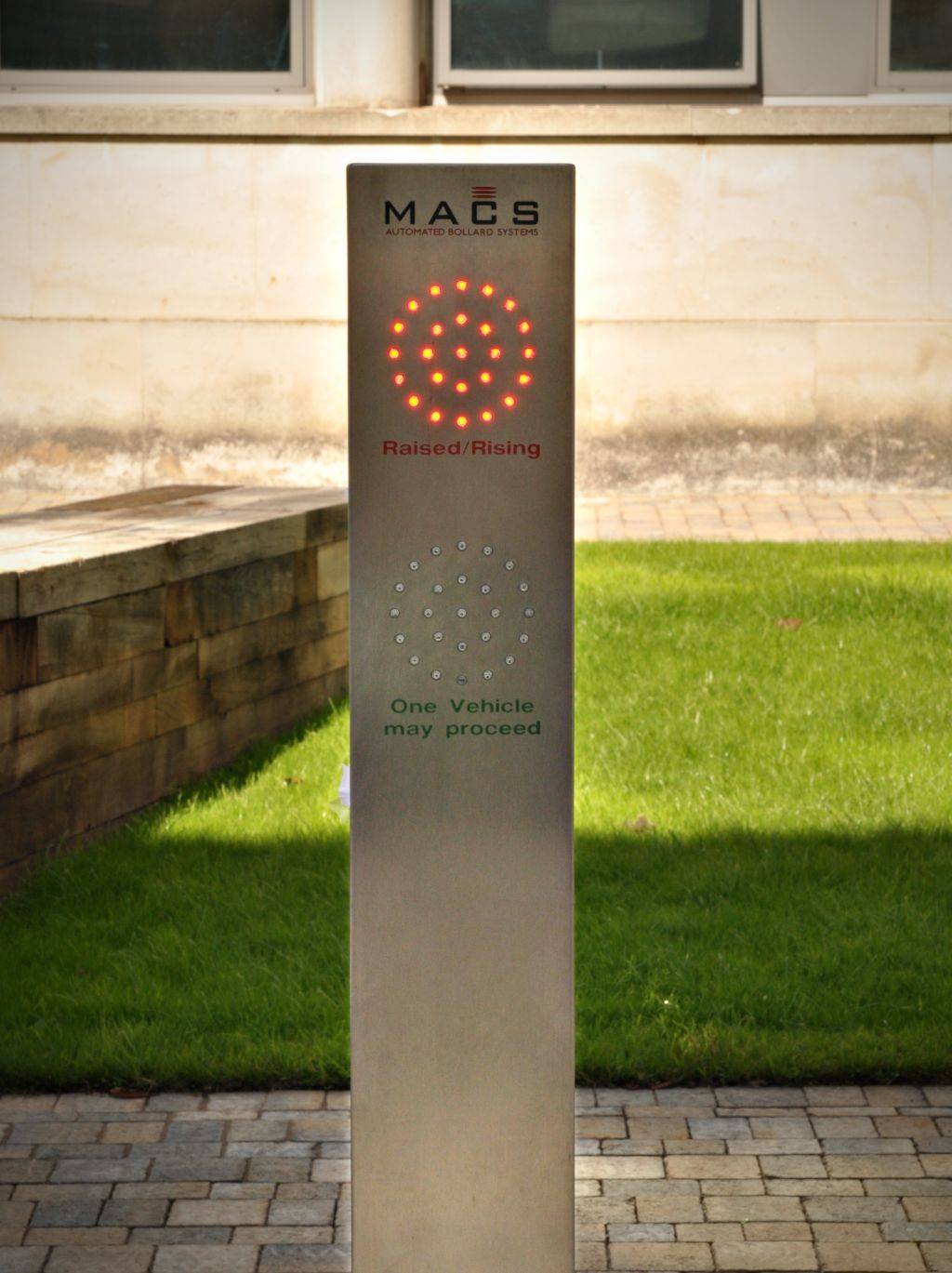

Stainless steel traffic indicator post.

Features and benefits:

  • A bespoke fitted sign with logo and wording is available if required.
  • Twin integrated LED clusters, uses a 24V power supply.
  • A single light cluster contains 25 individual 6.35 mm diameter LEDs.
  • Required to be concrete fixed (500 mm deep) into the ground.
  • The product can additionally be painted in a RAL colour.

General information

Color

RAL coated

Features

Two integrated LED clusters each containing 25 individual 6.35 mm diameter LED's, requires to be concrete fixed into the ground

Finish

stainless steel (RAL painted option available)

Material

Stainless steel

Shape

Cylinder

Size

150 x 2100 mm

Uniclass 2015

Pr_40_10_77_72 Road traffic signsPrimary

CAWS

N91/315 Posts for road traffic signs

Specification data - Road traffic signs

Product Reference

TIAC 1 Traffic Indicator Post

Colour/ Finish

RAL coated

Consult manufacturer and insert requirement.

Stainless steel

Standard.

Signage

Not required

Bespoke fitted sign

Can accommodate logo and wording. Available upon request, consult manufacturer for details.

Standard product features

Size (h x w):

2100 x 150 mm.

Material:

Stainless steel.

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
