Thermostatic Tubular Heater - ECOT

Description

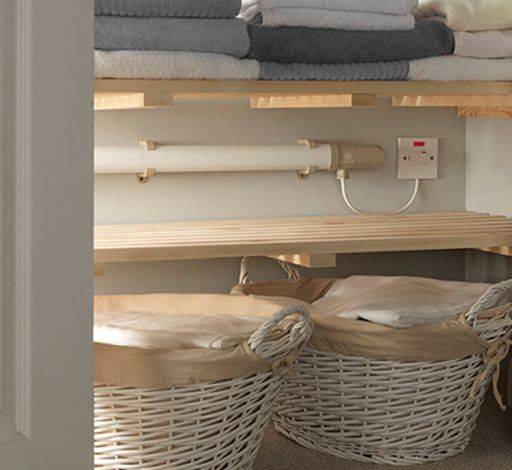

Thermostatic tubular heaters with low output and an adjustable heat source suitable for a range of applications, from airing cupboards to shop windows and greenhouses.

Features and benefits:

  • Available in six outputs.
  • Discreet mounting brackets for walls or floors.
  • Reversible left or right hand cable entry.
  • IPX4 rated.
  • Even heat distribution across heater body.

Supplied with a two year warranty.

General information

Color

White and Grey

Material

Tubular constuction encloses heating element with thermostatic controls

Size

81 x 408 x 80 mm

WarrantyDescription

1 year

Uniclass 2015

Pr_70_60_36_74 Room heatersPrimary

CAWS

V90/590 Equipment

Specification data - Room heaters

Product Reference

ECOT

Type

ECOT1FT

Loading: 40 W. Length: 408 mm.

ECOT2FT

Loading: 80 W. Length: 713 mm.

ECOT3FT

Loading: 120 W. Length: 1018 mm.

ECOT4FT

Loading: 160 W. Length: 1323 mm.

ECOT5FT

Loading: 2000 W. Length: 1630 mm.

ECOT6FT

Loading: 240 W. Length: 1933 mm.

Standard product features

Size (h x d):

80 x 81 mm.

Technical characteristics:

  • Power controls: Adjustable thermostat allowing frost protection and output selection.
  • Thermostat controls: Rotary control.
  • Cable: 1.5 m fitted with plug.
  • Thermostat: Bimetallic.
  • Thermal cut out: Automatic reset.
  • Element: Coil.
  • Colour: White and grey.
  • Ingress protection rating: IPX4.
  • The maximum surface temperature of these units is 85°C rise over ambient.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2015

1

1.3
IFC

IFC2X3

1

1.3
IFC

IFC2X3

1

1.3
Download now from NBS National BIM Library

Third party certifications

  • CE
