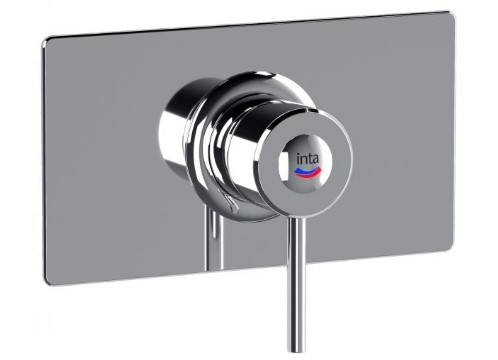

Thermostatic Sequential Lever Operated Concealed Shower Valve TMV3
Verified by manufacturer 5 months ago
SanCeram Sequential Lever Operated Thermostatic Concealed Shower Valve.
Application
Suitable for wall-mounting in shower areas.
Description
SanCeram sequential lever operated thermostatic concealed shower valve.
Features and benefits:
- Sequential lever operation for combined control of temperature and flow.
- Single piece thermal cartridge.
- Factory set at 43°C to prevent scalding.
- Fail safe on hot and cold supplies.
- Concealed installation.
- Supplied with 6 litre per minute flow regulators.
- HBN compliant
- TMV3 and WRAS approved.
- One year guarantee.
- HBN 00-10 Part C compliant ref: TM 1
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Shape | Circle |
Width | 206 mm |
Height | 112 mm |
Warranty description | One year |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units S90/680 Thermostatic mixing valves S90/680 Thermostatic mixing valves N13/42 Shower mixer valves |
Specification data - Shower thermostatic valves
Approvals | TMV3 and Water Regulations Approval Scheme (WRAS)-approved. |
Form | Concealed wall-mounted thermostatic shower mixer valve. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 14 L/ min at 85°C at 4 bar.Guidance for specification option:
Manufacturer guidanceWith regulator fitted. |
Water supply temperature (maximum) | 41°C. |
Integral accessories | 6 L/min. flow regulator. |
Diameter | 50 mm. |
