Description

12 V electric self-regulating heated towel bars suitable for use in wet locations.

Features and benefits:

  • Concealed wiring with elastomer insulation and self-regulating core.
  • Constant temperature maintenance: automatically adjusts power output in response to rail temperature changes, with no risk of overheating.
  • Maximum temperature: 45°C (no towel); 52°C (under towel).
  • Can be mounted under tiles or retrofitted over tiles.
  • 12 V separated extra-low voltage (SELV) safe for installation in wet areas.
  • Suitable for smaller bathrooms where space is a consideration.
  • Mounting system allows even spacing of multiple bars and provides cable management.
  • Range of colours and finishes available.
  • Range of control options including wireless and remote (specified separately).

General information
Color

Chrome

Finish

Polished

Material

304 grade stainless steel

Size

900 x 38 x 100 mm

WarrantyDescription

5 year

Uniclass 2015
Electric heated towel rails (Pr_70_60_36_26)Primary
Specification data - Electric heated towel rails
Product Reference

ThermoSphere Towel Bars

Configuration

Double-ended, curved, flat profile, 700 mm

Double-ended, curved, round profile, 700 mm

Double-ended, straight, round profile, 450 mm

Double-ended, straight, round profile, 632 mm

Double-ended, straight, square profile, 450 mm

Double-ended, straight, square profile, 632 mm

Double-ended, straight, square profile, 832 mm

Single-ended, straight, round profile, 400 mm

Single-ended, straight, round profile, 600 mm

Single-ended, straight, square profile, 400 mm

Single-ended, straight, square profile, 600 mm

Vertical, straight, round profile, 900 mm

Colour/ Finish

Antique bronze

Brushed brass

Brushed stainless steel

Champagne gold

Matt black

Polished stainless steel

Bespoke

Consult manufacturer for options and insert requirements.

Towel bar mounting system

Required

Not required

Control

Not required

Boost switch

To be specified separately.

ThermoSphere dual control

To be specified separately.

Accessories

None

12 V transformer, 10–60 W

12 V transformer, 35–105 W

Extended spigot for single ended rails

Retrofit dress ring, round

Retrofit dress ring, square

Towel bar spigot (double)

Required for use with towel bar mounting system for all double-ended models.

Standard product features

Material:

1.4301 (304) grade stainless steel.

Product Options

Configuration:

- Double-ended, curved, flat profile, 700 mm:

  • Depth from wall (maximum): 100 mm.
  • Profile (h x w): 40 x 18 mm.
  • Output: 21 W.
  • Two standard fixing studs included.
  • Towel bar spigot required for mounting system installation (see Accessories).

- Double-ended, curved, round profile, 700 mm:

  • Depth from wall (maximum): 100 mm.
  • Profile (diameter): 40 mm.
  • Output: 15 W.
  • Two standard fixing studs included.
  • Towel bar spigot required for mounting system installation (see Accessories).

- Double-ended, straight, round profile, 450/ 632 mm:

  • Depth from wall: 100 mm.
  • Profile (diameter): 32 mm.
  • Output: 17 W (450 mm); 18 W (632 mm).
  • Two standard fixing studs included.
  • Towel bar spigot required for mounting system installation (see Accessories).

- Double-ended, straight, square profile, 450/ 632/ 832 mm:

  • Depth from wall: 100 mm.
  • Profile (h x w): 40 x 18 mm.
  • Output: 17 W (450 mm); 23 W (632 mm); 30 W (832 mm).
  • Two standard fixing studs included.
  • Towel bar spigot required for mounting system installation (see Accessories).

- Single-ended, straight, round profile, 400/ 600 mm:

  • Depth from wall: 100 mm.
  • Profile (diameter): 32 mm.
  • Output: 17 W (400 mm); 18 W (600 mm).
  • Fixing spigot and stainless dress ring included.

- Single-ended, straight, square profile, 400/ 600 mm:

  • Depth from wall: 100 mm.
  • Profile (h x w): 32 x 32 mm.
  • Output: 17 W (400 mm); 18 W (600 mm).
  • Fixing spigot and stainless dress ring included.

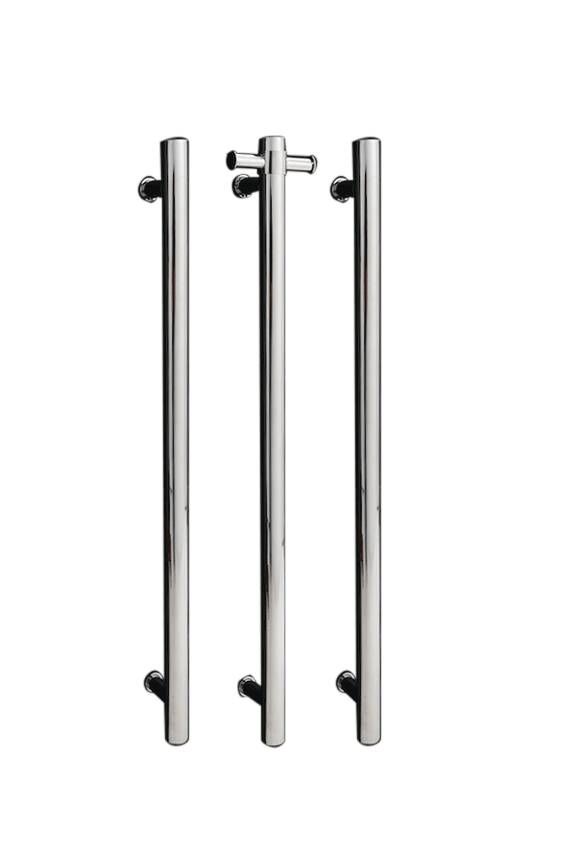

- Vertical, straight, round profile, 900 mm:

  • Depth from wall: 100 mm.
  • Profile (diameter): 38 mm.
  • Output: 30 W.

Towel bar mounting system:

  • Size (h x w x d): 1000 x 120 x 12 mm.
  • Towel bar spigot (single): 55 mm.
