ThermoSphere Timber Insulation Boards
Description

Extruded polystyrene (XPS) thermal insulation boards for use with ThermoSphere underfloor heating.

Features and benefits:

  • Can be cut with normal hand tools.
  • 100% moisture and rot proof, suitable for use in bathrooms and wetrooms.
  • Helps prevent mould growth from moisture in bathrooms.
  • Can be installed on walls and floors.
  • Reduces heat loss into the substrate and increases heat-up times.
  • Improves the efficiency of underfloor heating by more than 50%.

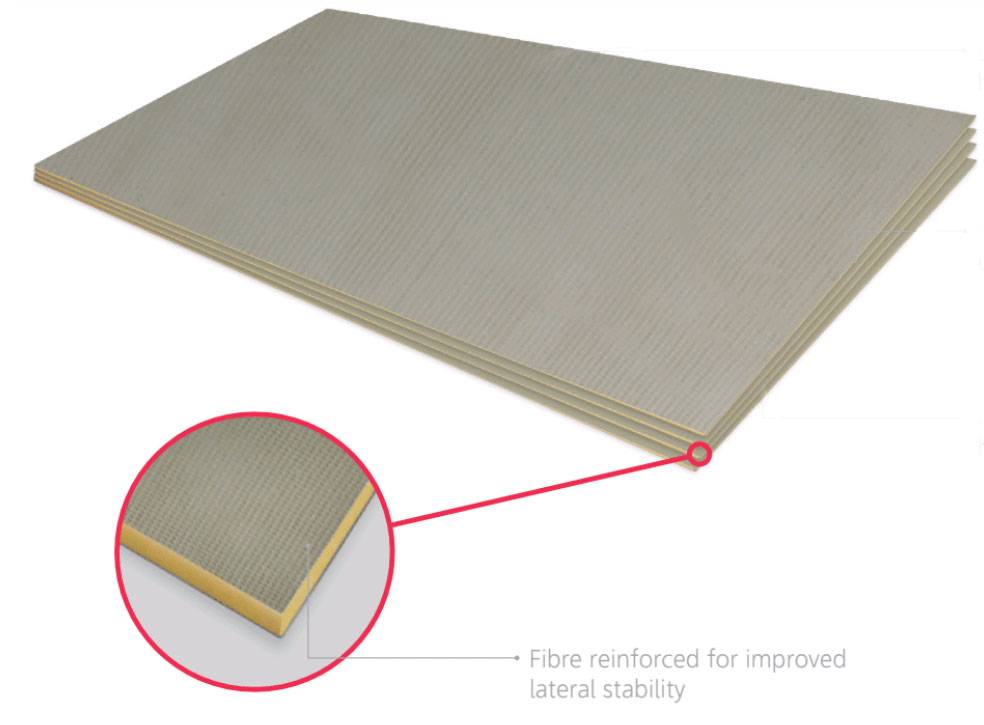

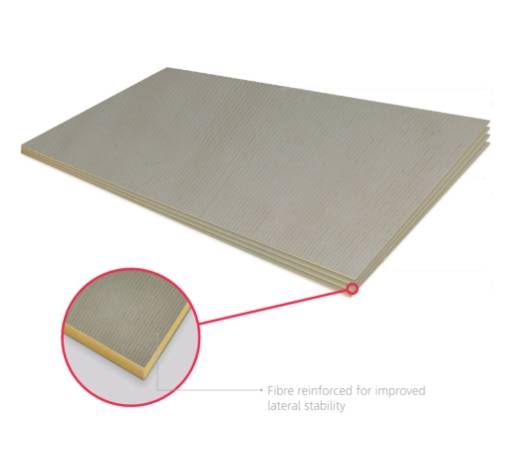

  • Fibre reinforced for improved lateral stability flexural strength.
  • Coated boards improve lateral and flexural strength of timber floors.
  • Lighter and stronger than ply.

General information

Features

Improves underfloor heating by 50%, adds rigidity and strength to timber substrates, 100% rot proof

Material

Timber

Shape

Rectangle

Size

6 x 1.2 x 0.6 mm

Uniclass 2015

Pr_25_71_63_29 Extruded polystyrene (XPS) boardsPrimary

CAWS

M40/27 Intermediate substrate

M40/470 Intermediate substrate

Specification data - Extruded polystyrene (XPS) boards Enhanced data

Standard product features

Size (l x w):

1200 x 600 mm.

Product Options

Type:

- Concrete floor insulation board:

  • Thermal conductivity (to EN 13164): 0.3 W/m·K.
  • Compressive strength (to EN 1606): 0.25 N/mm².
  • Water absorption (to EN 1606): 0.3% by volume.

- Timber floor insulation board:

  • Thermal conductivity (to EN 13164): 0.3 W/m·K.
  • Compressive strength (to EN 1606): 0.3 N/mm².
  • Water absorption (to EN 1606): 0.6% by volume.
  • Foam core density: 36 kg/m³.

Digital objects
Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
