ThermoSphere Membrane Heating Cables

Name: ThermoSphere Membrane Heating Cables
Brand: iuEVH4hZ3s4eEkD7W4eHEq
SKU: qSrafdY2RgHSRi6mjqJynu

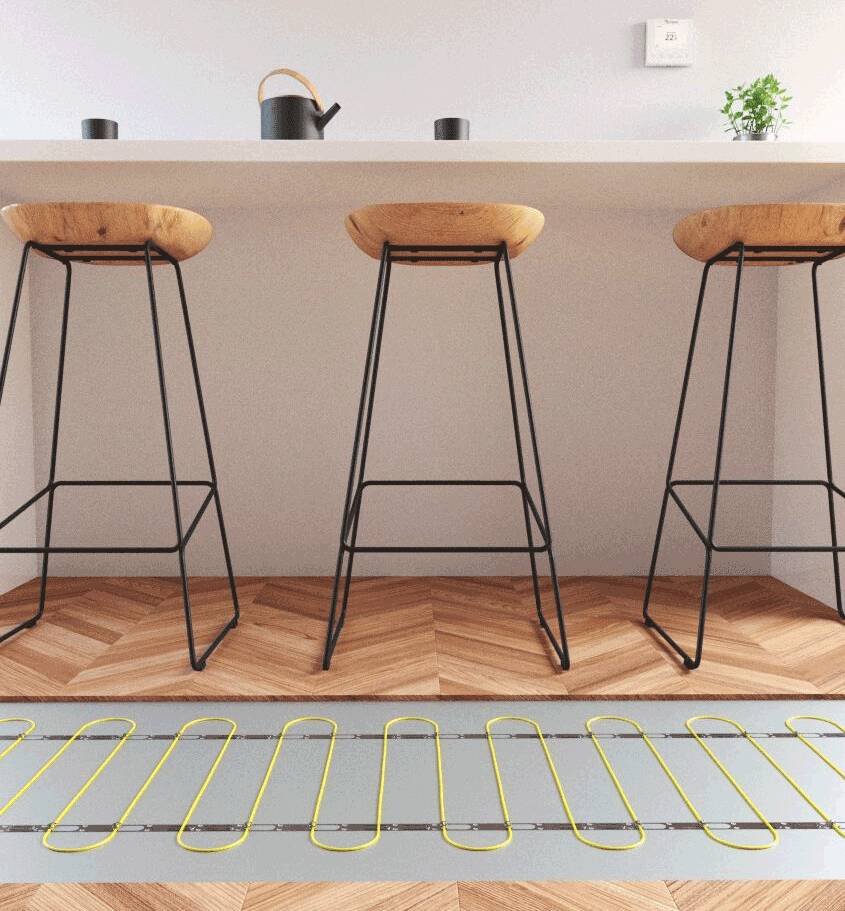

Underfloor heating cable designed for installation within the screed layer of new builds or renovation projects where floor height is not an issue.

Jump to:

+44 (0) 800 019 5899 www.thermosphere.com

Application

Suitable for use as underfloor heating with:

Timber substrate.

Heated wetrooms.

Single or double ply over a ceiling void.

Anhydrite based screed.

Insulated concrete screed.

Description

Combined underfloor heating and uncoupling system suitable for use with tile and stone floors.

Features and benefits:

Robust - suitable for use in high traffic, heavy-use areas; the stud structure transfers the load to the sub floor without risking cracks.

Heating cables can be laid with variable spacing depending on required output.

Uncoupling layer neutralizes the stress caused by different rates of expansion and contraction in a tiled floor, which reduces the risk of tile delamination and cracking.

Studs and fleece backing in the membrane allow water vapour to escape effectively, allowing for tiling over a substrate that is not fully cured.

Can also be installed on walls and sealed with the ThermoSphere waterproofing kit as part of a heated wetroom.

Range of control options including wireless and remote (specified separately).

Applications:

Suitable for use as underfloor heating with:

Timber substrate.

Heated wetrooms.

Single or double ply over a ceiling void.

Anhydrite based screed.

Insulated concrete screed.

General information

Color	Blue
Features	Decoupling membrane, easy waterproofing, carries electric underfloor heating cables
Material	Polyethylene
WarrantyDescription	Lifetime garanteed
Uniclass 2015	Pr_70_60_36_28 Electric sheet underfloor heating elementsPrimary
CAWS	T90/475 Underfloor heating systems

Specification data - Electric sheet underfloor heating elements Enhanced data

Product Options

Area:

Varies according to desired output and length of standard heating cable:

HDMC-012-0150: 1.15 m² (130 W/m²); 0.8 m² (195 W/m²).

HDMC-018-0225: 1.73 m² (130 W/m²); 1.15 m² (195 W/m²).

HDMC-025-0300: 2.31 m² (130 W/m²); 1.54 m² (195 W/m²).

HDMC-031-0375: 2.88 m² (130 W/m²); 1.92 m² (195 W/m²).

HDMC-037-0450: 3.46 m² (130 W/m²); 2.31 m² (195 W/m²).

HDMC-050-0600: 4.62 m² (130 W/m²); 3.08 m² (195 W/m²).

HDMC-061-0750: 5.77 m² (130 W/m²); 3.85 m² (195 W/m²).

HDMC-075-0900: 6.92 m² (130 W/m²); 4.62 m² (195 W/m²).

HDMC-100-1200: 9.23 m² (130 W/m²); 6.15 m² (195 W/m²).

HDMC-125-1500: 11.54 m² (130 W/m²); 7.69 m² (195 W/m²).

HDMC-150-1800: 13.85 m² (130 W/m²); 9.23 m² (195 W/m²).

HDMC-200-2400: 18.46 m² (130 W/m²); 12.31 m² (195 W/m²).

Output:

130 W/m²: Heating cable laid with a three-row spacing. Suitable for a primary heat source.

195 W/m²: Heating cable laid with a two-row spacing. Suitable for areas of higher heat loss e.g. conservatories.

Membrane:

Width: 1 m.

Length: 5 m (area 5 m²) or 15 m (area 15 m²).

Colour: Blue.

Heating cables:

Consult manufacturer's literature for further details (cable length, output and resistance data).

Accessories:

- Waterproofing paste, HDM-WP-01:

Coverage: Joins: 300 g/linear metre; Membrane: 4 kg/m².

Supplied in 5 kg buckets.

- Waterproofing tape, HDM-WT-01:

Coverage: 10 linear metres.

Supplied in 10 x 1 m rolls.

Digital objects

Platform	Compatible	Version	Certified to
IFC	-	1	2.1
Revit	-	1	2.1

Download now from NBS National BIM Library
