Application

Suitable for use as underfloor heating with:

  • Tiled floor finish on a subfloor.
  • Tiled floor finish on a timber substrate.
  • Tiled floor finish on a concrete substrate.
  • Tiled floor finish with a waterproofing tanking layer.
  • Vinyl floor finish with a self-levelling compound.
  • Engineered timber floor with a levelling compound.
  • Carpet and underlay on a timber substrate.

Consult manufacturer's literature for examples of floor build-ups.

Description

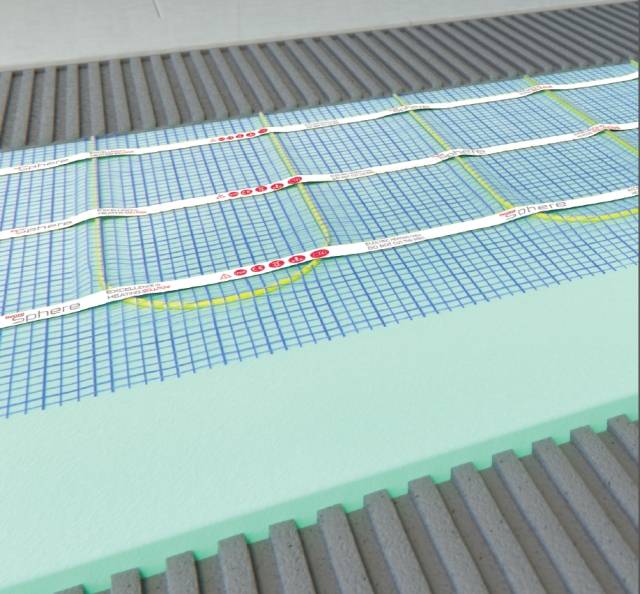

Underfloor electric heating mesh for use with tile and stone floors.

Features and benefits:

  • Heating cable is protected by the mesh so can be tiled over directly.
  • Self-adhesive mesh holds the mesh to the substrate for ease of self-levelling and tile fixing.
  • Includes TwistedTwin™ cable construction.
  • Eliminates electromagnetic fields (EMF).
  • Range of control options including wireless and remote (specified separately).
  • LayFlat low profile cold tail, 5 m long and 4 mm thick, allowing it to be concealed within the tile adhesive layer.
  • IP68 protection rating, safe for use in wet locations.

Applications:

Suitable for use as underfloor heating with:

  • Tiled floor finish on a subfloor.
  • Tiled floor finish on a timber substrate.
  • Tiled floor finish on a concrete substrate.
  • Tiled floor finish with a waterproofing tanking layer.
  • Vinyl floor finish with a self-levelling compound.
  • Engineered timber floor with a levelling compound.
  • Carpet and underlay on a timber substrate.

Consult manufacturer's literature for examples of floor build-ups.

General information
Color

Blue

Size

3.5 x 2000 x 500 mm

3.5 x 3000 x 500 mm

3.5 x 4000 x 500 mm

3.5 x 5000 x 500 mm

3.5 x 6000 x 500 mm

3.5 x 7000 x 500 mm

3.5 x 8000 x 500 mm

3.5 x 9000 x 500 mm

3.5 x 10000 x 500 mm

3.5 x 12000 x 500 mm

3.5 x 14000 x 500 mm

3.5 x 16000 x 500 mm

3.5 x 18000 x 500 mm

3.5 x 20000 x 500 mm

3.5 x 24000 x 500 mm

3.5 x 28000 x 500 mm

3.5 x 32000 x 500 mm

Uniclass 2015 Electric sheet underfloor heating elements (Pr_70_60_36_28)
Specification data
Product Reference

ThermoSphere Mesh

Area

Insert size or drawing reference. See 'Options' below for standard sizes.

Output

100 W/m²

150 W/m²

Suitable as a primary heat source in adequately insulated properties with 85% floor coverage.

200 W/m²

Faster heat up time, suitable for areas such as wetrooms and conservatories.

Control

Required

To be specified separately.

Not required

Standard product features

Width:

0.5 m.

Product Options

Area:

  • 100 W/m²: Standard sizes cover areas up to 10 m².
  • 150 W/m²: Standard sizes cover areas up to 16 m².
  • 200 W/m²: Standard sizes cover areas up to 12 m².

Output:

Consult manufacturer's literature for details of mesh size, output (Wattage) and resistance.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
Similar products from ThermoSphere
