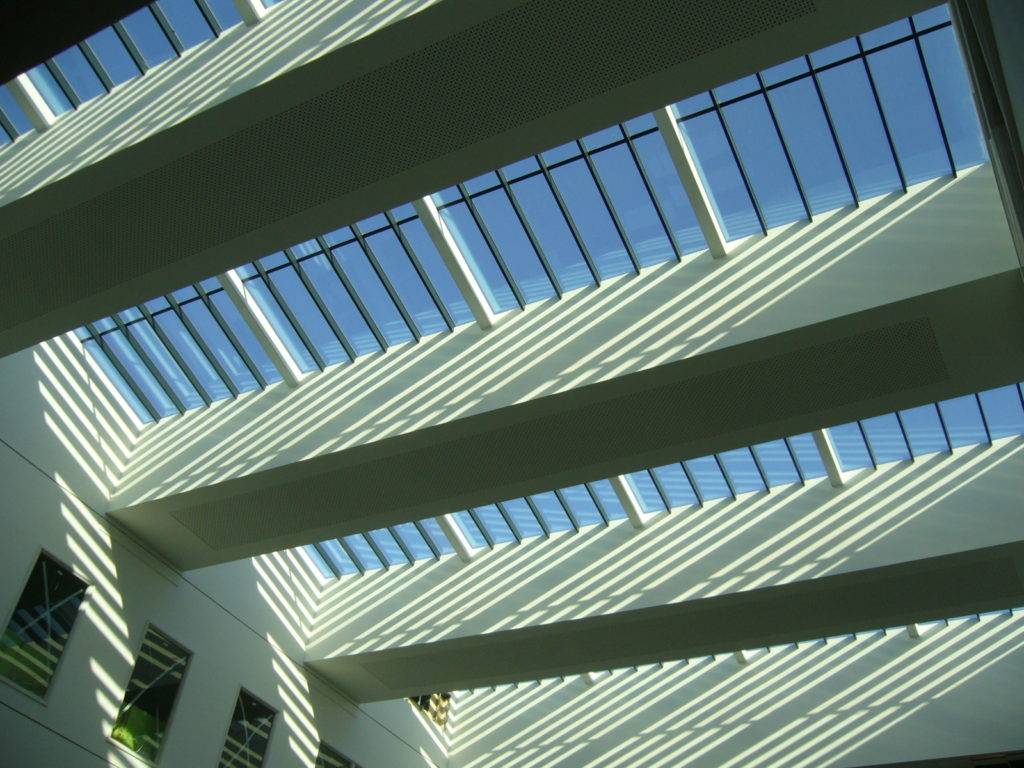

ThermGard Thermally Broken Patent Glazing - Rooflight System
Verified by manufacturer 1 day ago
ALM100/1
ALM100/1
Box-section patent glazing system for heated spaces for sloped glazing, skylights, rooflights and roof lanterns. Self-supporting and rafter glazing options available.
Application
Suitable for commercial, public, heritage, listed building, historic, museums, galleries, offices, universities, residential, schools, colleges, canopies, atriums and domestic rooflights, roof lanterns or skylights
Description
A neat 40mm wide box bar design, ThermGard provides a cost-effective alternative to more expensive sloped curtain walling systems without sacrificing aesthetics. Various slim-line box rafters are available to suit small or large spans. Alternatively the carrier rail may be used in conjunction with a wall plate or mounted on top of continuous timber eaves beam rafters – see our ThermGard-R glazing bars. A continuous screw on pressure plate with gaskets provides outstanding glass retention and a choice of decorative external covers are available to provide either contemporary glass roof appearance or a more traditional heritage style for roof lanterns on period buildings.
- Variable pitch down to 10 degrees
- Maximum span upto 4500mm
- Thermally broken for improved insulation and reduced risk of condensation
- Ventilation available
- Robust weather-tight abutments with building to prevent leaks
General information
Color | Silver Other Black Bronze Brown |
Finish | Powder-coated Mill |
Material | Aluminium Guidance for specification option: Aluminium alloy, 6063-T6 to BS 1474. Glass Guidance for specification option: Thermal glazing. |
Shape | Rectangle Elliptical Hexagon Octagon Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | H10/115 Patent glazing |
SKU Code | ALM100/1, ALM100/2, ALM100/3, ALM100/4, ALM100/5, ALM100/WF, ALM100/WF-HC |
Specification data - Rooflight systems
Classification data | |
Rooflight | Framed rooflights. |
Installation fasteners | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Trim | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Filler | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Hardware | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Operation | Manual. |
System accessories | Not required. End bar wing. GlazaTherm Top hung opening rooflights with cord. GlazaTherm Top hung opening rooflights with electric motors. GlazaTherm Top hung opening rooflights with factory fitted pole. |
Spacing | 600 mm (nominal). Guidance for specification option: Generally up to and including 750 mm, but wider centres can be accommodated in some circumstances; insert requirement. Manufacturer guidanceGlazing bar. |
Slope | 15º (minimum). Manufacturer guidanceGlazing bar. |
Bottom overhang lap | 75 mm (nominal). Manufacturer guidanceGlazing bar. |
Span | Single glazing: 3000 mm (recommended), Double glazing: 1900 mm (maximum). Guidance for specification option: Insert requirements. |
Form | Flat. |
FrameMaterial | Aluminium alloy, 6063-T6. Guidance for specification option: To BS 1474. |
Coating | Mill finish. Guidance for specification option: Standard. Polyester powder-coating. Manufacturer guidanceFrame finish. |
Colour | RAL. Guidance for specification option: Insert requirement. BS. Guidance for specification option: Insert requirement. Syntha Pulvin. Guidance for specification option: Insert requirement. Manufacturer guidanceFrame finish. A range of architectural finishes available, including polyester powder-coating to BS 6496 in standard RAL, Syntha Pulvin or BS colour ranges. |
Film thickness (minimum) | Not required. Guidance for specification option: Mill finish. 40 microns. Manufacturer guidanceFrame finish. |
Type | 24 mm low-e. Guidance for specification option: 1.5w/m2.k double glazed units consisting of 2 x 4 mm clear toughened glass with flush bottom edge and aluminium U-channel. 24 mm super low-e. Guidance for specification option: 1.1w/m2.k double glazed units consisting 2 x 4 mm clear toughened glass with flush bottom edge and aluminium U-channel. 28 mm low-e. Guidance for specification option: 1.5w/m2.k double glazed units consisting of 6.4 mm laminated, argon cavity and 6 mm toughened clear glass with stepped bottom edge. 28mm super low-e. Guidance for specification option: 1.1w/m2.k double glazed units consisting 6.4 mm laminate, argon cavity and 6 mm toughened clear glass with stepped bottom edge. 6 mm clear toughened glass. 6 mm solid polycarbonate. 6.4 mm clear laminated glass. 7 mm wired safety glass. 16 mm multi-wall polycarbonate sheet blown free of swarf and taped both ends. 25 mm multi-wall polycarbonate sheet blown free of swarf and taped both ends. Manufacturer guidanceGlazing or infill.
|
Construction | Single skin. Double skin. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium Guidance for specification option: Aluminium alloy, 6063-T6 to BS 1474. Glass Guidance for specification option: Thermal glazing. |
Recyclability | Approximately 85% of the product is aluminium which 100% recyclable, remaining 15% is gaskets and thermal liners. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 35 % |
Literature
Literature type
Typical Installation Details ThermGard Patent Glazing
Datasheet ThermGard Patent Glazing
Case studies

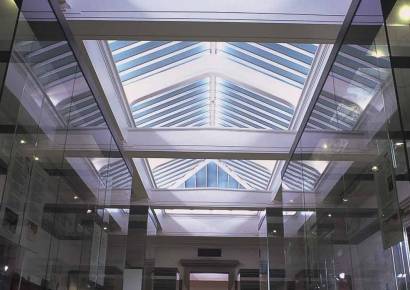

British Museum - Egyptian Gallery
