Thermfix VARIO Vertical Curtain Walling - E30
Curtain walling system.
For use in a range of curtain walling applications.

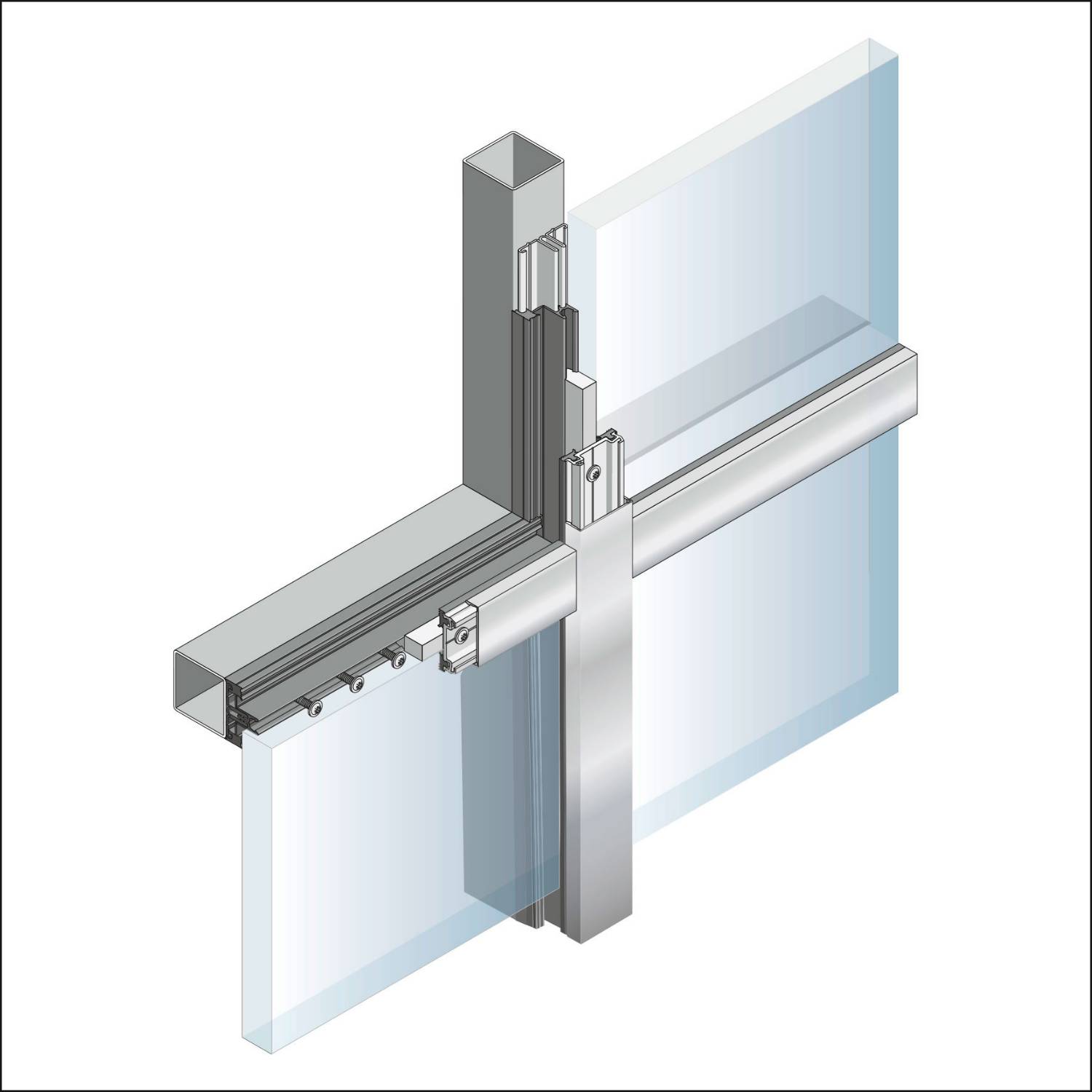

Forster thermfix vario is the profile system for curtain walls and sloped glazing in mullion-transom construction and dry glazing. The supporting static function of the system is assumed on the room side by arranged steel and stainless steel mullion and transom profiles which have narrow face widths of 45 or 60 mm.
The robust profiles with structural depths of 50 to 150 mm and wall thicknesses up to 4.5 mm permit constructions of large-surface dimensions and multi-storey curtain walls without any additional reinforcement.
Features and benefits:
The forster thermfix vario system is divided into three main application sectors:
Color | Other |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke Consult manufacturer and insert requirements. |
Width | Bespoke Consult manufacturer and insert requirements. |
Height | Bespoke Consult manufacturer and insert requirements. |
Uniclass | |
CAWS | H11/110 Curtain walling |
Framing | - |
Frame members | Steel. |
Cladding units | - |
Panels and facings | - |
MaterialConsult manufacturer and insert requirements. | - |
Wind loadResistance to wind load according to EN 12179: | Up to 3 kN. Safety load 4.5 kN. |
Air permeabilityAir permeability according to EN 12153: | AE (>600). |
Sound insulationSound insulation (EN ISO 140-3): | Rw up to 45 dB. |
Impact resistanceImpact resistance according to EN 14019: | E5 / I5. |
Bullet resistance | FB4 NS. |
Fire performance | E30. |
Reaction to fireTo EN 13501-1: | Class E. |
Profile width | 45 mm. 60 mm. |
Recyclability | 100% |
Recycled content | 5 % |
