Thermfix Light Curtain Walling 50 mm - No Fire Rating
Curtain walling system.

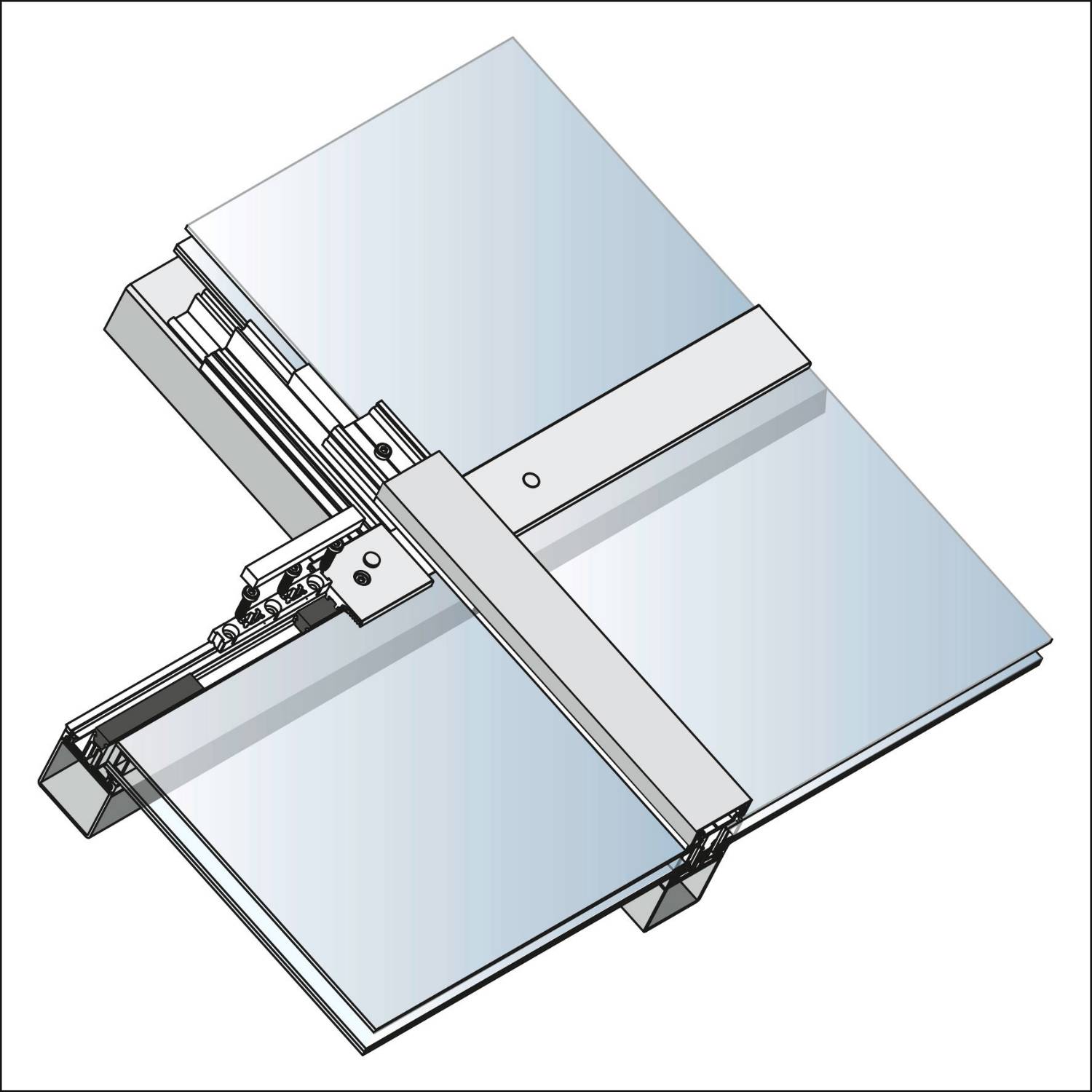

The Forster thermfix light makes it easy to mount a flush-fitting system on standard commercial steel and aluminium profiles, as well as on wooden constructions.
The system excels through easy and fast processing and is therefore very economical.
Freely selectable subframes gives planers and architects a large degree of freedom of design.
Features and benefits:
MaterialForster attachment profiles in steel or aluminium, pressure profiles in aluminium, cover profiles in aluminium or stainless steel. | Aluminium Steel |
Shape | Rectangle |
SizeBespoke, dependent on project requirements. | - |
Uniclass | |
CAWS | H11/110 Curtain walling |
Framing | - |
Frame members | Aluminium.Steel.Timber.Bespoke. |
Cladding units | - |
Glass unitsConsult manufacturer and insert requirements. | - |
Panels and facings | - |
MaterialConsult manufacturer and insert requirements. | - |
Thermal insulationConsult manufacturer and insert requirements. | - |
Fire performance | Not required. |
Impact resistance | Impact resistance according to EN 14019: I 5 (internal), E 5 (external). |
Thermal performance | Up to Uf > 0,97 [W/(m²·K)]. |
Reaction to fire | To EN 13501-1: class E. |
Resistance to wind load | Up to + 3.0 kN/m². |
Air permeability | AE. |
Recyclability | 100% |
Recycled content | 5 % |
