Description

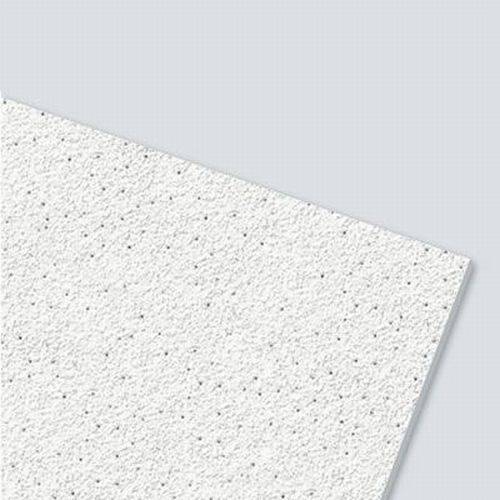

High quality sand textured ceiling tile with micro-perforations with excellent outstanding physically properties in fire resistance and acoustic performance.

For use with Knauf AMF suspended ceiling systems:

  • System A: Concealed.
  • System C: Exposed Ventatec grid system, demountable ceiling.
  • System F: Free span, with exposed or concealed suspension.
  • System I: Bandraster, with concealed cross sections.

Can be used with A-RWL, I-RWL, C-SRW shadow angles, I-SRW perimeter trims.

General information
Specification data
Product Reference

Thermatex Fine Stratos Microperforated

Type

600 x 600 x 15 mm thick, SK square edge

15 or 24 mm exposed Ventatec grid system.

600 x 1200 x 15 mm thick, SK square edge

15 or 24 mm exposed Ventatec grid system.

600 x 600 x 15 mm thick, VT15 rebated edge

15 mm exposed Ventatec grid system.

600 x 1200 x 15 mm thick, VT15 rebated edge

15 mm exposed Ventatec grid system.

600 x 600 x 15 mm thick, VT24 rebated edge

24 mm exposed Ventatec grid system.

600 x 1200 x 15 mm thick, VT24 rebated edge

24 mm exposed Ventatec grid system.

Anti-microbial treatment surface finish (Hygena)

Not required

Required

Standard product features

Fire safety:

BS EN 13501-1: Class A2-s1, d0.

Fire protection to BS 476-20 to -23 (maximum):

60 minutes.

Relative humidity (maximum):

95%.

Colour:

White, similar to RAL 9010.

Product Options

Type:

Other sizes and edge details are available for special order.

Sound absorption (15 mm thick tiles):

  • Rating to BS EN ISO 354: aw 0.60.
  • Sound absorption Class: C.
  • Noise reduction coefficient (NRC) to ASTM C 423-02a: 0.55.

Sound attenuation (15 mm thick tiles):

  • Rating to BS EN 20140-9 Dncw: 34 dB.
  • Sound absorption Class: C.

Weight:

15 mm thick tiles: 4.5 kg/m².

Hygena finish:

Available with a special anti-microbial treatment surface finish (Hygena), which prevents bacterial and fungal contamination of the tile.
