product no longer available -

Description

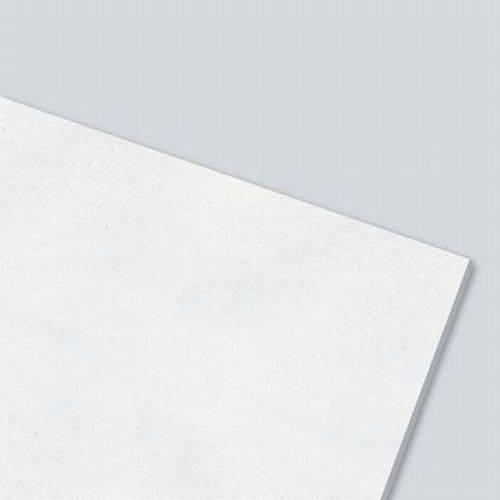

High performance mineral ceiling tile, manufactured from a specially perforated mineral board with an acoustic fleece facing.

The Alpha One has the highest possible sound absorption rating.

Features:

  • Designed for use with Knauf AMF suspended ceiling system C.
  • Perforations provide excellent sound absorption; fleece offers a smooth surface finish.

Can be used with A-RWL, I-RWL, C-SRW shadow angles, I-SRW perimeter trims.

General information
Features

Designed for use with Knauf AMF suspended ceiling system C

Perforations provide excellent sound absorption; fleece offers a smooth surface finish

Can be used with A-RWL, I-RWL, C-SRW shadow angles, I-SRW perimeter trims

Uniclass 2015 Mineral fibre infill units (Pr_35_93_13_53)
Specification data
Product Reference

Thermatex Alpha ONE

Type

600 x 600 mm, with SK (square) edge

15 or 24 mm exposed Ventatec grid system.

600 x 1200 mm, with SK (square) edge

15 or 24 mm exposed Ventatec grid system.

600 x 600 mm, with VT15 (rebated) edge

15 mm exposed Ventatec grid system.

600 x 600 mm, with VT24 (rebated) edge

24 mm exposed Ventatec grid system.

Standard product features

Fire safety:

BS EN 13501-1: Class A2-s1, d0.

Fire protection to BS 476-20 to -23 (maximum):

60 minutes.

Light reflectance (maximum):

85%.

Relative humidity (maximum):

95%.

Sound absorption:

  • Rating to BS EN ISO 354: aw 1.00
  • Sound absorption Class: A.
  • Noise reduction coefficient (NRC) to ASTM C 423-02a: 1.00.

Thickness:

24 mm.

Weight:

3.8 kg/m².

Colour:

White, similar to RAL 9010.

Product Options

Type:

Other sizes and edge details are available for special order.
