Description

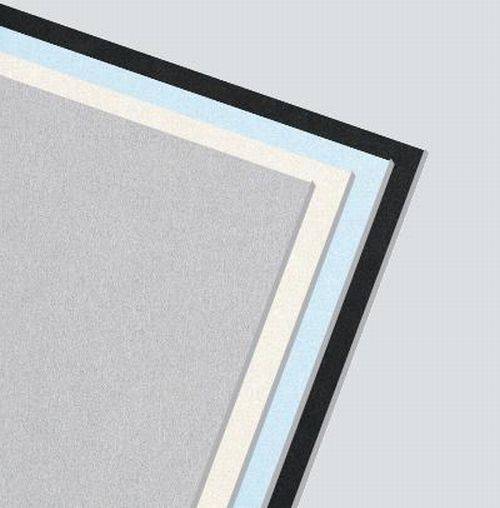

High performance mineral ceiling tile with Class A sound absorption, and a tissue facing.

Features:

  • Designed for use with Knauf AMF suspended ceiling system C.
  • Wet-felt mineral tile with physical properties to assist installation.

Can be used with A-RWL, I-RWL, C-SRW shadow angles, I-SRW perimeter trims.

General information
Features

Designed for use with Knauf AMF suspended ceiling system C

Wet-felt mineral tile with physical properties to assist installation

Can be used with A-RWL, I-RWL, C-SRW shadow angles, I-SRW perimeter trims

Uniclass 2015 Mineral fibre infill units (Pr_35_93_13_53)
Specification data
Product Reference

Thermatex Alpha Hygena

Type

600 x 600 mm, SK square edge

15 or 24 mm exposed Ventatec grid system.

600 x 600 mm, VTS 15 rebated edge

15 mm exposed Ventatec grid system.

600 x 600 mm, VTS 24 rebated edge

24 mm exposed Ventatec grid system.

600 x 1200 mm, SK square edge

15 or 24 mm exposed Ventatec grid system.

Anti-microbial treatment surface finish (Hygena)

Not required

Required

Standard product features

Fire safety:

Complies with BS EN 13501-1: Class A2-s1, d0.

Light reflectance (maximum):

85%.

Relative humidity (maximum):

95%.

Sound absorption:

  • Rating to BS EN ISO 354: aw 0.95.
  • Sound absorption Class: A.
  • Noise reduction coefficient (NRC) according to ASTM C 423-02a: 0.90.

Thickness:

19 mm.

Weight:

3.0 kg/m².

Colour:

Standard: White, similar to RAL 9010.

Product Options

Hygena finish:

Available with a special anti-microbial treatment surface finish (Hygena), which prevents bacterial and fungal contamination of the tile.
