Thermal RockFloor®
Verified by manufacturer 2 months ago
High strength, dual-density, stone wool board for thermal insulation of floors.
Application

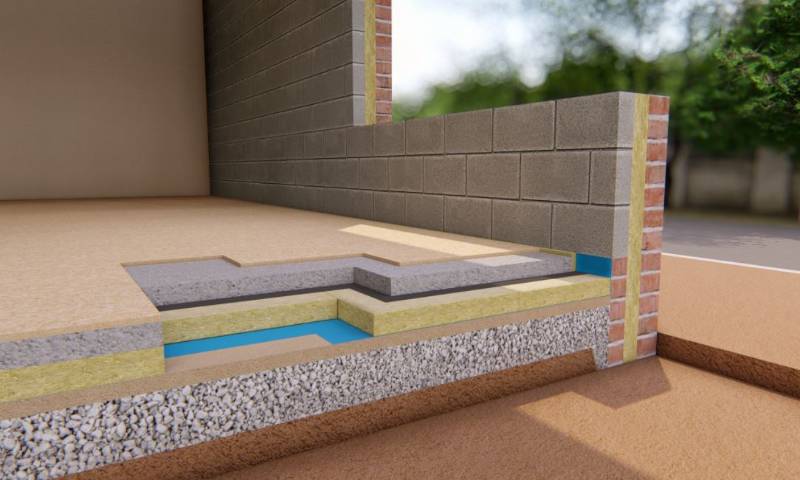

Thermal RockFloor® is a dual density insulation providing thermal performance for ground floors.
Description
Thermal RockFloor® is a high compressive strength, dual density, stone wool insulation board with a tissue face finish on the top surface, enabling compatibility with a wide range of installation methods. Designed for the thermal insulation of ground and suspended floors subject to normal floor loads arising in houses, offices, shops and similar areas. The dual density enables the insulation to be laid over a slightly uneven surface, with the lower density layer absorbing imperfections and the high density surface providing excellent point load resistance. Euroclass A1 non-combustible, water repellent and rot resistant.
Features and benefits:
- Offering fire, acoustic and thermal properties.
- Euroclass A1 non-combustible. ROCKFLOOR® boards can be used in conjunction with ROCKWOOL FLEXI® to construct a compartment floor, providing one hour of fire resistance combined with acoustic isolation.
- High compressive resistance - able to withstand typical loads that arise in dwellings, offices, shops and similar areas.
- Minimizes thermal and acoustic bridging.
- Compatible with a wide range of installation methods.
- CE marked to BS EN 13162:2012+A1:2015.
General information
Material | Mineral wool |
Shape | Rectangle |
Length | 1000 mm |
Width | 600 mm |
Height | 50 mm 80 mm 100 mm |
Uniclass | |
CAWS | E20/200 Proprietary underslab insulation E20/30 Underslab insulation K11/245 Cement bonded particleboard floating floor K11/215 Plywood floating floor K11/225 Particleboard floating floor K11/235 Oriented strand board floating floor M10/290 Floating construction M10/40 Floating construction M13/260 Floating construction M13/40 Floating construction |
Specification data - Mineral wool slab insulation
General requirements | Insulation products generally. |
Standard | To BS EN 13162; ISO 14001. |
Thickness | 50 mm.Guidance for specification option: Standard. 80 mm.Guidance for specification option: Standard. 100 mm.Guidance for specification option: Standard. 50–185 mm.Guidance for specification option: Insert requirements. Minimum order quantities apply; consult manufacturer for details. |
Facing | Tissue face finish on the top surface. |
Edges | Square. |
Thermal conductivity (maximum) | 0.038 W/m·K. |
Fire performance | To BS EN 13501-1, Euroclass A1.Guidance for specification option: Non-combustible. |
Accessories | Not required. 25 mm Rockfloor Acoustic at perimeter abutments. |
Size: | 600 x 1000 mm. Guidance for specification option: Width x length. |
Sustainability data
Country of material origin | United Kingdom |
Recyclability | Can be recycled Guidance for specification option: ROCKWOOL stone wool insulation is recyclable and can be transformed into new ROCKWOOL products. Please contact us for details of how we can work together to recycle waste ROCKWOOL stone wool material that may be generated during on-site installation. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 AECOsim | - | 1 |
 IFC | IFC2X3 | 3 |
 Vectorworks | - | 1 |
 ARCHICAD | - | 1 |
 Revit | Revit 2016 | 4 |
