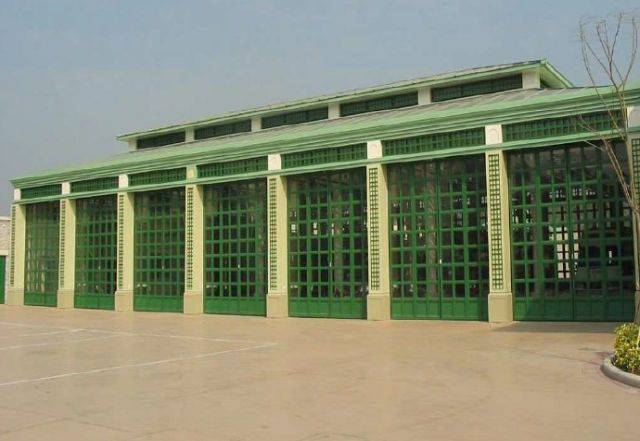

Thermafold 2000 Electric Bi-Fold Doors

Bolton Gate Company Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • BRE Certificate

    BRE Certificate

    Certificate type

  • dhf certificate

    dhf certificate

    Certificate type

Electrically operated bi-fold doors.

Jump to:
+44 (0)1204 871001 Website

Application

Designed for use in openings of up to 6000 mm wide and 6000 mm high, and is particularly suitable for applications where a bottom track needs to avoided, such as railway depots.

Description

The electrically-operated, insulated bi-folding door combines energy-saving qualities. It is designed for use in openings of up to 6000 mm wide and 6000 mm high, and is particularly suitable for applications where a bottom track needs to be avoided, such as railway depots. Its ease of operation allows the door to be manually-operated, unlike upward-moving doors such as sectional overheads and rolling shutters, particularly on larger openings.


The operation is simple and avoids the need for cables, springs, etc., thus avoiding high maintenance after installation. The door is sideways-opening, which means that the leading edge is in constant vision and less prone to damage from vehicles passing through the opening.


Features and benefits:

  • Door panels: constructed from double-skin steel sheets infilled with high-density insulating material. Panels are typically 40–65 mm thick and are manufactured in various designs to suit clients’ individual requirements. Partially or fully-glazed versions are available.
  • Seals: high-quality ethylene propylene diene monomer (EPDM) seals are fitted in-between the panels and at the jambs. Brush seals are fitted at the top and bottom.
  • Top track: galvanized steel inverted channel section, in which pulleys mounted on each leading edge run in and on.
  • Bottom support: the doors are supported on floor bearings mounted at the side behind each jamb.
  • Door arrangements: the standard arrangement comprises a pair of panels on each side, folding at 90 degrees to the opening. The door is also available as a single or a 1+2 configuration.
  • Ironmongery: handles are attached to each leading edge to allow manual operation in the event of power failure.
  • Operation: electrical operation is via two single-phase motors mounted on the top of each pair of panels, with a common control panel and operating buttons. Disconnection to manual operation is provided in the event of power failure. Other controls are available at extra cost.

General information

Color

A range of RAL colours available

-

Finish

Galvanized

Powder-coated

Plastisol

Other

Material

Steel

Galvanized steel with ethylene propylene diene monomer (EPDM) seals

Shape

Rectangle

Square

Width

Bespoke

These doors are bespoke, manufactured to suit the project requirements subject to the following:-


Single door maximum size: 12000mm wide x 8000mm high

Pair of doors maximum size: 24000mm wide x 8000mm high.



Height

Bespoke

These doors are bespoke, manufactured to suit the project requirements subject to the following:-


Single door maximum size: 12000mm wide x 8000mm high

Pair of doors maximum size: 24000mm wide x 8000mm high.

WarrantyDescription

One year

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary
Pr_30_59_34_14 Carbon steel gates
Ss_25_32_35_30 Folding gate systems

CAWS

null Loose laid gas retardant damp proofing

L20/530 Sliding folding external doors

L20/60 Doors

Product range

Bi-Fold Doors
Folding Doors

Specification data - Sliding door and partition sets

Performance

External.

Arrangement

1+2 configuration.

Available up to 4500 x 6000 mm.

Pairs of panels.

Standard, available up to 6000 x 6000 mm.

Single panel.

Available up to 3000 x 6000 mm.

Track system

Galvanized steel inverted channel section top track, in which pulleys mounted on each leading edge run in and on.

Door leaves

-

Construction

Double-skin steel sheets infilled with high-density insulating material.

Panels are typically 40–65 mm thick, and are manufactured in various designs to suit clients’ individual requirements.


Note: vision panels to be specified separately under accessories.

Double-skin steel sheets, solid.

Standard. Insert design requirements.

Double-skin steel sheets, partially glazed.

Insert design requirements.

Double-skin steel sheets, fully glazed.

Insert design requirements.

Finish and colour

Colorcoat HP 200.

Galvanized.

Standard.

Polyester powder-coated.

Insert requirement.

Operation

Manual.

Accessories

None.

Cut-outs for runway beams.

Double-glazed vision panels.

Ventilation louvres.

Wicket door.

Weight

40 kg/m².

Typical value, varies dependent on door construction.

Environmental information

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

95%

Recycled content

0 %
