Thermafire A2 Soffit - Mineral Wool Soffit Slab

Verified by manufacturer 8 days ago

Mayplas

Thermal and acoustic soffit insulation.

Jump to:
+44 (0)161 447 8320 Website

Application

Soffit applications.

Description

Thermal and acoustic soffit insulation manufactured with a foil face both sides.

Features and benefits:

  • Range of thicknesses (100 and 150 mm).
  • Foil Facings.
  • Standard 600 x 600 mm slabs can be cut to size on site.
  • Permits design of thermal performance to suit the construction.
  • Provides an effective vapour barrier and prevents fibre migration.
  • Flexibility to suit site needs.
  • Mayplas can supply fixings for Thermafire A2 Soffit. These consist of the fixing suitable for both masonry and timber frame applications and a 50 mm outside diameter washer (sold separately).

General information

Color

Silver

Material

Mineral wool

Shape

Square

Length

600 mm

Width

600 mm

Height

100 mm

150 mm

Manufacturer guidance

Thickness

Uniclass

Pr_25_57_06_53 Mineral wool insulationPrimary

CAWS

P10/15 Insulation fitted between rafters

P10/140 Insulation fitted between rafters

Specification data - Mineral wool insulation

Classification data

Form

Slab.

Density

Manufacturer's standard.

Facing

Foil faced both sides.

Thickness (minimum)

100 mm.
150 mm.

Width (nominal)

600 mm.

Thermal conductivity (maximum)

0.035 W/m·K.

Fire performance

Reaction to fire: A2, s1-d0.

Sustainability data

Material

Mineral wool

Literature

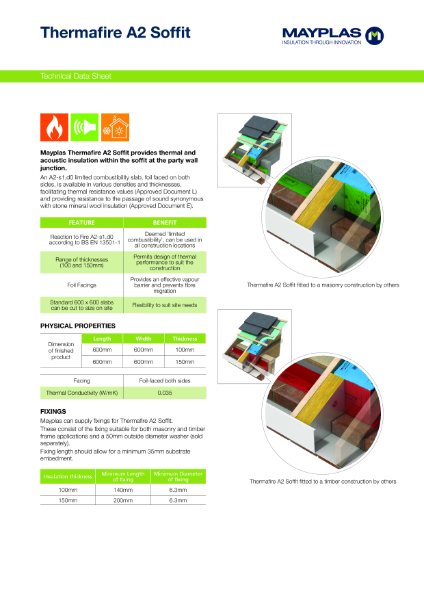

Mayplas Thermafire A2 Soffit Datasheet

Mayplas Thermafire A2 Soffit Datasheet
