Thelon Suspended Feature Lighting
Application

Suitable for listed buildings or contemporary commercial interiors.

Description

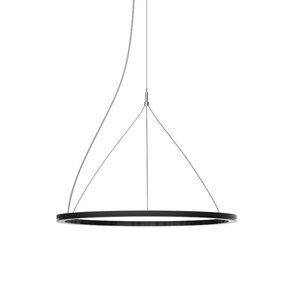

Circular suspended LED lighting with a transparent prismatic panel.


Features and benefits:

  • Minimalist design for blending in with the surrounding space.
  • A range of size and colour variations are possible.
  • The clear panel supplies glare-free light for maximum visual comfort in any space.
  • Comes assembled with suspension kit and power cable.
  • Remote driver is supplied.

General information

Finish

Polyester powder coat

Material

Aluminium profile with LEDs

Shape

Circular

Size

470 mm

560 mm

650 mm

740 mm

825 mm

Show more

Uniclass 2015

Pr_70_70_48_86 Suspended luminairesPrimary

CAWS

V90/45 Luminaires

V90/510 Luminaires

Specification data - Suspended luminaires Enhanced data

Standards

IEC 60596 -2-1 and IEC 60596-2-2.

Third-party certification

Measurement Certificate 0342/2018 and LM-79-08 Photometrics.

Luminaire description

Suspended, circular disk, transparent.

Classification

-

Electric shock

Low voltage (<1000V).

Ingress protection (minimum)

To BS EN 60529, IP20.

Suitability for direct mounting on normally flammable surfaces

Not suitable for direct mounting on normally flammable surfaces.

Circumstances of use

Normal.

Rated maximum ambient temperature

25°C.

Supply circuit conductor connections

Push terminal.

Screw terminal.

Nominal voltage

220–240 V.

Luminaire power factor

0.98.

LED luminaires

-

Performance standards

EN 13032-1.

Safety standard

IEC EN 60598-1.

Initial LED luminaire efficacy (minimum)

93 lm/W.

Wattage

38W/ 3033 lm up to 143 W/ 13342 lm.

Colour temperature

3000K.

4000K.

Colour rendering index (Ra)

80.

90.

>90.

Beam angle

135°.

Useful life

100 000 hours (L80B20).

Dimming protocol

DALI Dimming.

Non-dimming.

Standard.

Accessories

Not required.

Suspension Cable.

Rosette.

Product Reference

Thelon Suspended

Control gear position

Integral within luminaire.

Duration of emergency mode (minimum)

No emergency.

0 hours.

Optics

Microprismatic diffuser.

Colour

Black.

White.

RAL.

Insert requirements.

Transverse

Meeting the Chartered Institution of Building Services Engineers (CIBSE), Society of Light and Lighting (SLL) and BCO Guide to Lighting Standards.

<18.6.

Longitudinal

<18.6.

Efficiency

94%.

Frequency

50–60 Hz.

Upward light output ratio (ULOR)

55%.

Downward light output ratio (DLOR)

45%.

Output direction

Direct/ indirect.

Environmental information

Recyclability

Frame and packaging.

-

Recycled content

Aluminium and packaging.

-
