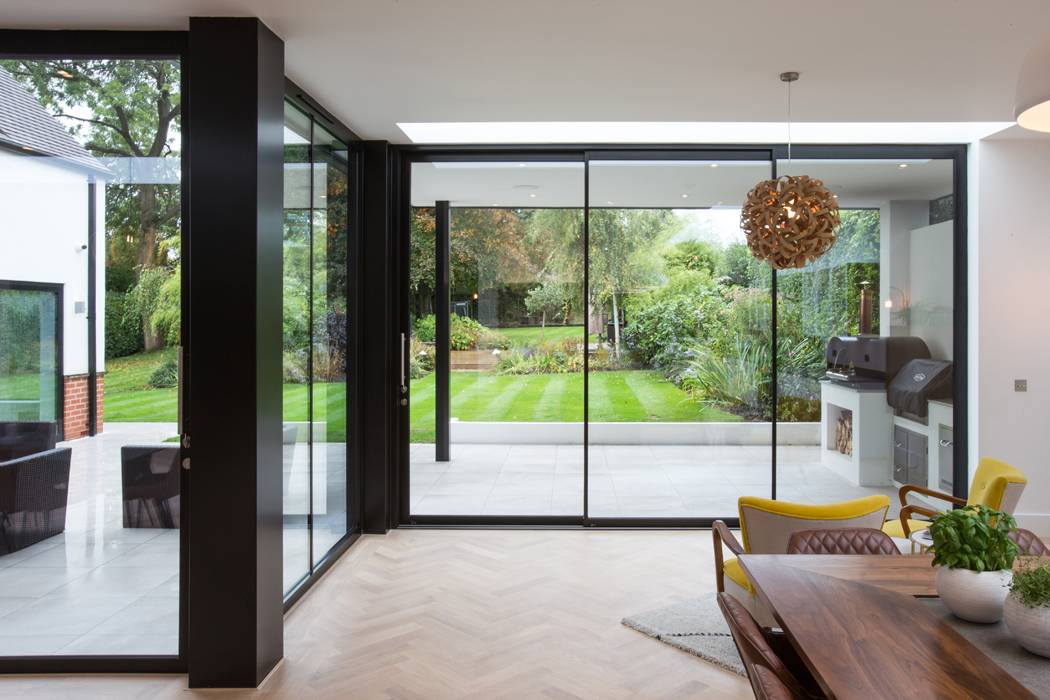

theEDGE2.0 sliding doors

Verified by manufacturer 4 months ago

IDSystems

Award-winning, premium quality ultra-slim aluminium sliding doors with incredibly narrow 20mm intermediate frames and huge glazed panels up to 3m wide, perfect for making the most of the view out.

Jump to:
+44 (0)1603 408804 Website

Application

Typically utilised for larger apertures on domestic or light commercial projects, including urban extensions, contemporary additions to period renovations or the grandest of Grand Designs style new-build homes.

Description

The result of more than 20 years of sliding door design and development, theEDGE2.0 is IDSystems ultra-slim sliding door system that features incredibly thin intermediate sight lines of just 20 mm.


The advanced technology of this sliding door system has enabled us to reduce the frame width whilst maintaining the glass pane size, smooth operation and ease of use.


The large glass panels and slim sight lines are perfect for any project, whether you are in a rural location and wanting to make the most of the views or an urban spot looking to maximize the amount of light you let in – at the same time maintaining high security, severe weather rating and product reliability.


Versatility in design – with different configurations, bespoke sizes and a vast palette of colours to choose from, this sliding door system can be tailored to suit the most demanding project needs.

Available in a range of track options, in either double or triple glazing, from 2 metres to 24 metres, theEDGE2.0 has been designed to offer the perfect combination of aesthetic beauty and everyday practicality.


Features and benefits:


  • Intermediate sight lines of just 20 mm: A truly amazing slim sight line for sliding doors, which results in an incredible look.
  • Sleek frame: Aluminium profile remains close to the glass, maintaining a truly slim sight line from all angles.
  • Flush stacking panels as standard: One panel with slide completely behind the next.
  • Pocket sliding doors: Can be design to run on an extended track into a pocket behind the wall to create completely unobstructed openings when the panels are slid back.
  • Secured by Design™: Designed and installed to Police preferred specification.
  • PAS 24:2016: theEDGE2.0 meets and exceeds the requirements of the Building Regulations Approved Document Q.
  • Advanced engineering: Providing stunning appearance, straightforward installation and effortlessly smooth running.
  • Severe weather rating: Independently tested to 600Pa air permeability* and 300Pa water tightness*.
  • Extremely versatile: Panel widths from 800mm to 3000mm width.
  • Moveable corner posts: With extending tracks offering 100% clear opening.
  • High security multi-point locking: Far in advance of insurers’ demands and easy operation at waist height.
  • Available in over 200 colours: The choice is endless, allowing you to tailor the system to your design.
  • Multiple configurations available: With twin and triple track options, tell us what you require and it is made to your specification.
  • A range of handle options: Colour coded D handles as standard or upgrade to one of our hugely popular feature handles, available in stainless steel or powder coated in standard colours.
  • Panels available up to 2800 mm high: The sizes are completely bespoke so you do not need to compromise on your design with IDSystems.
  • Flush tracks available: To provide a level threshold with DDA compliance, with the added advantage of not compromising the system’s excellent weather rating.
  • Colour coded tread plates: Cover unused tracks with integral track cover plates.
  • Thermal performance, with overall system U-values from 1.2W/m²K† depending on configuration.


* Water tightness and air permeability test performance is dependent upon a number of factors including system configuration and panel sizes.


† Thermal performance achieved is dependent on glass specification.

General information

Color

Grey

Black

White

Brown

Silver

Show more

Manufacturer guidance

Anthracite Grey RAL 7016, matt, Slate Grey RAL 7015 matt and Graphite Black RAL 9011 matt (available as standard).


A choice of one of more than 200 optional colours including the full RAL Classic range and the popular DB703 textured finish also available.

Finish

Powder-coated

Material

Aluminium

Size

-

Manufacturer guidance

Maximum system size.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/60 Doors

L20/520 Sliding doors

Specification data - Sliding door and partition sets

Third-party certification

BSI Kitemark: Certificate No. 643635

Track system

Twin track.

Triple track.

Door leaves

-

Construction

Aluminium.

Finish and colour

Anthracite Grey RAL 7016 matt.

Graphite Black RAL 9011 matt.

Slate Grey RAL 7015 matt.

DB703 textured finish.

Manufacturer guidance

Anthracite Grey RAL 7016, matt, Slate Grey RAL 7015 matt and Graphite Black RAL 9011 matt (available as standard).


A choice of one of more than 200 optional colours including the full RAL Classic range and the popular DB703 textured finish also available.

Hardware

Colour coded D handles.

Guidance for specification option:

Standard.

Five-point mushroom bolts and claw lock with continuous locking bar.

Guidance for specification option:

Standard.

Manufacturer guidance

Colour coded 'D' handles as standard or upgrade to one of many feature handles, available in stainless steel or powder coated in standard colours. Consult manufacturer for details and insert requirements.

Accessories

None.

Flush track.

Moveable corner posts, 135°.

Moveable corner posts, 90°.

Plant-on panels.

Guidance for specification option:

Plant-on panels provide an alternative to fixed frames within sliding doors. They are fixed panels sit outside the track, reducing the required width of track, and are ideally suited for more exposed or rural locations.

Securable lift and slide.

Guidance for specification option:

Allows the lead door to be secured in place while partially opened.

Trickle vents.

Coating

Neutral anti-sun glass.

Obscure glass and Low-iron glass.

Self-cleaning glass.

Tinted anti-sun glass.

Type

Double glazed: Laminated glass.

Double glazed: Toughened glass.

Glazing method

Structurally bonded into frame.

Panel size

-

Manufacturer guidance

Width: from 800 up to 3000 mm. Height: up to 2800 mm. The maximum panel size is determined by the weight of glass and wind load, which is location specific.

FrameDepth

59 mm.

Rating

Water tightness: 300 Pa (Class 7a). Air permeability: 600 Pa (Class 3).

Tread

Aluminium tread plates cover unused elements of the track and outer-frame, providing a cleaner and more stylish end product.

Sustainability data

Country of product manufacture

United Kingdom
