Description

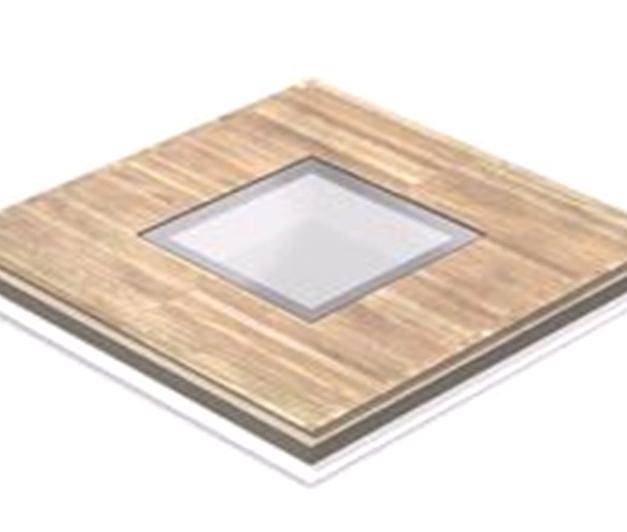

Aluminium framed walk-on floorlight, suitable for all floor constructions and coverings, e.g. timber, tiled and stone.

General information
Color

Ral 9005 Mat

Material

Grade 6063-T6 Extruded Aluminium

Shape

Rectangular

Uniclass 2015
Framed rooflights (Pr_30_59_72_31)Primary
Specification data - Framed rooflights
Product Reference

VAGI Walk-on Floorlight

Glazing

Manufacturer's standard

Special order

Insert requirement.

Frame -
FrameMaterial

Aluminium

Standard.

Special order

Insert requirement.

Frame finish

Anodized

Polyester powder coated

Standard, 60 microns (minimum).

Colour

Manufacturer's standard

Special order

Insert RAL or BS colour requirement.

Standard product features

Warranty:

  • One-year as standard.
  • Extended warranty available; consult manufacturer for details.

Product Options

Size:

Available 1000–1400 x 1000–1400 mm in stock sizes. Non-standard sizes and shapes are available on request.

Glazing:

  • Manufacturer's standard: 12 mm thick toughened, 1.52 mm PVB interlayer, 12 mm thick toughened outer.
  • Special order: Enhanced glazing specifications incorporating thermal, acoustic, security, light transmission, solar gain, Class 2 maintenance and decorative options are available, contact manufacturer for information.

Frame:

- Material:

Grade 6063-T6 extruded aluminium as standard. Different material specifications, stainless steel cladding, etc. are available, contact manufacturer for information.

- Colour (manufacturer's standard):

RAL 9005 matt.

Seals:

Structural and weather seal: Low modulus silicone sealant.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2016 1 2.0
IFC
- 1 2.0
