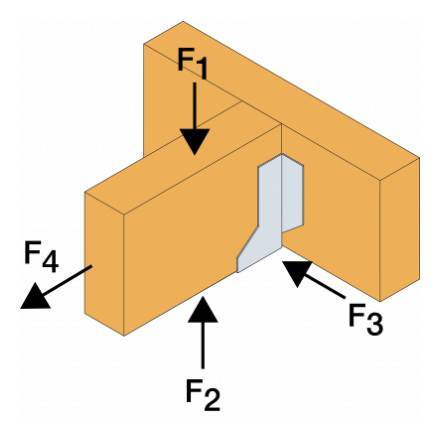

THA: Adjustable Truss Hanger

Verified by manufacturer 1 month ago

THA38

Simpson Strong-Tie Variant:
Third party certifications:
  • European Technical Approval (ETA)

    European Technical Approval (ETA)

    Certificate type

  • DoP

    DoP

    Certificate type

Truss hanger.

Jump to:
+44 (0)1827 255600 Website

Application

  • Solid sawn timber.
  • Engineered timber.
  • Trusses.
  • Joists.

Description

The THA is a one-piece joist hanger supporting trussed rafters and composite timbers from timber members. The THA can be installed with a number of fixing options, for greater load capacity.


Fetaures and benefits:

  • Available in seat widths from 38 mm to 100 mm.
  • The location tab allows easier alignment with the carrying member.
  • Choice of installation specifications to suit wrap-over or face fix.
  • Speed prongs enable the positioning of the hanger without nails before completing the installation.
  • Nailing schedules are stamped into the strap to provide the correct information to site operatives.
  • The distinctive wide strap enhances the performance of the critical part of the connection by increasing the nail spacing and providing greater bearing area on the supporting girder.

General information

Color

Silver

Finish

Galvanized

Material

Carbon steel

Shape

Other

Length

64.5 mm

Width

38 mm

44 mm

50 mm

75 mm

100 mm

Height

226 mm

223 mm

220 mm

232.5 mm

Uniclass

Pr_20_29_31_44 Joist hangersPrimary

CAWS

G20/65 Joist hangers

G20/791 Proprietary joist hangers

Specification data - Joist hangers

Third party certification

ETA.

Format

Face fixing.

Wrap over.

Material

Carbon steel.

Finish

Galvanized.

Sizes

64.5 x 38 x 226 mm.

Third party certifications

European Technical Approval (ETA)

European Technical Approval (ETA)

European Technical Assessment ETA-06/0270 of 2023/01/06

DoP

DoP

Declaration of Performance DoP-e06/0270

Literature

THA: Adjustable Truss Hanger Technical Data Sheet

THA: Adjustable Truss Hanger Technical Data Sheet
