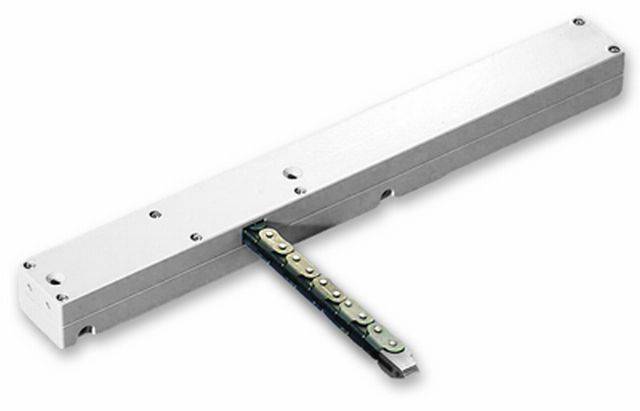

TGCO 24 Chain Actuator (24v)

Name: TGCO 24 Chain Actuator (24v)
Brand: hSCtgBhNgsP7JMTqwmMooa
SKU: 5vjzfK6hUxe6FMuWDgjz4k

SE Controls

24V DC chain actuator.

Jump to:

+44 (0)1543 443060 www.secontrols.com

Uniclass 2015

Pr_75_50_02_13 Chain actuatorsPrimary

CAWS

L10/10 Wood windows

L10/15 Wood windows

L10/20 Steel windows

L10/210 Wood windows

L10/25 Aluminium windows

L10/250 Wood windows

L10/260 Wood windows

L10/30 PVC-U windows

L10/31 PVC-U windows

L10/310 Steel windows

L10/315 Steel windows

L10/33 Proprietary windows

L10/330 Aluminium windows

L10/335 Aluminium windows

L10/350 PVC-U windows

L10/360 PVC-U windows

L10/390 Proprietary windows

L10/400 Composite windows

L10/410 Composite windows

L10/45 Rooflights

L10/460 Rooflights

L10/480 Roof windows

L10/490 Roof ventilators

L10/50 Roof windows

L10/650 Metal louvres

Product Reference

TGCO 24 15 ED Chain Actuator

TGCO 24 20 Chain Actuator

Tandem TGCO 24 20 Chain Actuator

TGCO 24 30 Chain Actuator

Tandem TGCO 24 30 Chain Actuator

Twin TGCO 24 30 Chain Actuator

TGCO 24 300 Chain Actuator

TGCO 24 450 Chain Actuator

Tandem TGCO 24 450 Chain Actuator

TGCO 24 500 Chain Actuator

Tandem TGCO 24 500 Chain Actuator

TGCO 24 700 Chain Actuator

Tandem TGCO 24 700 Chain Actuator

Colour

Grey (RAL 9006)

White (RAL 9016)

Stroke and window or vent height (minimum)

120/ 350 mm

TGCO 24 20, Tandem TGCO 24 20 and TGCO 24 15 ED.

189/ 225 mm

TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30.

194/ 300 mm

TGCO 24 300, TGCO 24 450 and Tandem TGCO 24 450.

200/ 400 mm

TGCO 24 20, Tandem TGCO 24 20 and TGCO 24 15 ED.

250/ 550 mm

TGCO 24 20, Tandem TGCO 24 20 and TGCO 24 15 ED.

258/ 355 mm

TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30

300/ 650 mm

TGCO 24 20, Tandem TGCO 24 20 and TGCO 24 15 ED.

309/ 600 mm

TGCO 24 300, TGCO 24 450 and Tandem TGCO 24 450.

327/ 445 mm

TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30.

350/ 750 mm

TGCO 24 20, Tandem TGCO 24 20 and TGCO 24 15 ED.

401/ 800 mm

TGCO 24 300, TGCO 24 450 and Tandem TGCO 24 450.

419/ 590 mm

TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30.

501/ 800 mm

TGCO 24 500, Tandem TGCO 24 500, TGCO 24 700 and Tandem TGCO 24 700.

511/ 725 mm

TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30.

600/ 1000 mm

TGCO 24 500 and TGCO 24 700.

603/ 855 mm

TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30.

700/ 1100 mm

TGCO 24 300 and Tandem TGCO 24 450.

800/ 1300 mm

TGCO 24 300 and Tandem TGCO 24 450.

810/ 980 mm

TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30.

Control

OS2 Control Panel

OS2 Modular Control System

OS2 PSU 30/ 60 A Control Panel

Switches

Auto/ Manual control switch

Key switch enclosure - open/ close

Open/ Close single way 10 amp

Open/ Close smoke vent switch

Open/ Close switch 10 amp

Open/ Close switch 2 way

Open/ Close window control switch

Sensors

Combined CO2 and temperature sensor

Internal temperature sensor

Outside temperature sensor

Rain sensor

Wind speed and direction sensor

7 day Timer

Accessories

TGCO 20 Pivot bracket set

TGCO (24) 30 Pivot bracket DF

TGCO (24) 30 Pivot bracket KF0

TGCO (24) 30 Pivot bracket KF15

TGCO (24) 100–700 Bottom hung pivot brackets

TGCO (24) 100–700 Top hung pivot brackets

TGCO Open in bracket 10 mm projection

TGCO Open in bracket 15 mm projection

TGCO Open in bracket flush mounting

TGCO Open in bracket set R0

TGCO Open in bracket set R10

TGCO Open in bracket set R15

Standard product features

Actuators:

TGCO 24 20: For natural ventilation applications.

Tandem TGCO 24 20: For natural ventilation applications. Designed for applications that require two locking points due to the window width.

TGCO 24 15 ED: For natural ventilation applications. Provides programmable strokes up to 353 mm. Control force, speed and opening distance, allows synchronised operation for up to four motors.

TGCO 24 30: For smoke and natural ventilation applications.

Tandem TGCO 24 30: For smoke and natural ventilation applications. Designed for applications that require two locking points due to the window width.

Twin TGCO 24 30: For smoke ventilation applications. Designed for applications that require two locking points due to the window width.

TGCO 24 300: For smoke and natural ventilation applications. The double chain actuator is suitable for large windows and some sloping vents.

TGCO 24 450: For smoke and natural ventilation applications. The double chain actuator is suitable for large windows and some sloping vents.

Tandem TGCO 24 450: For smoke and natural ventilation applications. The double chain actuator is suitable for large windows and some sloping vents. Designed for wide window openings which require two push points.

TGCO 24 500: For smoke and natural ventilation applications. The double chain actuator is suitable for large windows and some sloping vents.

Tandem TGCO 24 500: For smoke and natural ventilation applications. The double chain actuator is suitable for large windows and some sloping vents. Designed for wide window openings which require two push points.

TGCO 24 700: For smoke and natural ventilation applications. The double chain actuator is suitable for large windows and some sloping vents.

Tandem TGCO 24 700: For smoke and natural ventilation applications. The double chain actuator is suitable for large windows and some sloping vents. Designed for wide window openings which require two push points.

Product Options

Actuator control:

Contact SE Controls for recommendations.

Product Reference	TGCO 24 15 ED Chain Actuator TGCO 24 20 Chain Actuator Tandem TGCO 24 20 Chain Actuator TGCO 24 30 Chain Actuator Tandem TGCO 24 30 Chain Actuator Twin TGCO 24 30 Chain Actuator TGCO 24 300 Chain Actuator TGCO 24 450 Chain Actuator Tandem TGCO 24 450 Chain Actuator TGCO 24 500 Chain Actuator Tandem TGCO 24 500 Chain Actuator TGCO 24 700 Chain Actuator Tandem TGCO 24 700 Chain Actuator
Colour	Grey (RAL 9006) White (RAL 9016)
Stroke and window or vent height (minimum)	120/ 350 mm TGCO 24 20, Tandem TGCO 24 20 and TGCO 24 15 ED. 189/ 225 mm TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30. 194/ 300 mm TGCO 24 300, TGCO 24 450 and Tandem TGCO 24 450. 200/ 400 mm TGCO 24 20, Tandem TGCO 24 20 and TGCO 24 15 ED. 250/ 550 mm TGCO 24 20, Tandem TGCO 24 20 and TGCO 24 15 ED. 258/ 355 mm TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30 300/ 650 mm TGCO 24 20, Tandem TGCO 24 20 and TGCO 24 15 ED. 309/ 600 mm TGCO 24 300, TGCO 24 450 and Tandem TGCO 24 450. 327/ 445 mm TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30. 350/ 750 mm TGCO 24 20, Tandem TGCO 24 20 and TGCO 24 15 ED. 401/ 800 mm TGCO 24 300, TGCO 24 450 and Tandem TGCO 24 450. 419/ 590 mm TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30. 501/ 800 mm TGCO 24 500, Tandem TGCO 24 500, TGCO 24 700 and Tandem TGCO 24 700. 511/ 725 mm TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30. 600/ 1000 mm TGCO 24 500 and TGCO 24 700. 603/ 855 mm TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30. 700/ 1100 mm TGCO 24 300 and Tandem TGCO 24 450. 800/ 1300 mm TGCO 24 300 and Tandem TGCO 24 450. 810/ 980 mm TGCO 24 30, Tandem TGCO 24 30 and Twin TGCO 24 30.
Control	OS2 Control Panel OS2 Modular Control System OS2 PSU 30/ 60 A Control Panel
Switches	Auto/ Manual control switch Key switch enclosure - open/ close Open/ Close single way 10 amp Open/ Close smoke vent switch Open/ Close switch 10 amp Open/ Close switch 2 way Open/ Close window control switch
Sensors	Combined CO2 and temperature sensor Internal temperature sensor Outside temperature sensor Rain sensor Wind speed and direction sensor 7 day Timer
Accessories	TGCO 20 Pivot bracket set TGCO (24) 30 Pivot bracket DF TGCO (24) 30 Pivot bracket KF0 TGCO (24) 30 Pivot bracket KF15 TGCO (24) 100–700 Bottom hung pivot brackets TGCO (24) 100–700 Top hung pivot brackets TGCO Open in bracket 10 mm projection TGCO Open in bracket 15 mm projection TGCO Open in bracket flush mounting TGCO Open in bracket set R0 TGCO Open in bracket set R10 TGCO Open in bracket set R15
