TEVK25 - 25,000 mm²/m low-level ventilator
Verified by manufacturer 3 months ago

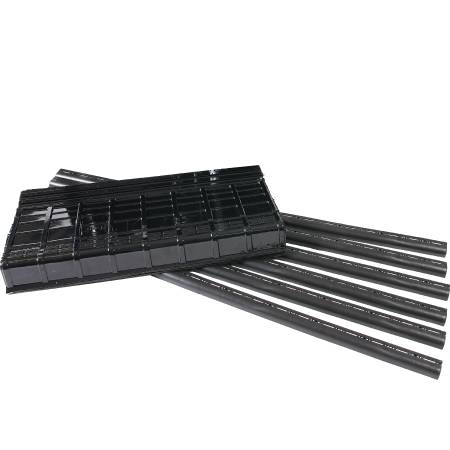

TEVK25 Eaves Skirts
TEVK25 Eaves Skirts
Eaves ventilation kit for warm roofs.
Application
For warm roof installations. To be used in conjunction with all Tapco Roofing products. Especially suitable for Tapco Slate Classic tiles.
Description
An unobtrusive method of providing ventilation in a range of eaves details, including those without a projecting soffit. Eaves Ventilators must be used with Rafter Ventilators to provide a continuous ventilation path from roof void to outside.
Features and benefits:
- Provides ventilation opening of 25 000 mm²/m.
- Quick and easy to install.
- Lightweight and durable.
- Compatible with all roof tile clips and eaves fillers.
- Does not effect slating/ tiling process.
- Gutter bracket spacers available to ensure correct gutter position and unrestricted airflow.
- Rafter roll available separately for this kit.
General information
Color | Black |
Finish | Natural |
Material | Polypropylene Guidance for specification option: Injection moulded polypropylene. |
Shape | Other |
Length | 6000 mm |
Width | 300 mm |
Height | 32 mm |
Warranty description | 40 year |
Uniclass | |
CAWS | H64/325 Eaves vents H67/325 Eaves vents H64/45 Ventilated eaves for warm roof construction H64/670 Ventilated eaves for warm roof construction H65/365 Eaves H62/345 Ventilated eaves with integrated grilles tray H65/345 Ventilated eaves – integrated grilles/ trays H61/345 Ventilated eaves with integrated grilles/ trays H60/345 Ventilated eaves with integrated grilles/ trays H62/355 Ventilated eaves with separated grilles/ trays H65/47 Eaves H62/47 Eaves H61/355 Ventilated eaves with separated grilles/ rays H65/355 Ventilated eaves – separated grilles/ trays H60/355 Ventilated eaves with separated grilles/ trays H60/47 Eaves |
Specification data - Reconstituted slate roof slope ventilation fittings
Form | Eaves skirt.Guidance for specification option: x10. |
Colour | Black. |
Dimensions | 6000 mm. Manufacturer guidanceNominal length: |
ExpectedLife | 25+ years. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
