Test Trolley with Pump

Verified by manufacturer 5 days ago

BROEN-LAB Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

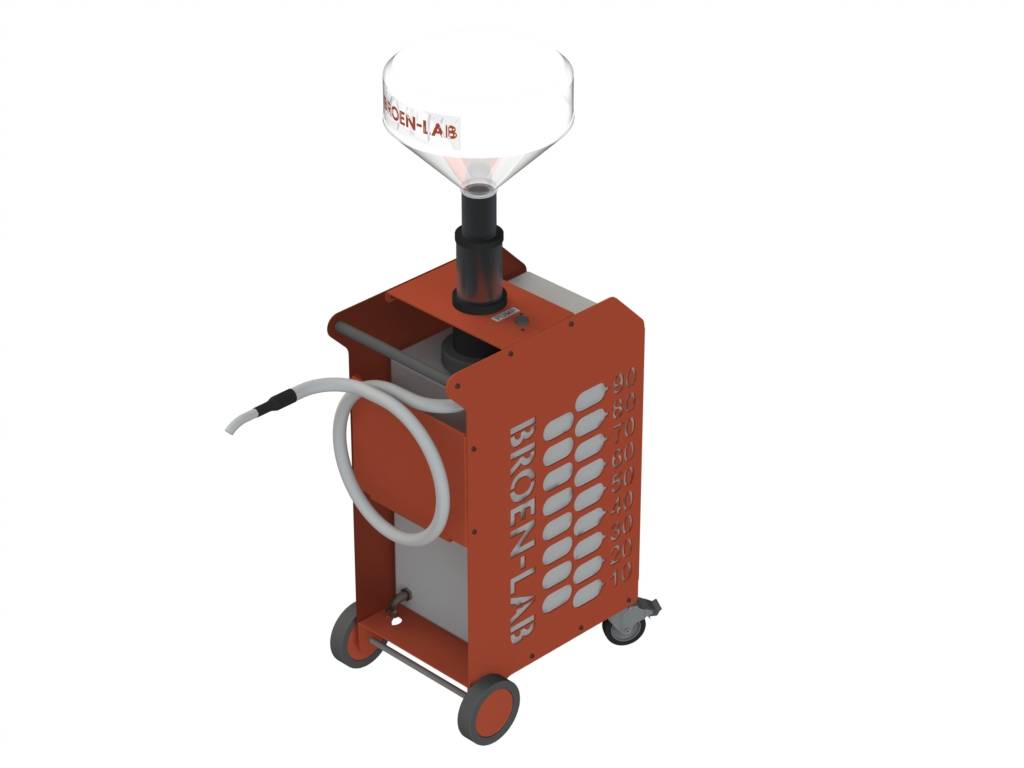

Trolley for emergency shower compliance testing.

Jump to:
+44 (0)121 522 2225 Website

Application

For emergency shower compliance testing.

Description

The BROEN-LAB Trolley helps to speed up and simplify manual monthly performance checks for emergency showers. The trolley comes equipped with two fixed wheels, two lockable castors and an adjustable funnel that can be raised to a maximum height of 2.3 metres.


The trolley’s compact design means that it is particularly suitable for carrying out checks in accordance with the requirements of DIN EN 15154-1 and ANSI Z358.1.


Features and benefits:

  • Allows testing to be achieved without handling buckets and having to clear up spillages.
  • It enables checks for volume flow, jet height and water quality to be carried by one person.
  • Clear litre markings for volume measurement.
  • Low-level tap for gravity discharge to drain.
  • 90 L capacity.
  • High-performance pump (drains in approximately2 minutes).

General information

Color

Red

Finish

Powder-coated

Material

Aluminium

Guidance for specification option:

Frame.

Polyethylene

Guidance for specification option:

Tank.

Plastic

Shape

Other

Length

615 mm

Width

375 mm

Height

1530 mm

Warranty description

Two year

Uniclass

Pr_60_50_96_64 Polyethylene (PE) tanksPrimary

Specification data - Polyethylene (PE) tanks

Arrangement

On trolley.

Capacity (minimum)

90 L.

Connections

-

Outlet

Outlet valve with ½” thread.

Accessories

Transparent funnel, lockable dual telescopic pipe, 1.5 m pump hose, low level tap for gravity discharge to drain.

Power supply cable

8 m electricity cable.

Options

None.

Rollers for loading.

Without pump.

Frame

Powder coated aluminium trolley frame.

Pipe

Anodized aluminium telescopic pipe.

Weight

27 kg.

Guidance for specification option:

When empty.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Denmark

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO140001

QA Certificate

QA Certificate

ISO9001
