NBS Source
I'm a manufacturer

Tessera Outline - Tufted carpet tile

Verified by manufacturer 3 months ago

Forbo Flooring Systems Third party certifications:
  • EPD

    EPD

    Certificate type

A collection of eight contemporary, two colour striped designs, four of which are also available as 100 x 25 cm planks.

Jump to:
+44 (0)800 093 5258 Website

Application

For internal use in all busy commercial and public sector locations.

Description

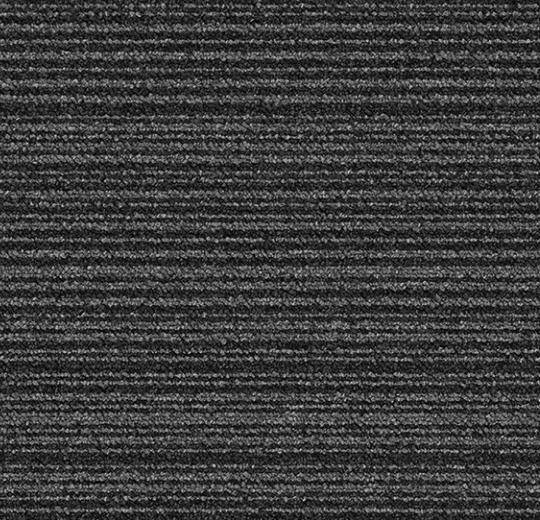

Subtly textured, tufted, striped, low loop pile carpet tile.


Features and benefits:

  • Made with 100% renewable electricity.
  • Investment in an extruder has reduced bitumen usage by 50%.
  • Also available in SOFTbac® secondary backing.
  • Manufactured from 100% solution-dyed nylon 6.
  • Combinations of Outline and Layout allow complete freedom of expression when creating connections, highlights and transitions, enhancing any style of scheme.


Method of laying:

Brick, tessellated, quarter turn or quarter brick.


Adhesive:

542 Eurofix Tack Plus solvent free release system.

General information

Color

Black

Brown

Grey

Finish

Tufted

Material

Nylon

Shape

Square

Length

500 mm

Width

500 mm

Height

5.8 mm

Warranty description

Ten year

Manufacturer guidance

Standard backing: 10 years; SOFTbac® backing: 15 years

Uniclass

Pr_35_57_11_62 Pile carpet tilesPrimary

CAWS

M50/130 Carpet tiling

M50/15 Carpet tiling

Product range

Tessera Carpet Tiles

Specification data - Pile carpet tiles

Style

Tufted low loop pile carpet tile.

Material

100% solution dyed Nylon 6.

Classification

-

Standard

To BS EN 1307 and 14041.

Level of use class

Class 33.

Recycled content

61.77%.

Size

500 x 500 mm.

Colour and pattern

3100 Plasmatron.

3101 Colabottle.

3102 Soda.

3103 Ripple.

3104 Souffle.

3105 Macaroon.

3106 Fruitsalad.

3107 Bubblegum.

Total thickness

5.8 mm ±10%.

Pile composition

100% polyamide 6.

Dye method

100% solution dyed.

Stitch density

193 060 per m² ±10%.

Pile weight after shearing

580 g/m² ±10%.

Total weight

3895 gsm ±10%.

Castor chair use (to BS EN 985)

Minimum R value: ≥2.4.

Light fastness (to BS EN ISO 105 B02)

≥7.

Dimensional stability (to BS EN 986)

≤0.2%.

Impact sound reduction

27 dB.

Ska Rating

Create Outline meets Ska Rating Criteria for M12 soft floor coverings in both office and retail schemes.

Reaction to fire (to EN 13501-1)

BfI-s1.

Slip resistance (to EN 13893)

DS: ≥0.30.

Static dissipative (to BS ISO 10965)

<1 x 10^9 Ω.

Body Voltage (to EN 1815)

Pass (<2 kV).

Pile height above backing

2.9 mm ±0.5 mm.

Primary backing

Polyester/ nylon.

Secondary backing

Modified bitumen and polyester fleece- standard.

SOFTbac®.

Adhesive

Not required.

Eurocol 542 Eurofix Tack Plus solvent free release system.

IOBAC MagTabs® adhesive free installation system.

Edging

Not required.

As per 740.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

18.1 kg CO₂ eq/m²

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

61.77 %
