NBS Source
Tessera Mix Carpet Tile

Application

Internal use, all busy commercial and public sector locations.

Description

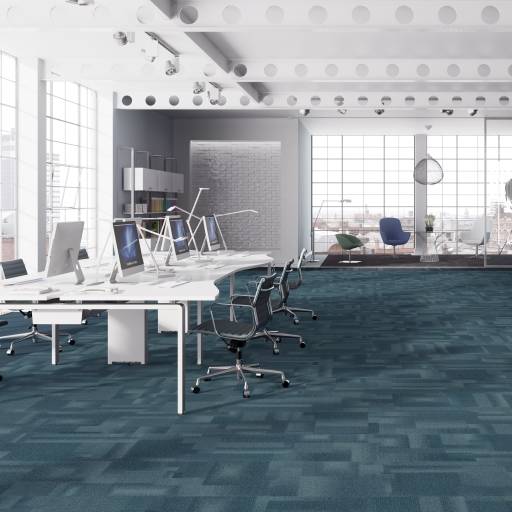

An innovative, random lay, batchless carpet tile, that delivers a seamless installation appearance.


Features and benefits:

  • Tessera Mix random-lay carpet tiles are cleverly designed so that they may be laid in any direction to produce a totally individual installation.
  • Random pattern laying reduces installation waste to less than 2%.
  • Different production consignments of ‘batchless’ tiles can be used together in an installation, without the usual risk of visible batch variation; this also eliminates the need to hold attic stock.
  • Manufactured from 100% solution-dyed Antron polyamide.
  • Made with 100% renewable electricity.
  • Investment in an extruder has reduced bitumen usage by 50%.
  • Also available in SOFTbac® secondary backing.

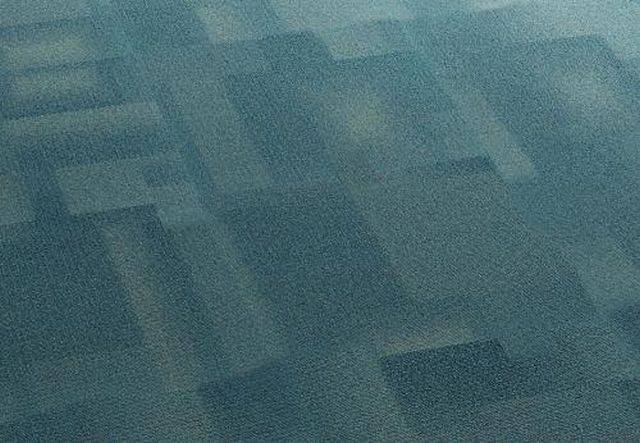

  • Its soft geometric shapes cleverly disguise the tile edges and fitting direction.

General information

Color

Blue

Grey

Red

Yellow

White

Finish

Tufted

Material

Polyamide

100% solution dyed Antron polyamide

Shape

Square

Length

500 mm

Width

500 mm

Height

5.9 mm

WarrantyDescription

Ten year

Uniclass

Pr_35_57_11_62 Pile carpet tilesPrimary

CAWS

M50/130 Carpet tiling

M50/15 Carpet tiling

Product range

Tessera Carpet Tiles

Specification data - Pile carpet tiles Enhanced data

Style

Loop pile.

Material

100% solution dyed Antron polymide 6.6.

Classification

-

Standard

To BS EN 1307 and 14041.

Level of use class

Class 33; Heavy Contract.

Recycled content

61.42%.

Size

500 x 500 mm.

Colour and pattern

Not required.

952 Bone.

954 Woodash.

963 Obsidian.

965 Ruby.

968 Amethyst.

955 Grit.

966 Sahara.

958 Lazuli.

961 Gravel.

967 Husk

969 Glacier.

960 Iron.

964 Stone

970 Jade.

Total thickness

5.9 mm ±10%.

Pile composition

100% Invista Antron® Lumena polyamide.

Dye method

100% solution dyed.

Stitch density

200 600 per m² ±10%.

Pile weight after shearing

650 g/m² ±10%.

Total weight

4165 gsm ±10%.

Castor chair use (to BS EN 985)

Minimum R value: ≥2.4.

Light fastness (to BS EN ISO 105 B02)

≥5.

Dimensional stability (to BS EN 986)

≤0.2%.

Impact sound reduction

26 dB.

Ska Rating

Meets Ska Rating Criteria for M12 soft floor coverings in both office and retail schemes.

Reaction to fire (to EN 13501-1)

BfI-s1.

Slip resistance (to EN 13893)

DS: ≥0.30.

Adhesive

Not required.

542 Eurofix Tack Plus solvent free release system.

IOBAC MagTabs® adhesive free installation system.

Pile height above backing

3 mm ±0.5 mm.

Primary backing

Polyester.

Secondary backing

Modified bitumen and polyester fleece.

Body Voltage (to EN 1815)

Pass (<2 kV).

Static dissipative (to BS ISO 10965)

<1 x 10^9 Ω.

Environmental information

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

20 kg·CO₂e/kg

Recyclability

100%

Recycled content

61.42 %

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2017

1

1.3
Download now from NBS National BIM Library
