Tessera Layout Planks - Tufted carpet tile

Name: Tessera Layout Planks - Tufted carpet tile
Brand: Forbo Flooring Systems
SKU: oKueP4Zkuzc1RcXmfzyugp

Verified by manufacturer 6 months ago

Forbo Flooring Systems

Third party certifications:

Certificate of Conformity
Certificate type

Tufted, low loop pile carpet tile in plank format, the palette offers a choice of modern neutrals alongside brighter colours ideal for accent areas.

Jump to:

+44 (0)800 093 5258 Website

Application

For internal use in all busy commercial and public sector locations.

Ideal for renovation projects, over raised access floors or for any project where speed of installation is required.

Description

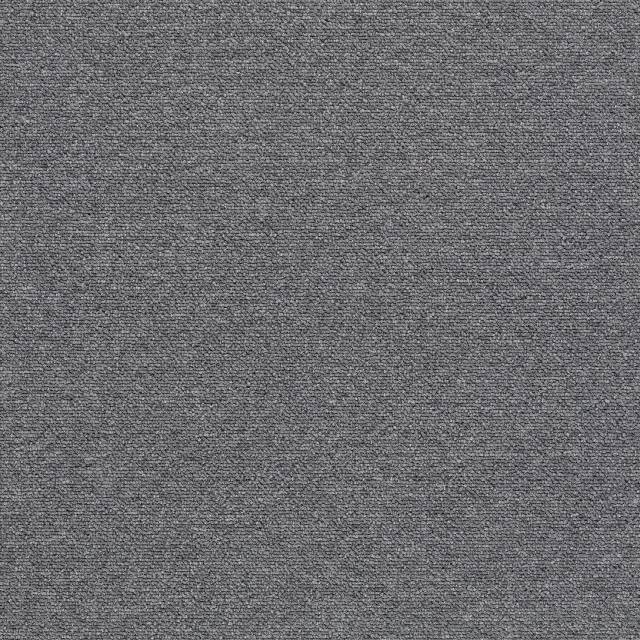

Tufted, low loop pile carpet plank with dynamic colour palette.

Features and benefits:

Made with 100% renewable electricity.
Investment in an extruder has reduced bitumen usage by 50%.
Also available in SOFTbac® secondary backing.
Manufactured from 100% solution-dyed nylon 6.
Versatile choice of modern neutral colours, in combination with diverse and directional brighter shades.
Colours can be used independently or in combination to achieve a range of interior styles.
Installation off-cuts can be returned to Forbo for reprocessing using a 'Back to the Floor' initiative.

Method of laying:

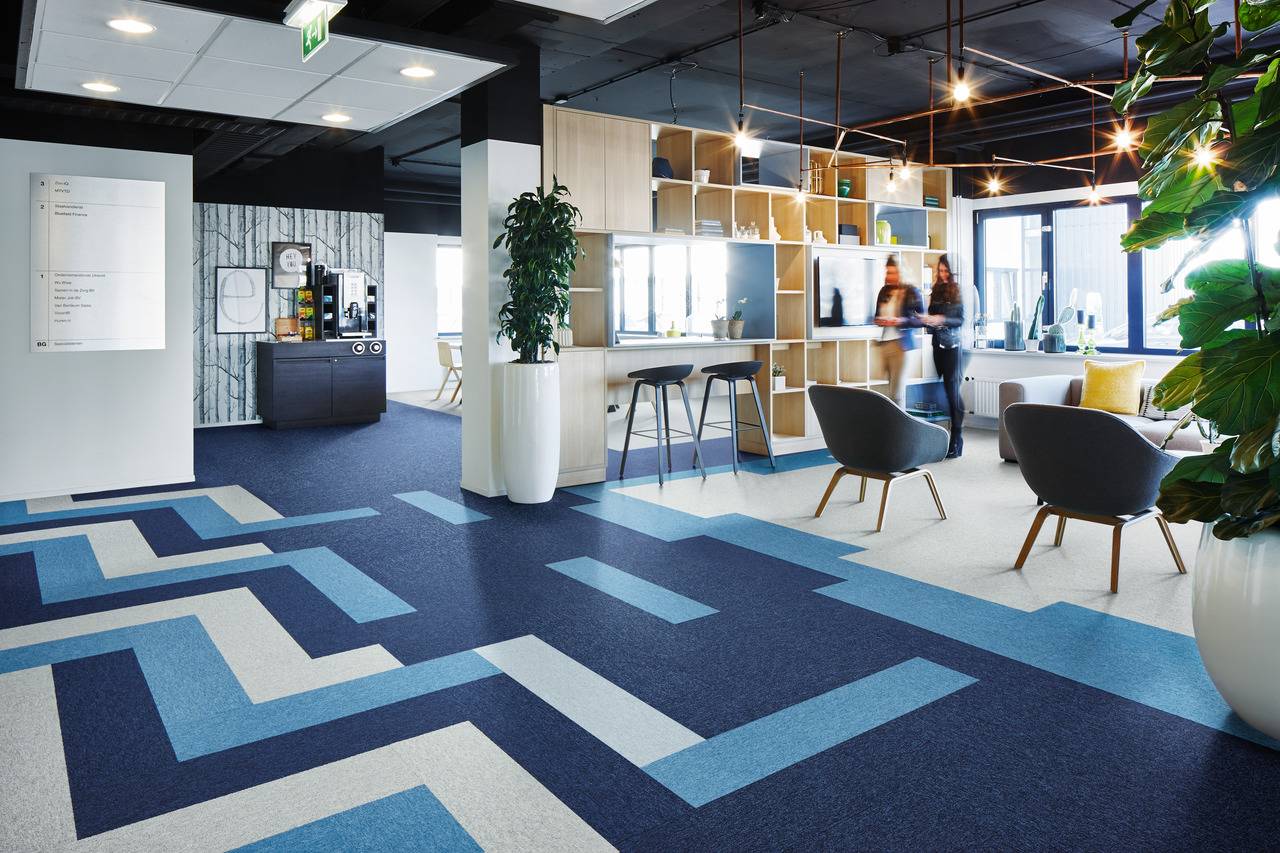

Brick, herringbone, double herringbone, half-drop weave or monolithic.

General information

Color	Black Blue Brown Green Grey Orange Pink Show more
Finish	Tufted Guidance for specification option: Tufted low loop pile carpet tile.
Material	Nylon Manufacturer guidance 100% solution dyed Nylon 6; Polyester
Shape	Rectangle
Length	1000 mm
Width	250 mm
Height	5.8 mm
Warranty description	Ten year

Uniclass	Pr_35_57_11_62 Pile carpet tilesPrimary
CAWS	M50/130 Carpet tiling M50/15 Carpet tiling

Product range	Tessera Carpet Tiles

Specification data - Pile carpet tiles

Style	Tufted low loop pile carpet tile.
Material	100% polyamide 6.
Classification	-
Standard	BS EN 1307 and 14041.
Level of use class	Class 33; Heavy Contract.
Recycled content	61.77%.
Size	1000 x 250 mm.
Colour and pattern	Not required. 2100PL Mono. 2103PL Balsamic. 2104PL Alloy. 2107PL Brulee. 2108PL Calcium. 2112PL Frosting. 2118PL Oceanis. 2119PL Maraschino. 2120PL Apple. 2122PL Drench. 2123PL Candy. 2129PL Menthe. 2130PL Icepop. 2131PL Mango.

Total thickness	5.8 mm ±10%.
Dye method	100% solution dyed.
Stitch density	193 060 per m² ±10%.
Pile weight after shearing	580 g/m² ±10%.
Total weight	3895 gsm ±10%.
Castor chair use (to BS EN 985)	Minimum R value: ≥2.4.
Light fastness (to BS EN ISO 105 B02)	≥6.
Dimensional stability (to BS EN 986)	≤0.2%.
Impact sound reduction	27 dB.
Ska Rating	Create Layout meets Ska Rating Criteria for M12 soft floor coverings in both office and retail schemes.
Reaction to fire (to EN 13501-1)	BfI-s1.
Slip resistance (to EN 13893)	DS: ≥0.30.
Static dissipative (to BS ISO 10965)	<1 x 10^9 Ω.
Body Voltage (to EN 1815)	Pass (<2 kV).
Adhesive	Not required. 542 Eurofix Tack Plus solvent free release system. IOBAC MagTabs® adhesive free installation system.
Pile composition	100% polyamide 6.
Pile height above backing	2.9 mm ± 0.5 mm.
Primary backing	Polyester.
Secondary backing	Modified bitumen and polyester fleece- standard. SOFTbac®.
Edging	Not required. As per 740.

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Nylon Manufacturer guidance 100% solution dyed Nylon 6; Polyester
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	3.48 kg CO₂ eq/m² Self declared
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	62 %

Third party certifications

Certificate of Conformity

SA8000 Management System Certification Certificate

Literature

Forbo Tessera Layout and Outline Brochure

Forbo Tessera LRV and DSDC Accreditation Overview

Forbo Product Portfolio 2022

Forbo Brochure: School Design Guide
