Tessera Cloudscape - Tufted carpet tile
Verified by manufacturer 12 days ago
EPD
Certificate type
Certificate of Conformity
Certificate type
This semi-plain textured loop pile carpet tile features 27 sophisticated and trend led colours representing contemporary aesthetics.
Description
A tufted multi height loop pile carpet tile. Manufactured with 100% solution dyed polyamide 6, on polyester primary and a modified bitumen and polyester secondary backing.
Features and benefits:
- Tile size: 500 x 500 mm, other sizes are available for special orders.
- Pile weight: 665 g/sm ± 10%.
- Thickness: 7.2 mm ± 10%.
- Cloudscape is available in 16 colourways.
General information
Color | Grey Black Beige Blue Green |
Finish | Tufted |
Material | Polyamide |
Shape | Square |
Length | 500 mm |
Width | 500 mm |
Height | 7.2 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | M50/15 Carpet tiling M50/130 Carpet tiling |
Product range |
Specification data - Pile carpet tiles
Style | Tufted loop pile. |
Material | 100% solution dyed polyamide 6. |
Classification | |
Standard | To BS EN 1307 and 14041. |
Level of use class | Class 33; Heavy Contract. |
Recycled content | 61%. |
Size | 500 x 500 mm. |
Colour and pattern | Not required.3400 nimbus grey.3401 light airs.3402 ocean winds.3403 thunderbolt.3405 sunset sky.3406 sirocco blue.3404 cumulus.3407 april shower.3408 grey dawn.3409 dawn chorus.3410 stormy weather.3411 cirrus sky.3412 summer storm.3413 monsoon cloud.3414 mistral gale.3425 gulf stream. |
Total thickness | 7.2mm ± 10%. |
Pile height above backing | 4.4 mm ± 0.5 mm. |
Pile composition | 100% polyamide 6. |
Dye method | 100% solution dyed. |
Stitch density | 217,267 per m² +/- 10%. |
Castor chair use (to BS EN 985) | Minimum R value: ≥2.4. |
Light fastness (to BS EN ISO 105 B02) | ≥5. |
Impact sound reduction | 26 dB. |
Ska Rating | Meets Ska Rating Criteria for M12 soft floor coverings in both office and retail schemes. |
Reaction to fire (to EN 13501-1) | Bfl-s1. |
Slip resistance (to EN 13893) | DS: ≥0.30. |
Static dissipative (to BS ISO 10965) | <1 x 109 Ω. |
Body Voltage (to EN 1815) | Pass (<2 kV). |
Pile weight after shearing | 665 gsm ± 10%. |
Total weight | 4180gsm +/- 10%. |
Primary backing | Polyester. |
Secondary backing | ProBac recycled mineral filler with low amount of modified bitumen, and polyester fleece. Contains over 76% recycled content. |
Dimensional stability (to BS EN 986) | ≤0.2%. |
Adhesive | Not required. Eurocol 542 Eurofix Tack Plus solvent free release system. IOBAC MagTabs® adhesive free installation system. |
Edging | Not required. As per 740. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Polyamide |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 3.95 kg CO₂ eq/m² |
Recyclability | 100% Manufacturer guidance100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 61.00 % |
Third party certifications
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
Third party certifications
EPD

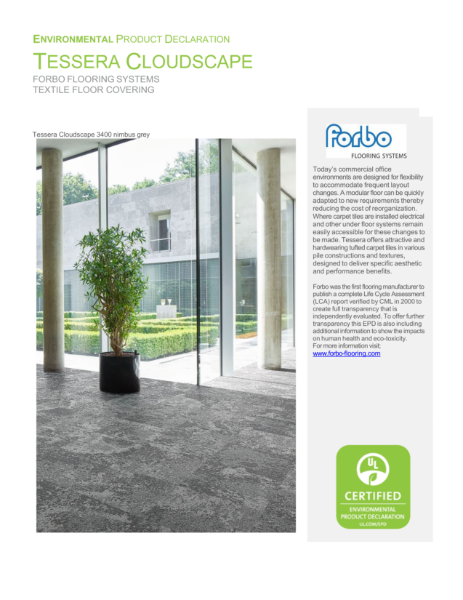

Tessera Cloudscape Environmental Product Declaration
Certificate of Conformity
SA8000 Management System Certification Certificate
Literature
Forbo Tessera LRV and DSDC Accreditation Overview

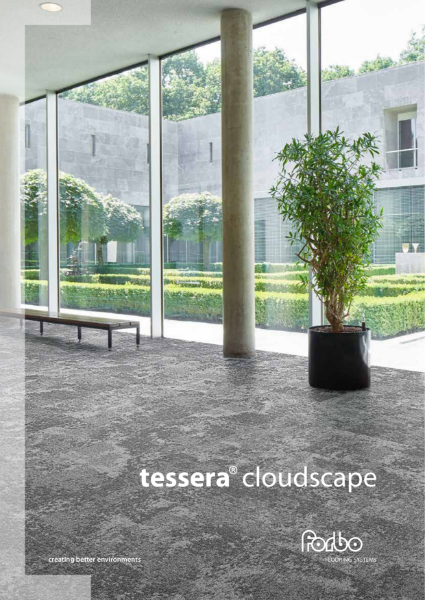

Forbo Tessera Cloudscape Brochure
Forbo Product Portfolio 2022
Forbo Brochure: School Design Guide
Case studies
Calderwood Primary School
Furniture Clinic
The Refinery Student Accommodation
DPG Media
Skanstes City Offices
Newydd HA Offices
