Description

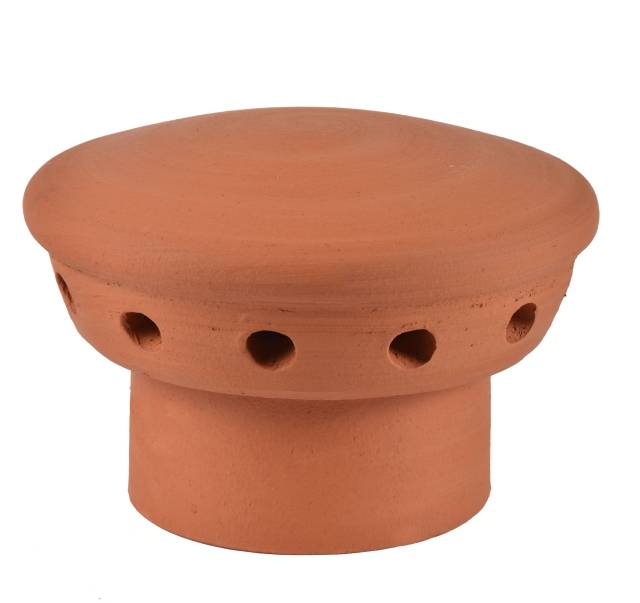

A range of ventilation terminals.

Features and benefits:

  • Resistant to acid corrosion.
  • Easy to install.
  • Minimal maintenance required.
  • Maintains the structural integrity of a redundant flue and chimney with ventilation.
  • Resistant to the freeze thaw cycle and frost.
  • Prevents entry to nesting birds.
  • Minimizes the possibility of rain or snow entering the flue.
  • Colours are resistant to fading.

These terminals are not approved for use on operational flues (i.e. gas, oil, solid fuels). If a flue or chimney is brought back into operation and has a ventilation terminal in place, it should either be removed or replaced with a suitable pot or terminal appropriate to its new use and fuel type. Consult manufacturer for information.

General information
Specification data
Product Reference

Terracotta Ventilation Terminals

Type

See 'Options' below and insert requirement.

Product Options

Type:

  • YL10B – Fluvent terminal, buff, 135 mm diameter.
  • YL10R – Fluvent terminal, red, 135 mm diameter.
  • YL10X – Fluvent terminal, blue/ black, 135 mm diameter.
  • YL11B – Fluvent terminal, buff, 160 mm diameter.
  • YL11R – Fluvent terminal, red, 160 mm diameter.
  • YL11X – Fluvent terminal, blue/ black, 160 mm diameter.
  • YL12B – Fluvent terminal, buff, 180 mm diameter.
  • YL12R – Fluvent terminal, red, 180 mm diameter.
  • YL12X – Fluvent terminal, blue/ black, 180 mm diameter.
  • YL13B – Fluvent terminal, buff, 205 mm diameter.
  • YL13R – Fluvent terminal, red, 205 mm diameter.
  • YL13X – Fluvent terminal, blue/ black, 205 mm diameter.
  • YL14B – Fluvent terminal, buff, 235 mm diameter.
  • YL14R – Fluvent terminal, red, 235 mm diameter.
  • YL14X – Fluvent terminal, blue/ black, 235 mm diameter.
  • YL15B – Mushroom top terminal, buff, 180 mm diameter.
  • YL15R – Mushroom top terminal, red, 180 mm diameter.
  • YL15X – Mushroom top terminal, blue/ black, 180 mm diameter.
  • YL17B – Bonnet insert terminal, buff, 135 mm diameter.
  • YL17R – Bonnet insert terminal, red, 135 mm diameter.
  • YL17X – Bonnet insert terminal, blue/ black, 135 mm diameter.
  • YL18B – Bonnet insert terminal, buff, 160 mm diameter.
  • YL18R – Bonnet insert terminal, red, 160 mm diameter.
  • YL18X – Bonnet insert terminal, blue/ black, 160 mm diameter.
  • YL19B – Bonnet insert terminal, buff, 180 mm diameter.
  • YL19R – Bonnet insert terminal, red, 180 mm diameter.
  • YL19X – Bonnet insert terminal, blue/ black, 180 mm diameter.
  • YL20B – Bonnet insert terminal, buff, 205 mm diameter.
  • YL20R – Bonnet insert terminal, red, 205 mm diameter.
  • YL20X – Bonnet insert terminal, blue/ black, 205 mm diameter.
