BBA Agrément Certificate
External thermal insulation system.
Terraco EIFS (External Insulation Finishing System), also known as an external thermal insulation composite system has been developed to promote a comfortable indoor climate whilst substantially reducing the need for heating and/or cooling.

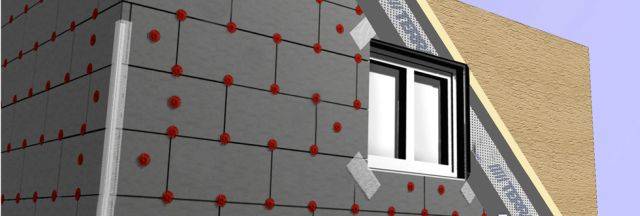

The Alpha system utilizes EPS (expanded polystyrene) insulation boards which are fixed to the substrate using a combination of Styrofix adhesive and mechanical fasteners. The board is then strengthened with a range of quality profiles and Styrobond DP is applied and reinforced with a layer of glass fibre mesh. This creates a surface which is then primed and decorated using one or more decorative, high performance finishing coats.
M21/20 External wall insulation system
M21/210 External wall insulation system
Terraco EIFS Alpha System
EPS Insulation Board
Thermal conductivity (K-value): 0.033 W/mK.
Graphite EPS Insulation Board
Thermal conductivity (K-value): 0.030 W/mK.
Insert requirement, available 50–200 mm.
Fastener for aerated lightweight concrete
Fastener with plastic expansion pin
Fastener with steel expansion pin
Fibreglass Mesh - E Class
P Primer Clear
Acrylic penetrating primer with excellent adhesion promotion properties.
P Primer Pigmented
Pigmented penetrating primer tinted to same shade as the decorative finish.
P Primer Textured
Pigmented aggregate primer for extra grip when applying trowel-on renders.
Breathable primer for use with Terracoat Sil.
Terol Décor mineral coating
Terol Granule 1 mm mineral coating
Terol Granule 2 mm mineral coating
Terol Granite mineral coating
Terol Sahara 2 mm mineral coating
Terralight Course natural aggregate coating
Terralight Fine natural aggregate coating
Terralight Granite natural aggregate coating
Terracoat Excel 2 mm acrylic coating
Terracoat Excel 3 mm acrylic coating
Terracoat Flex Granule 1 mm elastomeric coating
Terracoat Flex Granule 2 mm elastomeric coating
Terracoat Granule 1 mm acrylic coating
Terracoat Granule 2 mm acrylic coating
Terracoat Istanbul natural aggregate coating
Terracoat Sill Granule 1 mm silicone coating
Terracoat Sill Granule 2 mm silicone coating
Terracoat Sill Excel 2 mm silicone coating
Terracoat Sill Excel 3 mm silicone coating
Terracoat Stone natural aggregate coating
Ready mixed elastomeric pigmented coating.
Standard product features
Styrofix adhesive is easy to use by just adding water, improving on-site quality control. It shows excellent adhesion between substrate and EPS (expanded polystyrene), XPS (extruded polystyrene) and MW (mineral wool) insulation boards.
Styrobond DP basecoat and adhesive is easy to use by just adding water, improving on-site quality control. It shows excellent adhesion between substrate and EPS (expanded polystyrene) when used as an adhesive. It also provides an excellent basecoat for embedding glass fibre mesh on top of which EIFS finishing coat is applied.
Beads and trims:
