Terrabase Rustic - Resin Bound Paving system

Verified by manufacturer 15 days ago

Addagrip Terraco Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Terrabase Rustic is a system with a decorative and natural rustic looking permeable surface, suitable for pedestrian footpaths and areas subject to occasional trafficking.

Jump to:
BOS
+44 (0)1825 761333 Website

Application

Suitable for footpaths, landscaping schemes, canal towpaths, heritage sites, cycle paths, tree root areas and domestic driveways.

Description

A decorative and natural rustic looking permeable surface, suitable for pedestrian footpaths and domestic driveway areas subject to occasional trafficking.

Depending on requirements for pedestrian footpath areas it can be applied directly onto most suitable surfaces and gradients. Potentially it can even be installed directly onto the ground with no or minimum digging or edging required.

An ideal replacement or overlay system for self-binding surfaces such as hoggin, blocks & paving, as it is fully bound and will not be washed away, the innovative structured build-up ensures a SuDS compliant surface that allows water to drain through the product. Maximum porosity is achieved when applied directly onto a compacted MOT Type 3 sub-base or similar installed prior to application. The patented system incorporates:

  • Terrabase Geofabric – A high density, needle punched membrane base.
  • Terrabase Addagrid – Offering strength and durability.
  • Terrabase Rustic Resin – Binder.

A standard range of Terrabase Rustic finishes are available, each an exact formulation of aggregates bound with specific quantities of resin.


Features and benefits:

  • Does not require large machinery to install.
  • No asphalt sub-base or concrete requirement.
  • Minimum disruption.
  • No edging is required.
  • Fast installation.
  • SuDS compliant porous surface.
  • Provides a natural-looking seamless finish offering strength and durability.
  • Environmental Product Declaration.
  • 10 year product guarantee.

General information

Color

Silver

Beige

Brown

Gold

Grey

Manufacturer guidance

Non UV: Beach, Golden, Oak, Tweed, Hedgerow, Teak.

UV: Silver, Iceberg, Storm, Bramble, Mist, Harvest.

Finish

Smooth

Material

Aggregate

Resin

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_35_31_05_71 Resin-bound mixed aggregate surfacingsPrimary

CAWS

Q22/170 Proprietary vehicular paving

Q22/175 Proprietary pedestrian paving

Q22/185 Proprietary surface treatment to existing paving

Q22/365 Proprietary surface treatment

Q23/180 Bonded chippings for vehicular areas

Q23/190 Bonded chippings for pedestrian areas

Q23/220 Two coat proprietary fibre reinforced bonded chippings

Q23/221 Proprietary fibre reinforced bonded chippings overlay

Specification data - Resin-bound mixed aggregate surfacings

Aggregate

-

Type

Terrabase rustic.

Size (nominal)

6–10 mm.

Colour

Beach.

Guidance for specification option:

Non-UV.

Golden.

Guidance for specification option:

Non-UV.

Oak.

Guidance for specification option:

Non-UV.

Tweed.

Guidance for specification option:

Non-UV.

Hedgerow.

Guidance for specification option:

Non-UV.

Teak.

Guidance for specification option:

Non-UV.

Silver.

Guidance for specification option:

UV.

Iceberg.

Guidance for specification option:

UV.

Storm.

Guidance for specification option:

UV.

Bramble.

Guidance for specification option:

UV.

Mist.

Guidance for specification option:

UV.

Harvest.

Guidance for specification option:

UV.

Anthracite.

Cove.

Binder

-

Type

Terrabase resin.

Slip resistance – water wet (minimum)

PTV of 43.

Sustainability data

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

15.6 kg CO₂ eq/m²

Self declared

Recyclability

Resin bound can be broken down and reused as aggregate base

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

5

Revit
-

5

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

Addagrip Terraco ISO 14001 Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

Addagrip Terraco ISO 9001 Certificate

Literature

Terrabase Rustic Resin Bound Brochure

Terrabase Rustic Resin Bound Brochure

Case studies

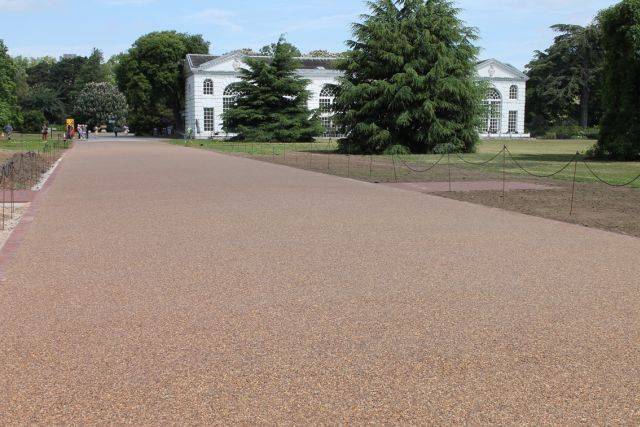

TERRABASE RUSTIC PAVING FOR KEW GARDENS BROAD WALK

TERRABASE RUSTIC PAVING FOR KEW GARDENS BROAD WALK

TERRABASE RUSTIC PATHWAYS FOR LEADER’S GARDENS PUTNEY

TERRABASE RUSTIC PATHWAYS FOR LEADER’S GARDENS PUTNEY

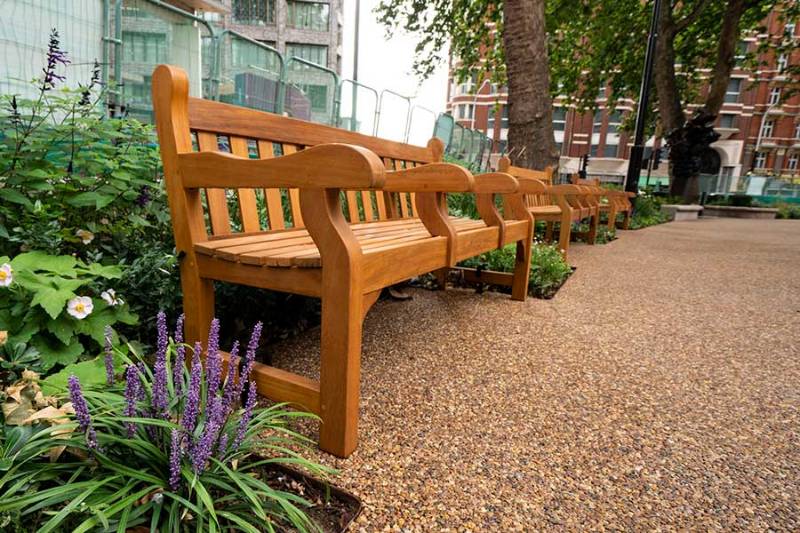

TERRABASE RUSTIC RESIN BOUND PATHWAYS FOR CHRISTCHURCH GARDENS LONDON

TERRABASE RUSTIC RESIN BOUND PATHWAYS FOR CHRISTCHURCH GARDENS LONDON
