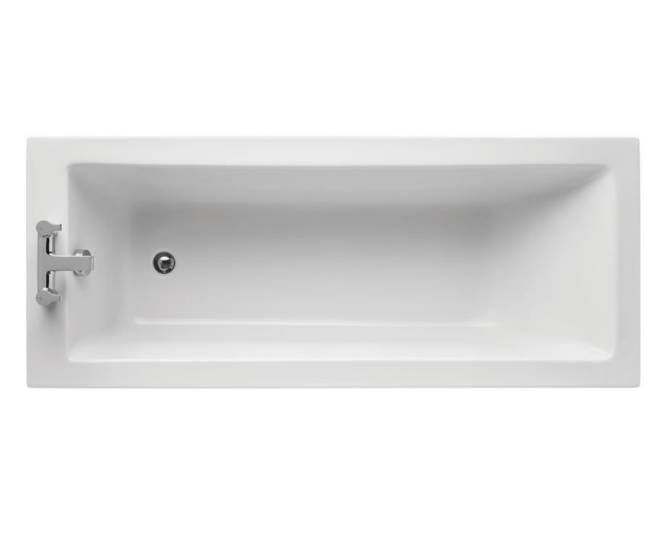

Tempo Cube IFP+ 170 x 75 cm Rectangular Bath
Verified by manufacturer over a year ago
170x 75 cm Idealform Plus+ bath, no handgrips, no tapholes.
Application
Suitable for hotel and residential use.
Description
The gentle minimalism that characterises Tempo is evident across all the pieces in this extensive range. Constructed from Idealform Plus+ for exceptional strength and rigidity.
Features and benefits:
- Domestic and hotel use.
- Also available as a 70 cm-wide bath (specified separately).
- Increased strength and rigidity.
- Supplied no taphole for maximum flexibility.
- Also available as Idealform.
General information
Color | White |
Material | Guidance for specification option: Idealform Plus+. |
Shape | Rectangle |
Length | 1695 mm |
Width | 745 mm |
Height | 510 mm |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Rectangular. |
Standards | To BS EN 14516. |
Materials | Idealform Plus+. |
Colour | White. |
Size | 1695 x 745 x 510 mm.Manufacturer guidanceLength x width x height. |
Volume to overflow (maximum) | 200.0 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Waste | Bottom waste outlet. |
Integral accessories | Not required.Thermostatic Valve - 5901.Guidance for specification option: TMV thermostatic mixing valve, 22 mm. Brassware - B0730.Guidance for specification option: Tempo 2 hole bath filler. Bath Waste - E1486.Guidance for specification option: Luxury bath pop-up waste and overflow. Bath Front Panel - E4797.Guidance for specification option: Unilux Plus+ 170 cm front panel. Bath End Panel - E4832.Guidance for specification option: Unilux Plus+ 75 cm end panel. Trap - S8970.Guidance for specification option: Trap 1½" plastic P with 75 mm seal, multi-purpose outlet suitable for plastic and BS copper pipe. Brassware - B0731.Guidance for specification option: Tempo 2 hole bath shower mixer. Brassware - B0732.Guidance for specification option: Tempo 1 hole bath filler. Brassware - B0733.Guidance for specification option: Tempo 1 hole bath shower mixer. Bath Waste - S8830.Guidance for specification option: Waste 1½" bath chain and overflow, plastic plug. |
Weight | 33.00 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
