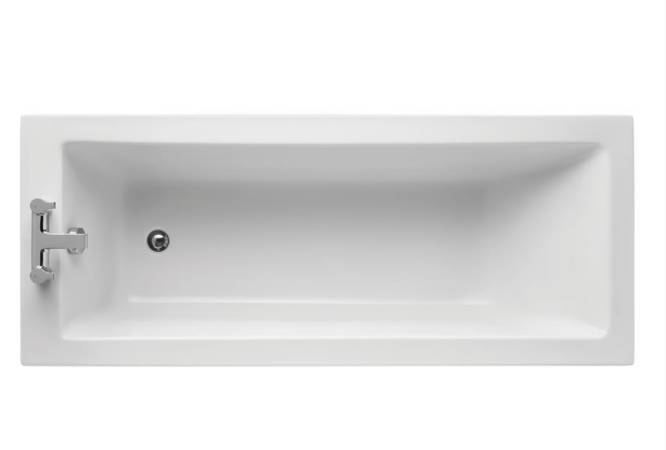

Tempo Cube Idealform Plus+ 170 x 70 cm Rectangular Bath
Verified by manufacturer 1 year ago
170 x 70 cm Idealform Plus+ bath, no handgrips, no tapholes.
Application
Suitable for domestic and hotel applications.
Description
The gentle minimalism that characterizes Tempo is evident across all the pieces in this extensive range. Constructed from Idealform Plus+ for exceptional strength and rigidity.
Features and benefits:
- Domestic and hotel use.
- Also available as a 75 cm-wide bath (specified separately).
- Increased strength and rigidity.
- Supplied no taphole for maximum flexibility.
- Also available as Idealform.
General information
Color | White |
Material | Guidance for specification option: Idealform Plus+. |
Shape | Rectangle |
Length | 1695 mm |
Width | 695 mm |
Height | 510 mm |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Rectangular. |
Standards | To BS EN 14516. |
Materials | Idealform Plus+. |
Colour | White. |
Size | 1695 x 695 x 510 mm.Manufacturer guidanceLength x width x height. |
Volume to overflow (maximum) | 181.0 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Waste | Bottom waste outlet. |
Integral accessories | Not required.Thermostatic Valve - A5901.Guidance for specification option: TMV thermostatic mixing valve, 22 mm. Brassware - B0730.Guidance for specification option: Tempo 2 hole bath filler. Bath Waste - E1486.Guidance for specification option: Luxury bath pop-up waste and overflow. Bath Front Panel - E4797.Guidance for specification option: Unilux Plus+ 170 cm front panel. Bath End Panel - E4831.Guidance for specification option: Unilux Plus+ 70 cm end panel. |
Weight | 32.00 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
