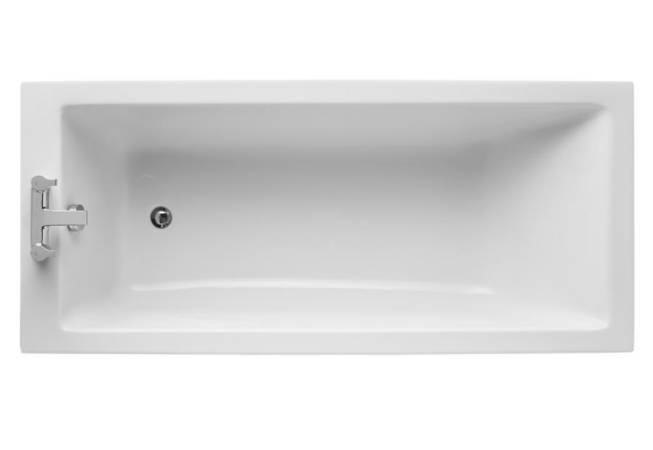

Tempo Cube 170 x 75 cm Idealform Bath
Verified by manufacturer 8 months ago
A rectangular bath tub 170 x 75 cm Idealform bath, no handgrips or tapholes.
Application
Suitable for domestic and hotel applications.
Description
Contemporary minimalism 170 x 70 cm, 170 x 75 cm and a water saving 170 x 70 cm. With two bath designs Arc and Cube within the range, the suite is incredibly versatile. Rectangular, double-ended and shower baths in both Idealform and Idealform Plus+ complete the range.
Features and benefits:
- Domestic and hotel use.
- Available in two widths 75 cm and 70 cm (latter specified separately).
- Water saving option.
- Arc or Cube design.
- Also available in Idealform Plus+.
General information
Color | White |
Finish | Acrylic |
Material | Plastic Guidance for specification option: Idealform. |
Shape | Rectangle |
Length | 1695 mm |
Width | 745 mm |
Height | 540 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Rectangular. |
Standards | To BS EN 14516. |
Materials | Idealform. |
Colour | White. |
Size | 1695 x 745 x 510 mm.Guidance for specification option: Length x width x height. |
Volume to overflow (maximum) | 200.0 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Waste | Bottom waste outlet. |
Integral accessories | Not required.Thermostatic Valve - A5901.Guidance for specification option: TMV thermostatic mixing valve, 22 mm. Brassware - B0730.Guidance for specification option: Tempo 2 hole bath filler. Bath Waste - E1486.Guidance for specification option: Luxury bath pop-up waste and overflow. Bath Front Panel - E3194.Guidance for specification option: Unilux 170 cm front panel. Bath End Panel - E3195.Guidance for specification option: Unilux 75 cm end panel. Trap - S8970.Guidance for specification option: Trap 1½" plastic P with 75 mm seal, multi-purpose outlet suitable for plastic and BS copper pipe. Brassware - B0731.Guidance for specification option: Tempo 2 hole bath shower mixer. Brassware - B0732.Guidance for specification option: Tempo 1 hole bath filler. Brassware -B0733.Guidance for specification option: Tempo 1 hole bath shower mixer. Bath Waste - S8830.Guidance for specification option: Waste 1½" bath chain and overflow, plastic plug. |
Weight | 23.00 kg. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Egypt |
Recyclability | 100% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2013 | 1 |
Literature
Bathroom Collections brochure
