Tempo 170 cm x 80 cm Double-Ended Idealform Plus+
Verified by manufacturer over a year ago

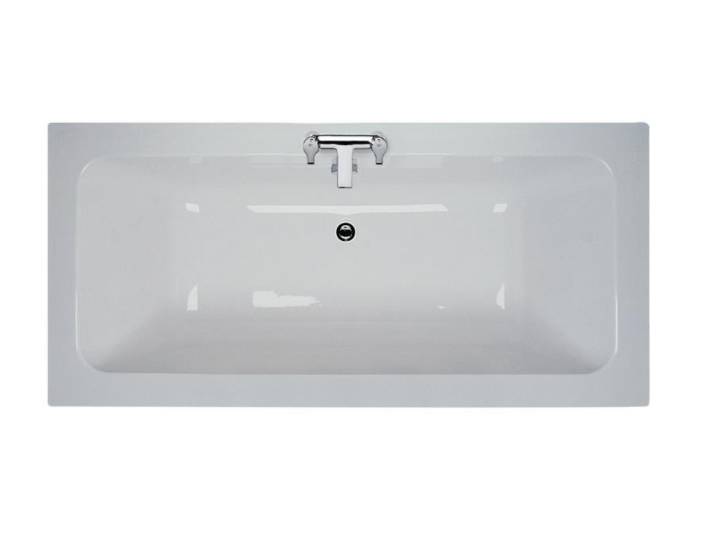

Tempo 170 x 80cm double-ended Idealform Plus+ bath with no tapholes.
Application
Suitable for domestic and hotel applications.
Description
The gentle minimalism that characterises Tempo is evident across all the pieces in this extensive range. With two bath designs Arc and Cube within the range, the suite is incredibly versatile. Rectangular, double-ended and shower baths in both Idealform and Idealform Plus+ feature, with Arc also offering a gripped variant across its rectangular models.
Features and Benefits:
- Domestic and hotel use.
- Part of an extensive range.
- Supplied no taphole for maximum flexibility.
- Increased strength and rigidity.
- Also available in Idealform.
General information
Color | White |
Material | Guidance for specification option: Idealform Plus+. |
Shape | Rectangle |
Length | 1695 mm |
Width | 795 mm |
Height | 595 mm |
Uniclass | |
CAWS | N13/35 Baths N13/355 Baths |
Specification data - Baths
Form | Rectangular. |
Standards | To BS EN 14516. |
Materials | Idealform Plus+. |
Colour | White. |
Size | 1695 x 795 x 595 mm.Manufacturer guidanceLength x width x height. |
Volume to overflow (maximum) | 221.0 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Waste | Bottom waste outlet. |
Integral accessories | Not required.Thermostatic Valve - A5901.Guidance for specification option: TMV thermostatic mixing valve, 22 mm. Brassware - B0730.Guidance for specification option: Tempo 2 hole bath filler. Bath Front Panel - E0024.Guidance for specification option: Tempo Cube 170 cm front panel. Bath Waste - E1486.Guidance for specification option: Luxury bath pop-up waste and overflow. Bath End Panel - E2607.Guidance for specification option: Tempo Cube 80 cm end panel. Trap - S8970.Guidance for specification option: Trap 1½" plastic P with 75 mm seal, multi-purpose outlet suitable for plastic and BS copper pipe. |
Weight | 37.00 kg. |
