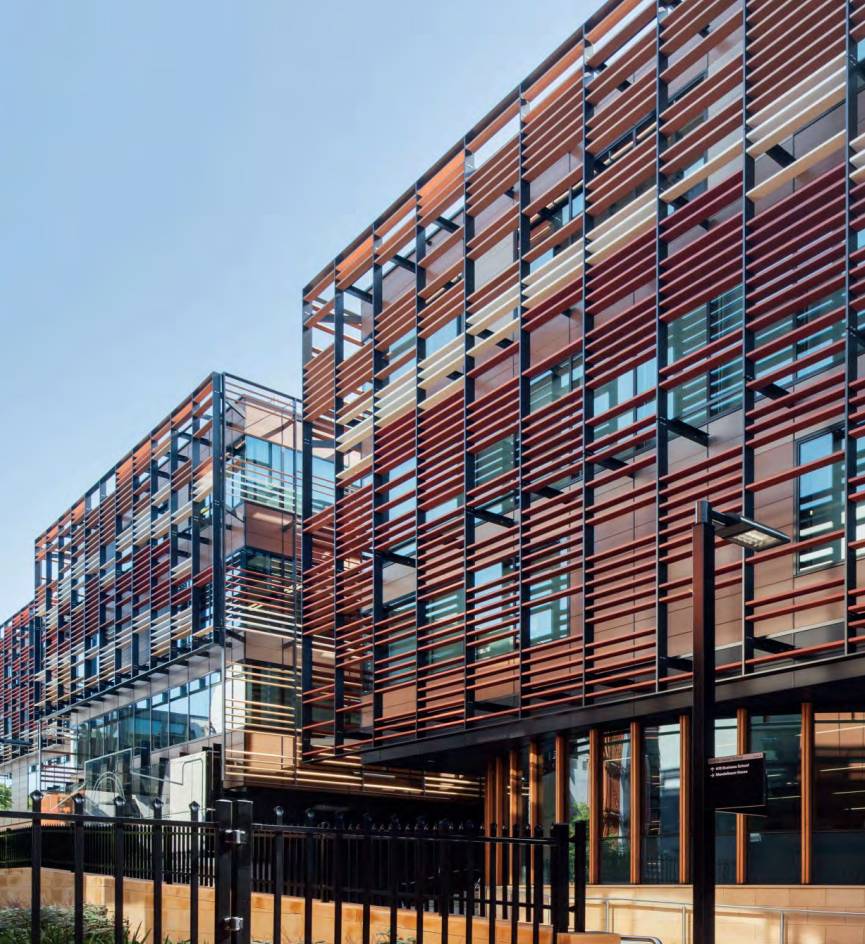

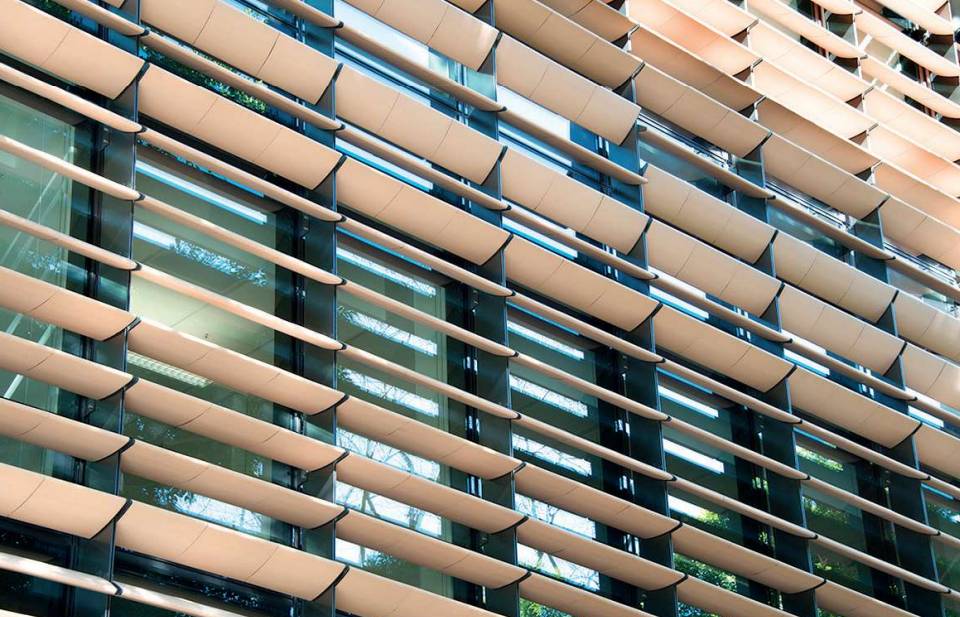

Tempio® Terracotta Baguettes - Ceramic Sunscreen/ Solar Shading

Verified by manufacturer 2 days ago

Natural finish terracotta

D Facades Variant:

Premium terracotta materials for outdoor construction solutions.

Jump to:
Request BIM
00447535431977 Website

Application

Exterior applications (solar shading) or interior applications (separation feature lining for walls and/ or ceilings; ephemeral architecture).

Description

Premium terracotta materials for outdoor construction solutions.

Features and benefits:

  • Wide variety of natural terracotta and glazed colours with gloss, satin or matt finishes. Custom colours available on request.
  • A1 fire rated.
  • Can be used externally to provide solar shading, or internally to separate spaces, or to provide linings to ceilings/ walls.
  • Horizontal and vertical orientation.
  • Suitable for any building size.
  • Profiles with hollow chambers.
  • Custom designed substructure.
  • Customized pieces can be produced.

The Tempio terracotta range includes panels available for facades etc. Specified separately.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Finish

Glazed

Natural

Gloss

Matt

Other

Material

Ceramic

Guidance for specification option:

Terracotta.

Shape

Square

Rectangle

Other

Circle

Elliptical

Show more

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_50_45_22 Decorative screen systemsPrimary
Pr_30_59_09_18 Composite brise-soleil units

CAWS

L10/680 Solar shading systems

H11/130 Sun screens

L10/54 Louvres

Specification data - Decorative screen systems

Classification data

Cladding units

Round baguettes, ∅50 mm OD (B-d50).

Guidance for specification option:

  • Hollow; internal cavity: ∅32 mm.
  • Available in lengths <1800 mm.
  • Weight: 2.5 kg per linear metre.

Round baguettes, ∅110 mm OD (B-d110).

Guidance for specification option:

  • One central chamber plus four outer chambers.
  • Available in lengths <1500 mm.
  • Weight: 2.5 kg per linear metre.

Square baguettes, 50 x 50 mm (B-5x5).

Guidance for specification option:

  • Hollow; internal cavity: 32 x 32 mm.
  • Available in lengths <1800 mm.
  • Weight: 3.5 kg per linear metre.

Square baguettes, 60 x 60 mm (B-6x6).

Guidance for specification option:

  • Hollow; internal cavity: 42 x 42 mm.
  • Available in lengths <1800 mm.
  • Weight: 4 kg per linear metre.

Square baguettes, 70 x 70 mm (B-7x7).

Guidance for specification option:

  • Hollow; internal cavity: 52 x 52 mm.
  • Consult manufacturer for further details.

Irregular baguettes, 82.5 x 50 mm (B-5x8 r50).

Guidance for specification option:

  • Concave/ convex ends, ∅50 mm curve; rounded external corners, three chambers.
  • Available in lengths <1800 mm.
  • Weight: 5.5 kg per linear metre.

Rectangular baguettes, 50 x 80 mm (B-5x8).

Guidance for specification option:

  • Rounded corners, three chambers.
  • Available in lengths <1800 mm.
  • Weight: 5.5 kg per linear metre.

Rectangular baguettes, 50 x 130 mm (B-5x13).

Guidance for specification option:

  • Rounded corners, three chambers.
  • Available in lengths <1800 mm.
  • Weight: 7.7 kg per linear metre.

Rectangular baguettes, 250 x 60 mm (B-250x60).

Guidance for specification option:

  • Rounded corners, five chambers.
  • Available in lengths <1800 mm.
  • Weight: 15 kg per linear metre.

Oval (elliptical) baguettes, 160 x 50 mm (BO-160x50).

Guidance for specification option:

  • Blade/ aerofoil-style profile.
  • Three chambers.
  • Available in lengths <1500 mm.
  • Weight: 7.6 kg per linear metre.

Oval (elliptical) baguettes, 200 x 50 mm (BO-200x50).

Guidance for specification option:

  • Blade/ aerofoil-style profile.
  • Five chambers.
  • Available in lengths <1500 mm.
  • Weight: 9.7 kg per linear metre.

Oval (elliptical) baguettes,300 x 60 mm (BO-300x62).

Guidance for specification option:

  • Blade/ aerofoil-style profile.
  • Seven chambers.
  • Available in lengths <1500 mm.
  • Weight: 17.5 kg per linear metre.

Manufacturer guidance

See also Design, Finish as delivered and Colour below for required layout and colours respectively.

Note that anchor plate installation imposes a limit of 1500 mm per terracotta unit.

Secondary support structure

Standard system (horizontal).

Guidance for specification option:

90° and 45° brackets available.

Utilizes aluminium tubes inserted into the terracotta units.

Anchor plate system (horizontal).

Guidance for specification option:

Utilizes aluminium tubes inserted into the terracotta units; tubes are bolted to support anchor plates.

Maximum terracotta unit length of 1500 mm.

Pop nut system (vertical).

Guidance for specification option:

Utilizes aluminium tubes inserted into the terracotta units; tubes are bolted to support brackets via holes in the rear of the terracotta.

Hook system (vertical).

Guidance for specification option:

Terracotta units held in place by opposing brackets with safety threaded rods through the hollow section.

Other.

Guidance for specification option:

Includes floor and ceiling installation or integration into furniture; consult manufacturer for options and insert requirements.

Manufacturer guidance

Consult manufacturer's literature for details.

Primary fasteners

Guidance for specification option:

Insert requirements to suit substrate.

Design

Guidance for specification option:

Insert drawing or schedule details as required.

Note that terracotta unit maximum lengths vary according to style required; consult guidance above or manufacturer's literature for details.

Finish as delivered

Natural.

Colour

Blanco W00-20.
Blanco W2-07.
Amarillo Y00-05.
Amarillo Y125-15.
Amarillo Y05-02.
Naranja NA05-05.
Naranja NA05-15.
Rojo R05-05.
Rojo R15-10.
Rojo R25-19.
Rojo R25-25.
Marrón BR2-08.
Gris GR1-10.
Gris GR02-20.
Negro B5-10.
Other (custom).

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Manufacturer guidance

Select multiple options where required; see also Design.

Sustainability data

Material

Ceramic

Guidance for specification option:

Terracotta.

Literature

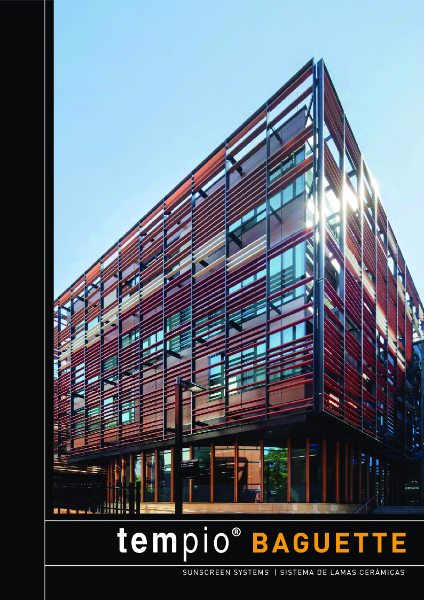

Tempio Baguette - Brochure

Tempio Baguette - Brochure

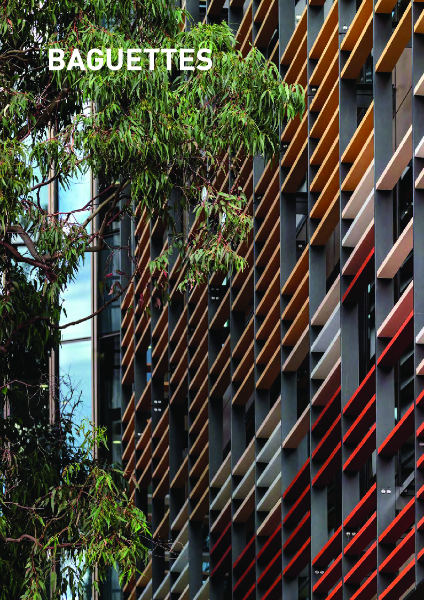

Tempio Baguette - Brochure 2

Tempio Baguette - Brochure 2

Tempio Baguettes - Data Sheet

Tempio Baguettes - Data Sheet

Tempio Baguette - Technical Catalogue

Tempio Baguette - Technical Catalogue

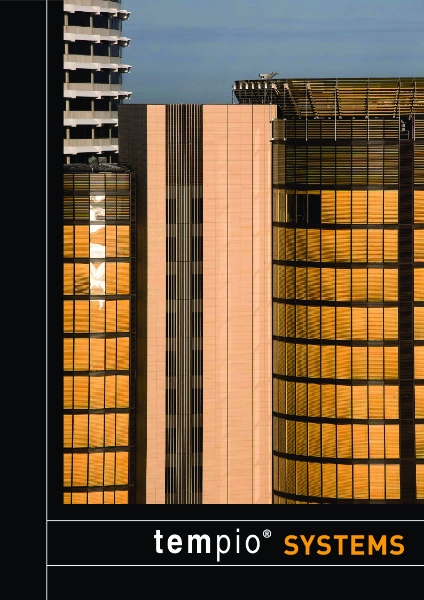

Tempio Projects (Vol 1) - Brochure

Tempio Projects (Vol 1) - Brochure
