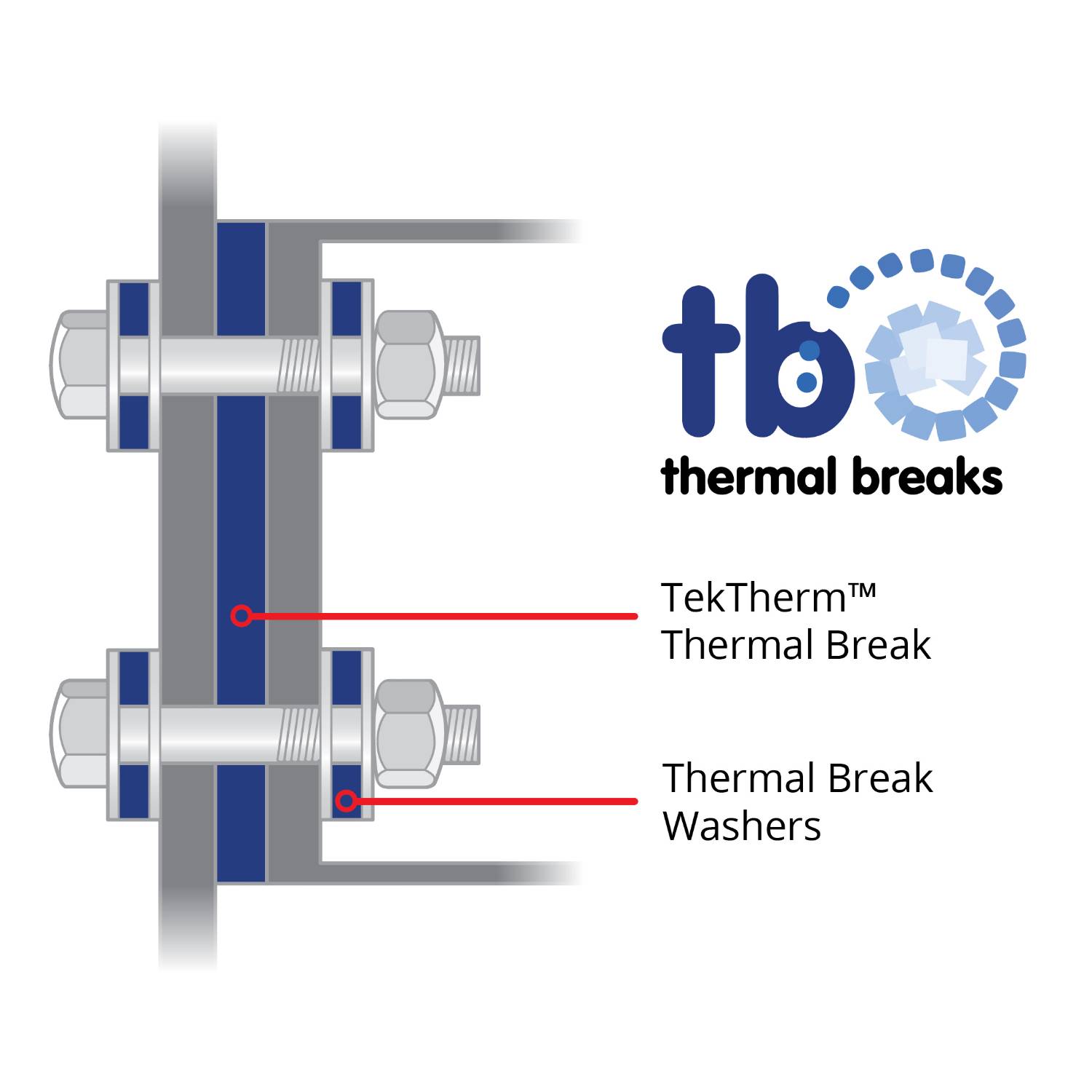

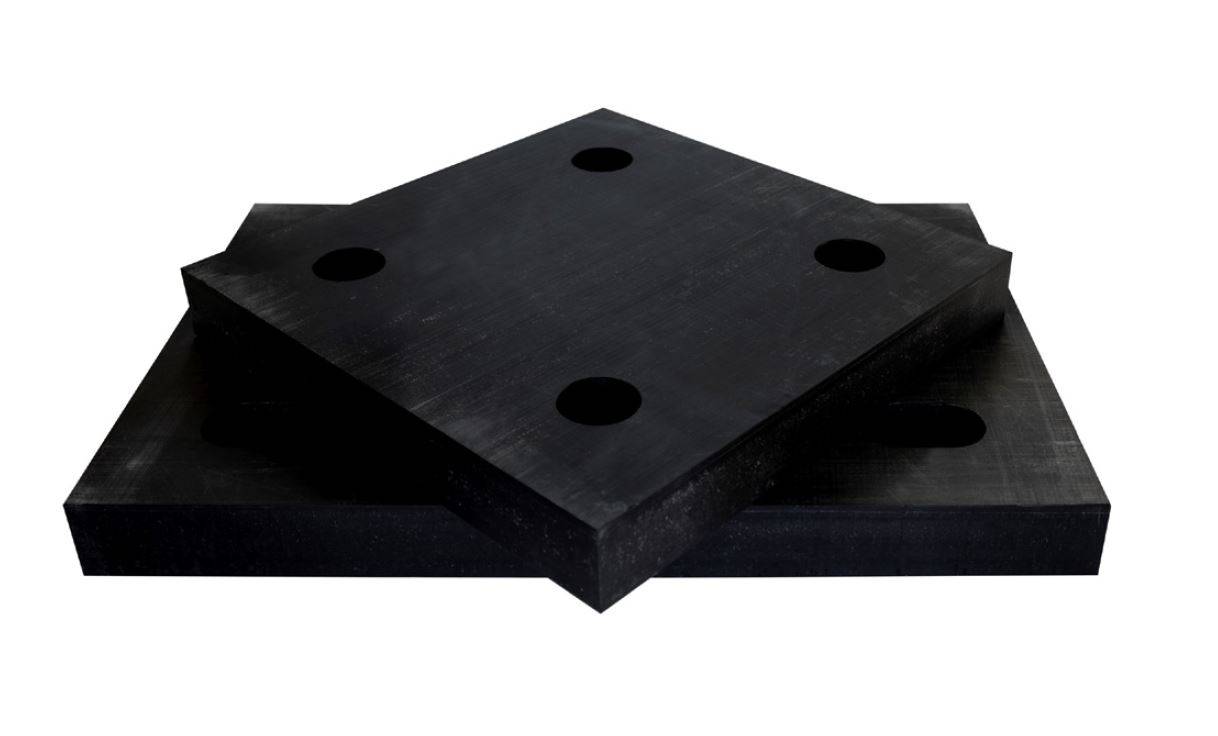

TekTherm™ AK200 - Thermal Break
Verified by manufacturer 1 month ago
SCI Assessed
Certificate type
High performance Structural Thermal Break
Application
- Steel to steel.
- Steel to concrete.
- Concrete to concrete.
- Steel to timber.
- Balconies.
- Canopies.
- Brise-soleil.
- Roof Plant enclosures.
- Façade systems.
- Balustrading.
- Parapets.
- Man-safe systems.
- Staircases.
- Building maintenance units.
Description
TekTherm™ AK200 is a medium duty structural thermal break, offering good thermal insulation properties and compressive strength.
TekTherm™ AK200 has been independently tested and certified so specifiers and customers know they are buying a quality product. It can be supplied in cut pads, strips or in any other shape within the parameters of the material.
Features and benefits:
- Asbestos free.
- Low heat conductivity.
- Excellent tolerances with respect to parallelism.
- Long life expectancy >25 years.
- Low water absorption.
- Good hydrocarbon stability.
- Good chemical stability.
- Excellent mechanical durability.
- Very good electrical properties.
- SCI Assessed/ SCI member.
- NHBC approved.
General information
Color | Black |
Finish | Other |
Material | Other |
Shape | Rectangle Circle Square Other |
Length | 2000 mm |
Width | 1000 mm 1220 mm |
Height | 6 mm Guidance for specification option: 1000 x 2000 mm size only. 10 mm Guidance for specification option: 1220 x 2000 mm size only. 12 mm Guidance for specification option: 1220 x 2000 mm size only. 16 mm Guidance for specification option: 1220 x 2000 mm size only. 20 mm Guidance for specification option: 1220 x 2000 mm size only. Manufacturer guidanceThickness. |
Warranty description | 50 year |
Uniclass | |
CAWS | E40/445 Insulating load transfer systems E40/445 Insulating load transfer systems G10/395 Thermal break connection plates E40/448 Thermal break connection plates E40/448 Thermal break connection plates |
Specification data - Thermal break connection plates
Classification data | |
Dimensions | |
Length | 2000 mm. |
Width | 1000 mm. 1220 mm. |
Thickness (maximum) | 6 mm. Guidance for specification option: 1000 x 2000 mm only. 10 mm. Guidance for specification option: 1220 x 2000 mm only. 12 mm. Guidance for specification option: 1220 x 2000 mm only. 16 mm. Guidance for specification option: 1220 x 2000 mm only. 20 mm. Guidance for specification option: 1220 x 2000 mm only. 25 mm. Guidance for specification option: 1220 x 2000 mm only. |
Compressive stress (maximum) | 105.4 MPa. |
Operating temperature (maximum) | 160°C. |
Operating temperature (minimum) | -40°C. |
Flexural strength | 115 MPa. |
Elongation at break | >20%. |
Density | 1.15 g/cm³. |
Water absorption | 0.95% (maximum). |
Co-efficient of linear thermal expansion | 8x10-5°C-1. |
Thermal Conductivity: | 0.184 W/m.K. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | United Kingdom |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Self-declared | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/unit) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 0 | |
Recyclability | No |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Product certifications

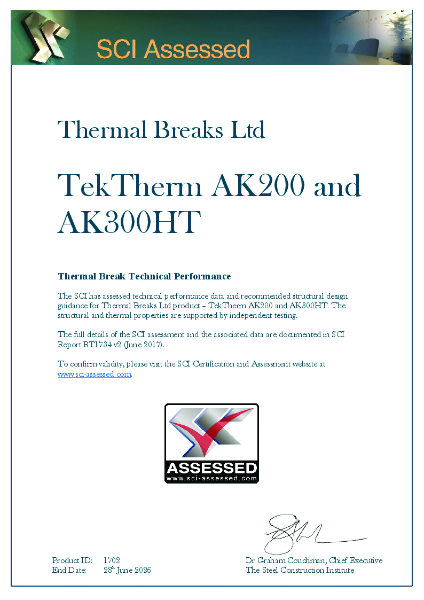

SCI Assessed
TekTherm™ SCI Assessed Certificate
Similar products from Thermal Breaks Ltd

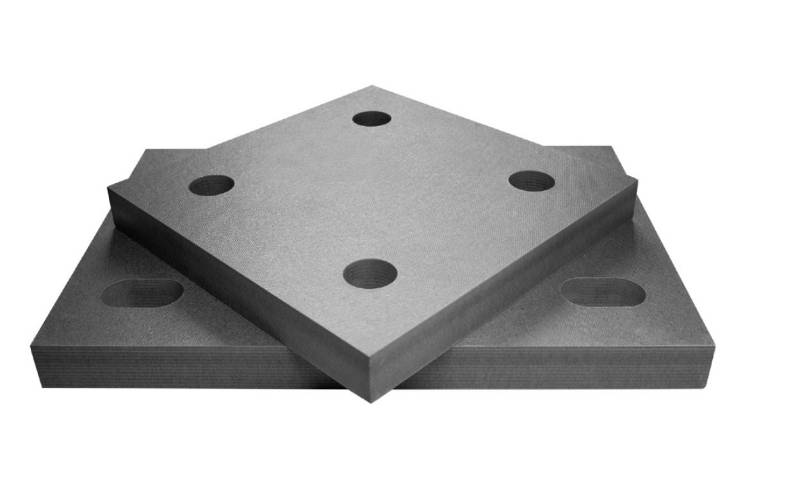

TekTherm™ AK-FR (A2 Fire Rated) - Thermal Break
