TECTOFIN RV

TECTOFIN RV

Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Wolfin

Acrylic synthetic rubber, fleece backed roofing membrane.

Jump to:
+44 (0)161 865 4444 www.wolfin.co.uk
Description

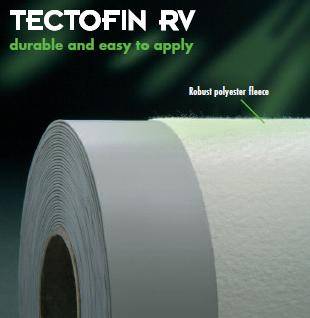

A fleece backed homogenous roofing membrane that combines high robustness and great flexibility. The specially designed polyester fleece fabric provides both dimensional stability and resistance to high tensile forces. It has a fleece-free edge for accurate and impenetrable homogenous welding of one strip to the next. Tectofin RV is suitable for new build and refurbishment projects and can be applied to the roof by all fixing methods (mechanically fixed with screws, bonded with adhesive or retained with ballast and green roof options). It is CE marked and is available in light grey and titan (dark) grey.

Features:

  • Anti-microbial action.
  • Backed with a polyester fabric.
  • Bitumen resistant.
  • Extremely tear proof.
  • Highly stable/ flexible at low temperatures.
  • Ozone and UV resistant.
  • Recyclable.
  • Resistant to penetration by plant roots.
  • Suited for solvent and hot air welding.

General information

Features

Anti-microbial action

Backed with a polyester fabric

Bitumen resistant

Extremely tear proof

Highly stable/ flexible at low temperatures

Show more

Material

Based on acrylic synthetic rubber

Uniclass 2015

Pr_25_57_51_66 Polymeric membranesPrimary

CAWS

J42/10 Warm deck roof covering

J42/400 Waterproof membrane

Specification data - Polymeric membranes

Product Reference

TECTOFIN RV

Thickness

2.2 mm

2.5 mm

Colour

Light grey

Titan grey

Standard product features

Material:

Based on acrylic synthetic rubber.

Technical properties:

  • Dimensional stability (to BS EN 1107-2): ≤ 1.0%.
  • Elongation (to BS EN 12311-2): ≥ 10%.
  • Foldability at low temperature (to BS EN 495-5): ≤ -20°C.
  • Impact resistance (to BS EN 12691): ≥ 500 N (2.2 mm thick), ≥ 600 N (2.5 mm thick).
  • Joint sheer resistance (to BS EN 12317-2): ≥ 500 N/50 mm.
  • Nail tear strength (to BS EN 12310-1): ≥ 500 N.
  • Peel strength overlap (to BS EN 12316-2): ≥ 250 N/50 mm.
  • Reaction to fire (to BS EN 13501-1): Class E.
  • Resistance to static loading (to BS EN 12730): ≥ 20 kg.
  • Tear resistance (to BS EN 12310-2): ≥ 250 N.
  • Tensile strength (to BS EN 12311-2): ≥ 600 N/50 mm.
  • Water vapour diffusion value (to BS EN 1931): 20 000 µ (± 30%).

Product Options

Roll width:

1100 mm or 1620 mm.

Roll length:

Available in lengths of 10 or 15 m dependent on the width.

Third party certifications
  • Certificate: 09/4620
