Teckentrup Uninsulated Fire Doors & Doorsets - Uninsulated Fire Doors & Doorsets
Verified by manufacturer 19 days ago

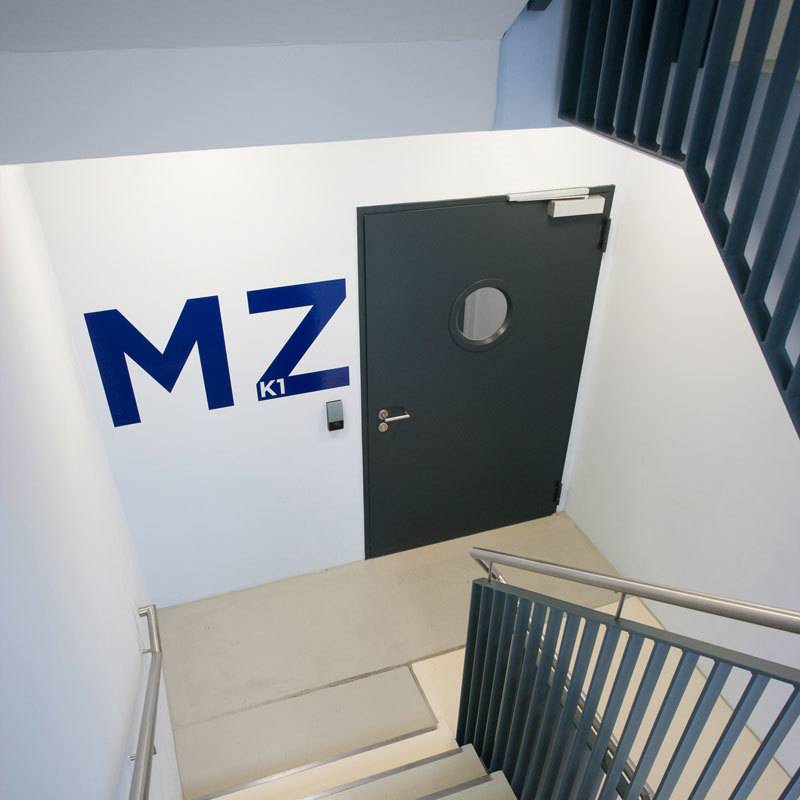

HC-BS Single leaf
HC-BS Single leaf
DAkkS
Certificate type
45mm thick uninsulated steel doors that are fire-resistant up to 240 minutes integrity.
Application
Suitable for the following fixing applications:
- Masonry.
- Concrete.
- Autoclaved aerated concrete.
- Partition systems.
Description
Uninsulated fire doors are 45 mm thick fire rated flush leaf doorsets.
Features and benefits:
- The doorsets are tested to BS EN 1634-1 up to 240 minutes integrity.
- Also available in stainless steel finish.
- Certificate number: CF 673.
General information
Color | Grey Guidance for specification option: Similar to RAL 9002. Other Guidance for specification option: Powder coated - optional, available in any RAL colour. |
Finish | Galvanized Guidance for specification option: Galvanized and prime coated grey white. Powder-coated Guidance for specification option: Polyester powder coated, RAL. |
Material | Steel |
Shape | Rectangle |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Stainless steel doorsets
Standard | To BS EN 1634-1. |
Third-party certification | Warrington Fire Certification CF 673. |
Configuration | Single leaf, single action. |
Performance | |
Acoustic performance | Not required.35 dB.Guidance for specification option: 1.5 mm sheet thickness. |
Frame | |
Material | Steel. |
Perimeter seals or inserts | Silicone compression seal. |
Finish | |
Coating | Galvanized and prime coated grey white.Guidance for specification option: Similar to RAL 9002. Polyester powder coated, RAL.Guidance for specification option: Optional, available in any RAL colour. Stainless steel.Guidance for specification option: Available upon request. |
Colour | Grey white.Guidance for specification option: Galvanized and prime coated finish only. RAL.Guidance for specification option: Insert requirement. |
Door leaf | |
Thickness | 45 mm.Guidance for specification option: Double skinned. |
Material | Steel. |
Glazing | |
Type | Not required.5 mm clear 'Firelite'.Guidance for specification option: 240 minute fire rating. 6 mm thick clear 'Pyran'.Guidance for specification option: Up to 120 minute fire rating. |
Finish | |
Coating | Galvanized and prime coated grey white.Guidance for specification option: Similar to RAL 9002. Polyester powder coated, RAL.Guidance for specification option: Optional, available in any RAL colour. Stainless steel.Guidance for specification option: Available upon request. |
Hardware | 3–5 stainless steel hinges.One overhead door closer.Mortice lock with stainless steel levers escutcheon prepared for profile cylinder.Stainless steel handle set. |
Accessories | None.Deadlock.Diverse lock and handle options.Dog bolt hinges.Extruded aluminium threshold with seal.Friction stay.Hole for magnetic contact.Louvre systems.Magnetic lock.Overhead door closer in accordance with BS EN 1154.Panic escape devices.Preparation for internal metal conduits.Stainless steel kick plate.Stainless steel pull handle.Stainless steel push plate.Viewer. |
Over and side panels | Not required. Required, As drawing. Guidance for specification option: Insert drawing reference. |
Sheet thickness | 1—1.5 mm. Guidance for specification option: Door leaf: 1–1.5 mm. Frame: Single rebate, 1.5 mm thickness. |
Structural opening size | 625–1391 x 3070 mm. Guidance for specification option: Size: -Single leaf:
|
FireRating | To BS EN 1634-1, 60 minutes. Guidance for specification option: 6 mm thick clear 'Pyran' glazing. To BS EN 1634-1, 120 minutes. Guidance for specification option: 6 mm thick clear 'Pyran' glazing. To BS EN 1634-1, 240 minutes. Guidance for specification option: Applicable only to 5 mm clear 'Firelite'.glazing. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Steel |
Recyclability | Manufacturer's standard. |
Third party certifications
DAkkS
GB_EPD_Teckentrup
