Teckentrup Steel Security Doors & Security Doorsets - Steel Security Doors & Security Doorsets

Verified by manufacturer 5 days ago

62-1 Secure 1

Teckentrup UK Ltd Variant:
Third party certifications:
  • DAkkS

    DAkkS

    Certificate type

Heavy-duty security doors suitable for external enveloping, escape doors and high traffic with LPS 1175 Issue 8 Security Standard achieving A1 (SR1) to D10 (SR4) ratings.

Jump to:
+44 (0)1925 924050 Website

Application

Suitable for the following fixing applications:

  • Masonry.
  • Concrete.
  • Autoclaved aerated concrete.
  • Lightweight construction.

Description

Features and benefits:

  • 62 mm thick single and double leaf.
  • LPS 1175 Issue 8 Security Standard achieving A1 (SR1), B3 (SR2), C5 (SR3), D5 and D10 (SR4) ratings.
  • LPS 1175 Issue 7 Security Standard achieving SR1, SR2 & SR3 ratings.
  • LPS 2081 Stealth A & B ratings.
  • Exova Security Standard STS202 achieving BR1, BR2 & BR3 ratings.
  • European Security Standard EN1627 achieving RC2, RC3 & RC4 ratings.
  • BS EN 1522 Bullet proof rating FB4.
  • BS EN 179 & BS EN 1125 Panic functions.
  • EN 1634-1 achieving 120 minutes' fire integrity and 60 minutes fire insulation.
  • European Standards EN 1628 & 1629 for static and dynamic loading.
  • ISO 12567-1 achieving a UD value of 1.1 W/m²/K.
  • ISO 12567-2 thermal insulation standard rated U-value 1.8 W/m²K.
  • EN 12207 for air permeability achieving Class 2/4* for a single and Class 1/3* for a double leaf door.
  • * Single point/multi-point locking.
  • EN 12208 for water tightness achieving Class 7A for a single and Class 6A for a double leaf door.
  • EN 12210 for wind resistance achieving Class 3/5 for a single and Class 1/3 for a double leaf door.
  • A 62 mm insulated door set, fitted with heavy duty ‘KO’ hinges has been tested to EN 1191 for repeated opening and closing to C5 level – 200 000 cycles.
  • DIN EN 20140 acoustic standard rated Rw 37 dB.

General information

Color

Silver

Grey

White

Finish

Powder-coated

Galvanized

Material

Steel

Stainless steel

Shape

Rectangle

Width

Bespoke

Manufacturer guidance

A range of sizes are available: consult manufacturer for details.

Height

Bespoke

Manufacturer guidance

A range of sizes are available: consult manufacturer for details.

Warranty description

-

Manufacturer guidance

Warranty is subject to application, location and specification.

Consult manufacturer for details.

Uniclass

Pr_30_59_24_52 Carbon steel doorsetsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

L20/510 Strongroom door

Specification data - Carbon steel doorsets

Standard

To DIN EN 1634-1, DIN 18095, DIN EN 20140/717, EN 1125, EN 179 and EN 1522.

Third-party certification

To LPS1175 Issue 8.

Configuration

Single leaf.

Doorset size

Guidance for specification option:

A range of sizes are available: consult manufacturer for details.

Performance

-

Fire resistance

-

Integrity

To DIN EN 1634-1, EI2-30.

To DIN EN 1634-1, EI2-60.

Smoke leakage

To EN 1634-3.

Reaction to fire

E60.

E120.

Acoustic performance

To DIN EN 20140 acoustic standard rated Rw 37 dB.

Strength and durability

To EN 1191, C5.

Thermal

To ISO 12567-2 thermal insulation standard rated U-value 1.8 W/m²K.

Intruder resistance

-

Minimum requirement

To LPS 1175, SR 1.

Manufacturer guidance

Security rating.

Application

Both sides.

Explosion resistance

-

Blast duration

On request.

Guidance for specification option:

Consult manufacturer.

Frame

-

Material

Steel.

Perimeter seals or inserts

Three-sided sealing with retractable bottom seal.

Finish

-

Coating

Polyester powder coated.

Guidance for specification option:

Door leaf and frame galvanized steel, polyester powder coated to any RAL colour, insert requirements.

Stainless steel.

Guidance for specification option:

Optional.

Texture

Satin.

Colour

RAL.

Guidance for specification option:

Any RAL colour. Insert requirement.

Stainless steel.

Guidance for specification option:

Optional.

Door leaf

-

Thickness

62 mm.

Core

Rebated on three sides with a bonded mineral wool core.

Material

Steel.

Finish

-

Coating

Polyester powder coated.

Guidance for specification option:

Door leaf and frame galvanized steel, polyester powder coated to any RAL colour, insert requirements.

Stainless steel.

Guidance for specification option:

Optional.

Texture

Satin.

Marbled.

External colour

RAL.

Guidance for specification option:

Any RAL colour. Insert requirement.

Stainless steel.

Guidance for specification option:

Optional.

Internal colour

RAL.

Guidance for specification option:

Any RAL colour. Insert requirement.

Stainless steel.

Guidance for specification option:

Optional.

Hardware

Mortice lock with lever/ knob prepared for profile cylinder.

Stainless steel handle set.

Handle pivoted on bearing with tumbler insert (Bb) and one Bb key.

Hinges.

Guidance for specification option:

Two KO heavy duty welded hinges with ball bearings and compensation rings for height adjustment. Hinge edge reinforced by internal steel plate.



Security bolts on the hinged edge.

Lock mechanism.

Guidance for specification option:

Lock mechanism installed within an inner enclosure to facilitate removal for maintenance or replacement.


Accessories

None.

Aluminium and steel louvres.

Aluminium rain guard.

Card readers.

Concealed overhead closers.

Deadlocks.

Digi locks.

Electric locks with power packs.

Electric strikes.

Floor seals.

Magnetic locks.

Marine grade PPC finishes.

Over panels solid, glazed or louvered.

Overhead closers to DIN EN1154.

Panic escape systems.

Viewers.

Frame

Corner frame 1.5–2 mm thick, with three-sided seal and bottom sill. Frame fixed with five screws on each side.

Guidance for specification option:

Special equipment:

  • Block.
  • Counter.
  • Closed frame.

Vision panel

Vision panel, 254 x 254 mm.

203 x 508 mm.

203 x 711 mm.

545 x 345 mm.

203 x 1473 mm.

Show more

Type

None.

ISO clear.

Wired.

Manufacturer guidance

Vision panel type.

Air permeability

To EN 12207 air permeability rated 2/4.

Watertightness

To EN 12208 water tightness rated 7A.

Wind resistance

To EN 12210 wind resistance rated C3/C5.

Frame width

576–1576 mm.

Guidance for specification option:

Outside frame.

Frame height

546–2796 mm.

Guidance for specification option:

Outside frame.

SecurityRating

Tested as per LPS1175 Issue 8, Security Rating A1 (SR1).

Insulation

Mineral fibre board.

Sheet thickness

1 mm.

1.5 mm.

Handing

DIN right or DIN left.

Hinges

Two KO with ball bearings, compensation rings for height adjustment.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Material

Steel

Stainless steel

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

52.85 kg CO₂ eq/m²

Self declared

Recyclability

Manufacturer's standard.

Guidance for specification option:

Specific parts of steel and stainless steel are recycled, plastics are thermally recycled. Residual fractions are sent to landfill.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Information can be provided upon request to the manufacturer.

Third party certifications

DAkkS

DAkkS

GB_EPD_Teckentrup

Literature

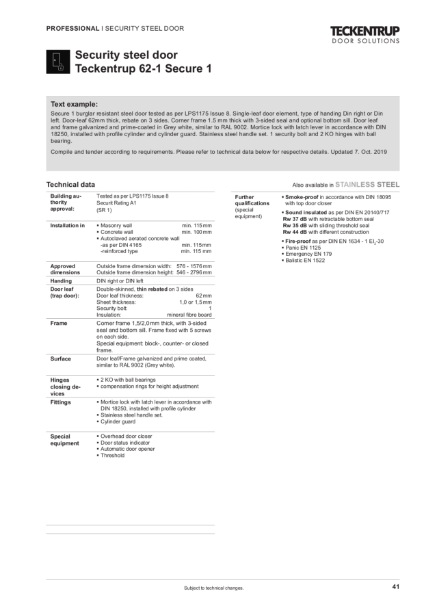

Security Steel Door LPS 1175 Issue 8 A1 (SR1) 62-1 Secure 1 (Technical Data)

Security Steel Door LPS 1175 Issue 8 A1 (SR1) 62-1 Secure 1 (Technical Data)

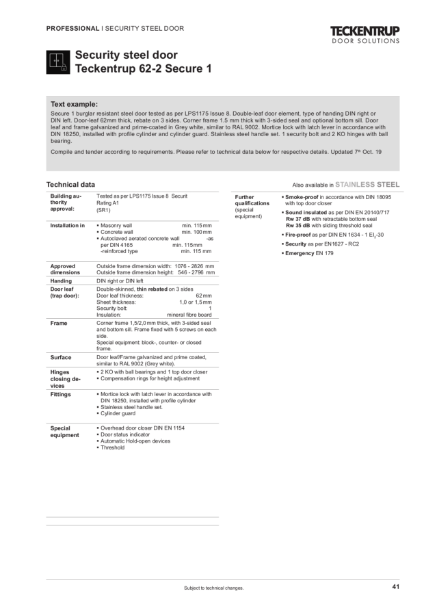

Security Steel Door LPS 1175 Issue 8 A1 (SR1) 62-2 Secure 1 (Technical Data)

Security Steel Door LPS 1175 Issue 8 A1 (SR1) 62-2 Secure 1 (Technical Data)

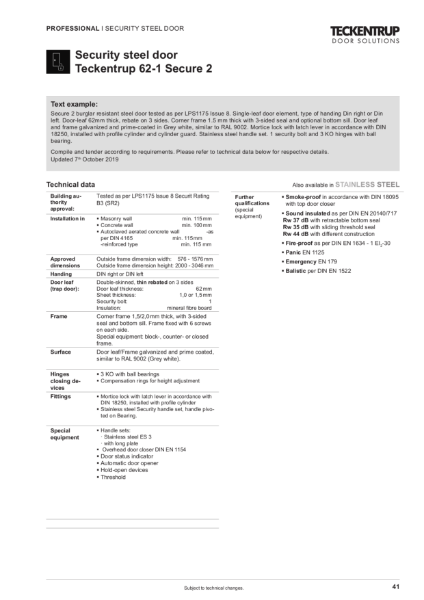

Security Steel Door LPS 1175 Issue 8 B3 (SR2) 62-1 Secure 2 (Technical Data)

Security Steel Door LPS 1175 Issue 8 B3 (SR2) 62-1 Secure 2 (Technical Data)

Security Steel Door LPS 1175 Issue 8 B3 (SR2) 62-2 Secure 2 (Technical Data)

Security Steel Door LPS 1175 Issue 8 B3 (SR2) 62-2 Secure 2 (Technical Data)

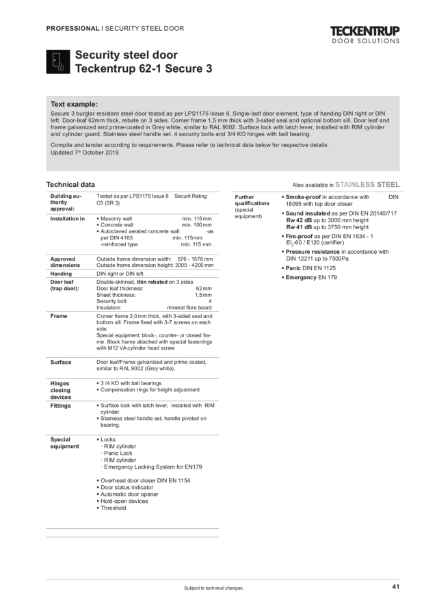

Security Steel Door LPS 1175 Issue 8 C5 (SR3) 62-1 Secure 3 (Technical Data)

Security Steel Door LPS 1175 Issue 8 C5 (SR3) 62-1 Secure 3 (Technical Data)

Security Steel Door LPS 1175 Issue 8 C5 (SR3) 62-2 Secure 3 (Technical Data)

Security Steel Door LPS 1175 Issue 8 C5 (SR3) 62-2 Secure 3 (Technical Data)

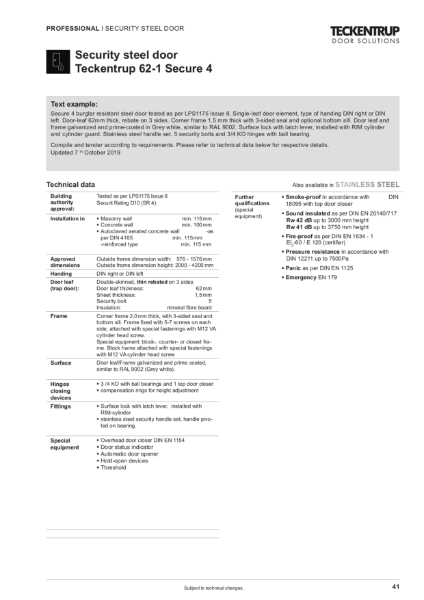

Security Steel Door LPS 1175 Issue 8 D10 (SR4) 62-1 Secure 4 (Technical Data)

Security Steel Door LPS 1175 Issue 8 D10 (SR4) 62-1 Secure 4 (Technical Data)

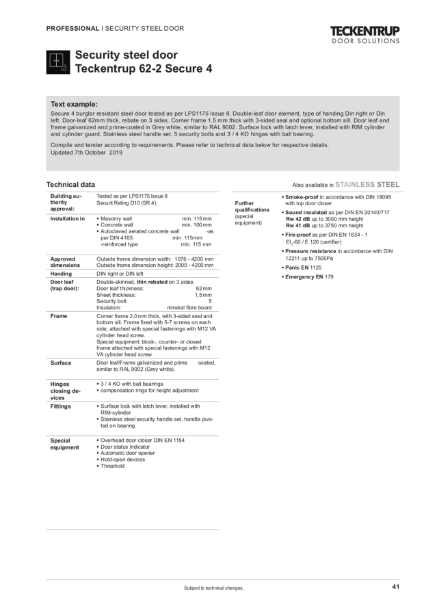

Security Steel Door LPS 1175 Issue 8 D10 (SR4) 62-2 Secure 4 (Technical Data)

Security Steel Door LPS 1175 Issue 8 D10 (SR4) 62-2 Secure 4 (Technical Data)

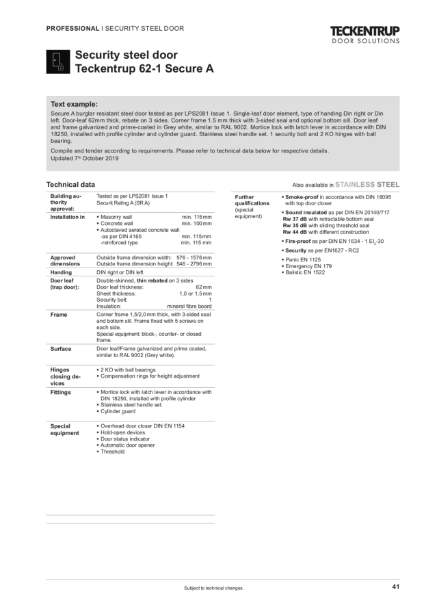

Security Steel Door LPS 2081 Issue 1 A (SR A) 62-1 Secure A (Technical Data)

Security Steel Door LPS 2081 Issue 1 A (SR A) 62-1 Secure A (Technical Data)

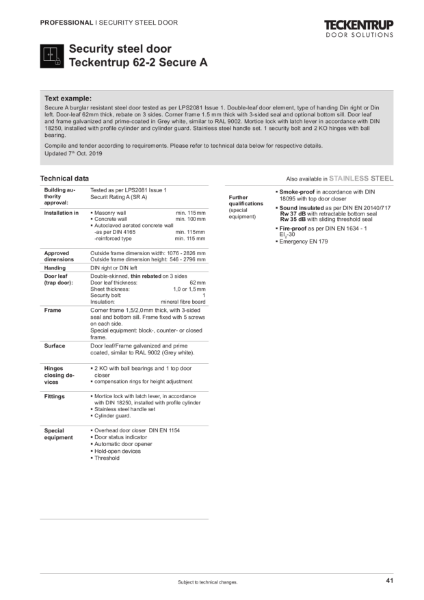

Security Steel Door LPS 2081 Issue 1 A (SR A) 62-2 Secure A (Technical Data)

Security Steel Door LPS 2081 Issue 1 A (SR A) 62-2 Secure A (Technical Data)

Security Steel Door LPS 2081 Issue 1 B (SR B) 62-1 Secure B (Technical Data)

Security Steel Door LPS 2081 Issue 1 B (SR B) 62-1 Secure B (Technical Data)

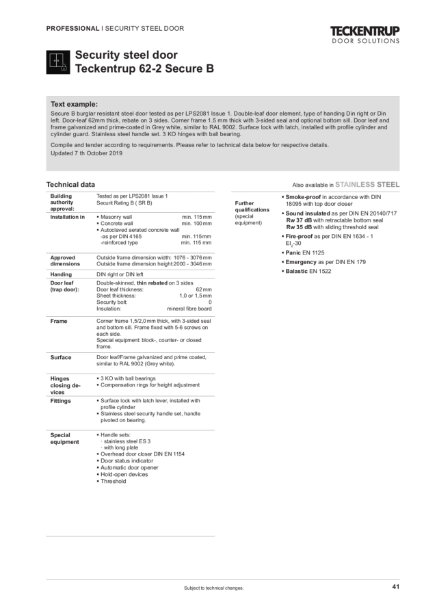

Security Steel Door LPS 2081 Issue 1 B (SR B) 62-2 Secure B (Technical Data)

Security Steel Door LPS 2081 Issue 1 B (SR B) 62-2 Secure B (Technical Data)

Modular Steel Security Doors LPS 1175 Issue 8 A1 (SR1) to D10 (SR4) & LPS 2081 A & B Ballistics BS EN 1522 FB4

Modular Steel Security Doors LPS 1175 Issue 8 A1 (SR1) to D10 (SR4) & LPS 2081 A & B Ballistics BS EN 1522 FB4

Steel Security Doors LPS 1175 Issue 8 A1 (SR1) to D10 (SR4) & LPS 2081 A & B Ballistics BS EN 1522 FB4

Steel Security Doors LPS 1175 Issue 8 A1 (SR1) to D10 (SR4) & LPS 2081 A & B Ballistics BS EN 1522 FB4

Steel Doorset Security Door Selector LPS 1175 SR3 & RC4 Rating EN1627

Steel Doorset Security Door Selector LPS 1175 SR3 & RC4 Rating EN1627

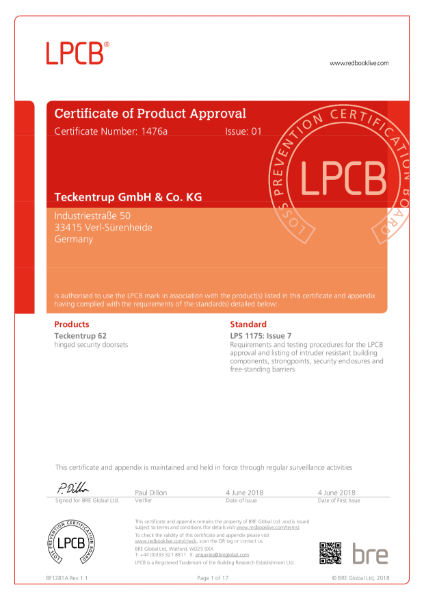

LPCB Certificate of Product Approval

LPCB Certificate of Product Approval

EN ISO 9001: 2008 Certificate

EN ISO 9001: 2008 Certificate

Environmental Product Declaration

Environmental Product Declaration

Case studies

Delivering unusual security rated doors for the Tate Modern

Delivering unusual security rated doors for the Tate Modern

Teckentrup - Data Centre Experts

Teckentrup - Data Centre Experts

West Burton (CCGT) Power Station

West Burton (CCGT) Power Station

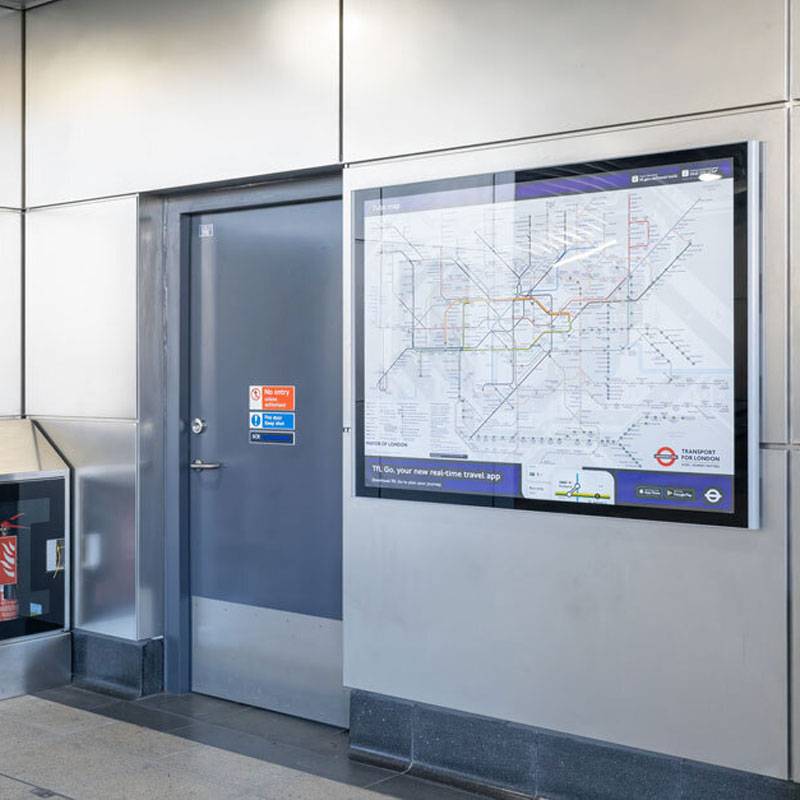

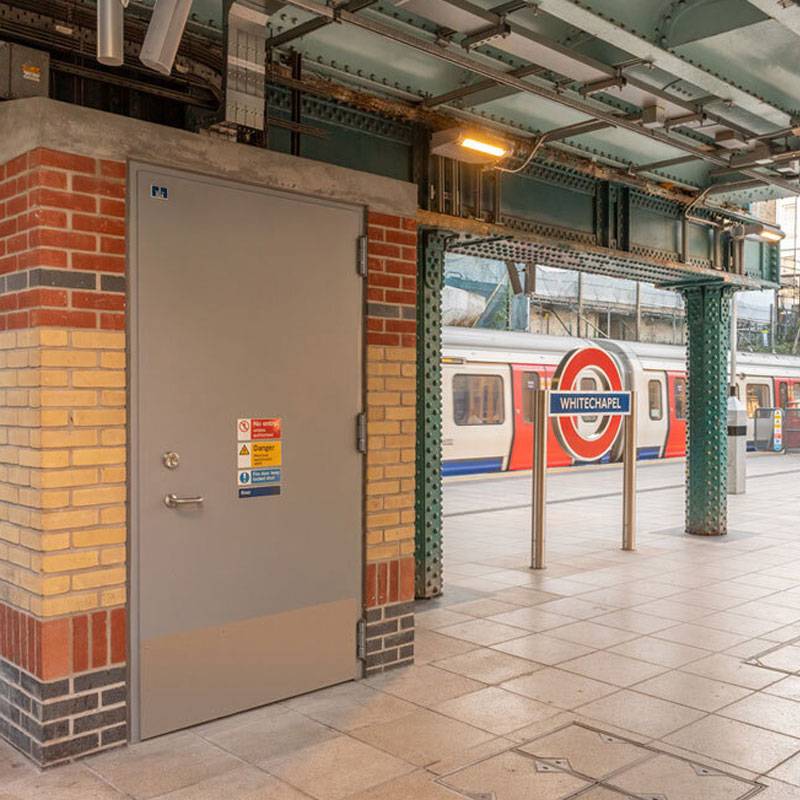

Whitechapel Station - The Elizabeth Line - The Full Story
