dW 67-1/ HS, Single leaf Rw 57 dB
dW 67-1/ HS, Single leaf Rw 57 dB
DAkkS
Certificate type
Steel skin door leaves and frames with open cell insulated cores and fillings eliminate resonances and ‘torturous sound paths’ for high levels of sound attenuation performance.
Application
Suitable for the following fixing applications:
- Masonry.
- Concrete.
- Autoclaved aerated concrete.
- Wooden frame.
Description
Acoustic steel doors are sound-insulated doors.
Features and benefits:
- Door leaves are double skinned.
- 67 mm thick single and double leaf doors available in grey white finish.
- Tested in accordance with DIN EN 20140 (rated Rw 53, 55 and 57 dB).
General information
Color | Grey Other Guidance for specification option: RAL colours available. |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle |
Width | 625 mm Guidance for specification option: Minimum. 1500 mm Guidance for specification option: Maximum. Bespoke Guidance for specification option: Width range between 625—1500 mm. |
Height | 1750 mm Guidance for specification option: Minimum. 3000 mm Guidance for specification option: Maximum. Bespoke Guidance for specification option: Height range between 1750—3000 mm. |
Warranty description | Manufacturer guidanceWarranty is subject to application, location and specification. Consult manufacturer for details. |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Stainless steel doorsets
Standard | To DIN EN 20140. |
Configuration | Single leaf. |
Doorset size | Guidance for specification option: Insert requirement.
|
Performance | |
Fire resistance | |
Integrity | Non fire rated. |
Reaction to fire | Non-fire rated. |
Acoustic performance | Rw 57 dB. |
Strength and durability | To EN 1191, C5. |
Intruder resistance | |
Minimum requirement | Up to EN 1627, RC2. |
Conformity | To EN1627. |
Frame | |
Material | Steel. |
Threshold | Retractable bottom seal.Sliding threshold seal. |
Perimeter seals or inserts | Silicone compression seal. |
Finish | |
Coating | Galvanized and prime coated grey white.Guidance for specification option: Similar to RAL 9002. Polyester powder coated, RAL.Guidance for specification option: Optional, available in any RAL colour. |
Texture | Satin. |
Colour | Grey white.RAL. |
Door leaf | |
Thickness | 67 mm. |
Material | Steel. |
Finish | |
Coating | Galvanized and prime coated grey white.Guidance for specification option: Similar to RAL 9002. Polyester powder coated, RAL.Guidance for specification option: Optional, available in any RAL colour. |
Texture | Satin. |
External colour | Grey white.RAL.Guidance for specification option: Insert requirements. |
Internal colour | Grey white.RAL.Guidance for specification option: Insert requirements. |
Hardware | Two three piece KO hinges with ball bearings. |
Accessories | Guidance for specification option: Various items of special ironmongery are available, consult manufacturer and insert requirements. |
Door leaf | Double skinned. |
Frame | 2 mm thick corner frame. Guidance for specification option: Standard. 2 mm counter frame. 2 mm single rebate 'block' frame. 2 mm closed frame. |
Ironmongery | Mortice lock with lever/knob in acc with DIN 18250 prepared for profile cylinder. FS round handle set black (plastic). Handle pivoted on bearing with tumbler insert (Bb) and 1 Bb key. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 52.85 kg CO₂ eq/m² Self declared |
Recyclability | Manufacturer's standard Manufacturer guidanceSpecific parts of steel and stainless steel are recycled, plastics are thermally recycled. Residual fractions are sent to landfill. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceInformation available on request; consult manufacturer for details. |
Third party certifications
DAkkS
GB_EPD_Teckentrup
Literature
Teckentrup Steel Door & Steel Doorset Guide - Fire Doors, Security Doors, Acoustic Doors, Ballistic Doors, External Enveloping Steel Doors, All Glass Fire Doors
Steel Doorset Acoustic Door Selector Rw 57dB DIN EN 20140
Teckentrup Stainless Steel Door & Doorsets for Fire, Security, Smoke and Acoustic applications in architectural settings, clean environments, high stress & chemical sites.pdf

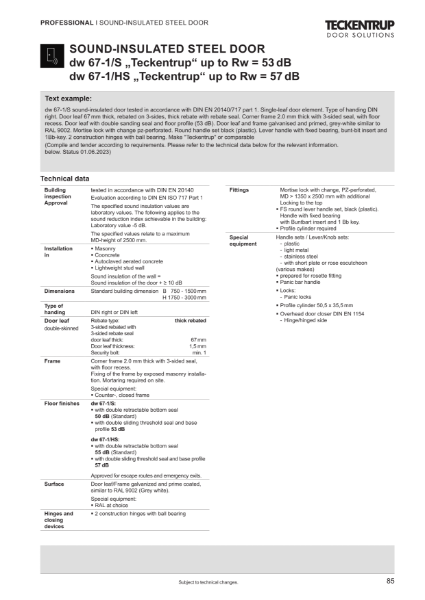

Sound Insulated Door dw67-1/S/HS (Rw 57 dB) (Technical Data)

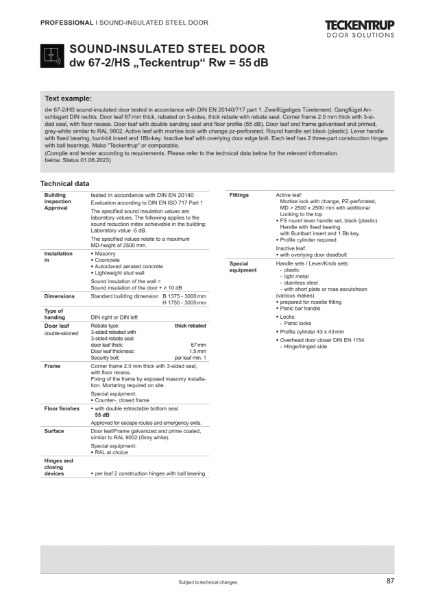

Sound Insulated Door dw67-2/HS (Rw 55 dB) (Technical Data)
