Teckentrup Roller Shutter Thermo Teck - Steel Roller Shutter Door
Verified by manufacturer 16 days ago
DAkkS
Certificate type

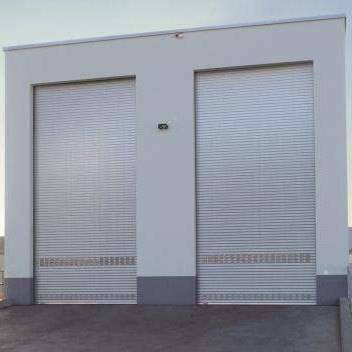

Versatile, compact insulated roller shutters and grilles suitable for external and internal applications.
Application
Suitable for the following fixing applications:
- Masonry.
- Concrete.
- Steel.
- Autoclaved aerated concrete.
- Wooden framework.
Description

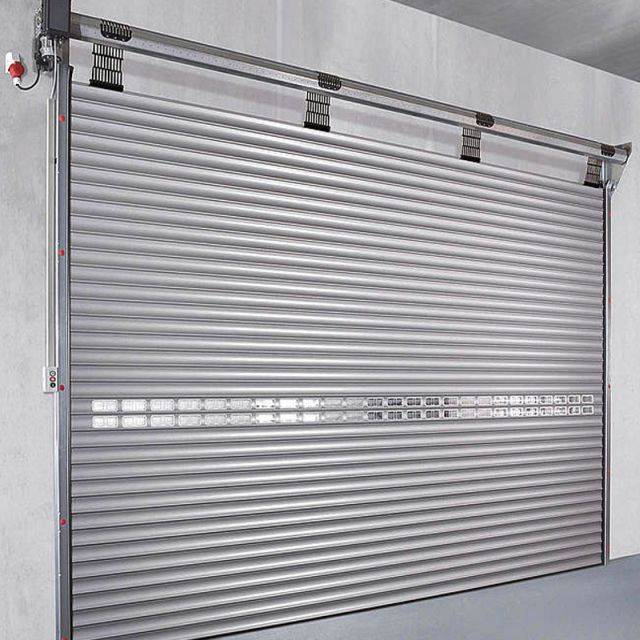

The roller shutter thermo teck is double-skinned, and thermally insulated. It is made of steel profiles and galvanized consoles.
Features and benefits:
- Resistance to wind load in accordance with EN 12424 class 2.
- With header seal and prime coated winding shaft.
- Door curtain: Hinge-like interconnected galvanized steel.
- Glazing: ThermoTeck synthetic glazing, crystal clear, approximately 150 x 55 mm.
- Bottom seal: Double-skinned box profile made of aluminium with permanently elastic and frost-proof EPDM profile hose seal for a sealed bottom door edge.
- End caps: Robust, wear and corrosion-free plastic parts for fixing the profiles.
- Wind hooks: For high wind loads and large widths; the doors are equipped with wind hooks and a reinforced bottom seal.
- Guide rails: Robust, steel profiles with wear-proof, easy-to-change plastic guides.
- Consoles: Galvanized steel.
- Locking: All locks connected to door control unit via safety switches. Bottom profile lockable from inside via two locking rods with profile cylinder. Bottom profile lockable from inside and outside via two locking rods with profile cylinder. Sliding bolt on the inside.
General information
Color | Grey Guidance for specification option: Polyester powder coated, RAL. Optional available in any RAL color. |
Finish | Galvanized Powder-coated |
Material | Steel |
Shape | Rectangle |
Width | Bespoke 1000 mm 11500 mm Manufacturer guidance1000–11500 mm. Up to 15000 mm width (wind load class: 2); up to 18000 mm width (wind load class: 1) available on request. |
Height | 1000 mm 12000 mm |
Warranty description | Manufacturer guidanceWarranty is subject to application, location and specification. Consult manufacturer for details. |
Uniclass | |
CAWS | L20/610 Roller shutters/ curtains |
Specification data - Roller shutters
Standard | To EN ISO 12567-1, EN 12426, EN 12424, and EN 12489. |
Format | Thermally insulated. |
Arrangement | Vertical. |
Performance | |
Watertightness | To BS EN 12489, class 0. |
Resistance to wind load | To BS EN 12424, class 2. |
Acoustic performance | RW 20 dB. |
Thermal resistance | To EN ISO 12567-1, 3.5 W/m²k (typical). |
Air permeability | To BS EN 12426, class 0. |
Shutter curtain | |
Lath material | Galvanized steel.Guidance for specification option: Hinge-like interconnected galvanized steel. |
Finish and colour | Coil-coated steel.Galvanized steel.Manufacturer guidanceOptional, available in any RAL colour. |
Frame and guides | |
Material | Steel. |
Finish | Coil-coated steel.Galvanized steel. |
Colour | Polyester powder coated, RAL.Guidance for specification option: Optional, available in any RAL colour. |
Operation | |
Mode | Automatic. |
Control | Chain drive.Guidance for specification option: With separate anti-drop device. Direct mount drive.Guidance for specification option: With integrated anti-drop device. |
Hardware | Locks.Guidance for specification option: All locks connected to door control unit via safety switches. Bottom profile lockable from inside via two locking rods with profile cylinder. Bottom profile lockable from inside and outside via two locking rods with profile cylinder. Sliding bolt on the inside. |
Accessories | Guidance for specification option: Various items of special equipment and control devices are available, consult manufacturer and insert requirements. |
Glazing | ThermoTeck synthetic glazing. |
Colour | Crystal clear. Manufacturer guidanceGlazing colour. |
Size | 150 x 55 mm. Manufacturer guidanceGlazing size. |
Sealant | Bottom seal. Guidance for specification option: Double-skinned box profile made of aluminium with permanently elastic and frost-proof EPDM profile hose seal for a sealed bottom door edge. |
Guide rails | Steel profiles with wear-proof, easy-to-change plastic guides. |
End caps | Wear and corrosion-free plastic parts for fixing the profiles. |
Hooks | Wind hooks. Guidance for specification option: For high wind loads and large widths; the doors are equipped with wind hooks and a reinforced bottom seal. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 33.19 kg CO₂ eq/m² Self declared |
Recyclability | Manufacturer's standard. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceInformation available on request; consult manufacturer for request. |
Third party certifications
DAkkS
EPD Sectional doors & Roller Shutters
Literature
Teckentrup Industrial Insulated Roller Shutters and Doors
ThermoTeck Roller Shutters (Technical Data: Shutter 4020)
ThermoTeck Roller Shutters (Technical Data: Shutter ThermoTeck)
Environmental Product Declaration
EN ISO 9001: 2008 Certificate
