Sectional door SL 40
Sectional door SL 40
DAkkS
Certificate type
Energy efficient 40mm/80mm double-walled industrial sectional doors with insulating properties - UD value of 0.59 – 1.2 W(m2)K.
Application
- For industrial and commercial applications.
- Suitable for installation in masonry, concrete, steel and construction.
Description
A range of sectional doors for industrial and commercial applications. The industrial sectional doors from the 40 Series are based on a double-walled and 40 mm thick door leaf design. As standard, they are equipped with a special PU hard foam core. The 80 Series industrial sectional doors have a door leaf thickness of 80 mm. With the SL 80 and SLW 80 door types, heat insulation including glazing elements is possible.
Features and benefits:
- Extreme robustness.
- Reliable operation.
- Low-noise operation.
- Safe operation.
- Design-oriented surfaces.
- Optimum light solutions.
- Aesthetically pleasing.
General information
Color | White Other |
Finish | Textured Anodized Powder-coated |
Material | Steel |
Shape | Rectangle |
Width | 2000 mm Guidance for specification option: Minimum. 8000 mm Guidance for specification option: Maximum. Bespoke |
Height | 1875 mm Guidance for specification option: Minimum. 6000 mm Guidance for specification option: Maximum. Bespoke |
Uniclass | |
CAWS | L20/60 Doors L20/615 Sectional overhead doors |
Specification data - Sectional overhead doorsets
Grade | External. |
Arrangement | |
Type | Vertical lift. |
Track system | Lateral closed, profiled angular frame, hot-dipped galvanized steel, with screwed guide rail. Lateral rubbing stripe with sealing lip. |
Door panels | |
Type | Aluminium framed with double glazed infill.Aluminium framed with triple glazed infill.Aluminium framed with six chamber multi-skin sheet infill.Aluminium framed with perforated sheet infill.Aluminium framed with expanded grille infill. |
Finish | Anodized. |
Operation | |
Activation | Manual - Handle inside including rope.Manual - Handle inside / footboard outside including rope.Manual - Chain hoist.Electrical - Shaft mount drive, chain drive.Guidance for specification option: Shaft drive, chain drive, three-phase voltage 400V 3~Ph, 50 Hz, 60% ED, protection class IP 65, with emergency hand crank, TÜV approved. Electrical - Shaft drive with alternating voltage.Guidance for specification option: Shaft drive with alternating voltage 230 Volt 1~Ph,50 Hz, 60% ED, protection cl. IP 65, with emergency hand crank, TÜV approved, combined with a frequency converter control with “soft”-start and “soft” stop. Electrical - Direct drive.Guidance for specification option: Direct drive as springless door without weight compensation, three-phase voltage 400V 3~Ph, 50Hz, 60% ED, protection class IP 65, with emergency hand crank, TÜV approved, safety device integrated. |
Control | Push button "Open – Stop – Close".Guidance for specification option: Function without closing edge safety device, control voltage 24V safety extra low voltage, protection class IP 65, push buttons open-stop-close. Pulse control.Guidance for specification option: Automatic mode “close“ in connection with closing edge safety device. Radio remote control.Automatic closing in combination with traffic lights.Traffic control.Manufacturer guidanceFor shaft and chain drives, ready to plug pre-wired and with CEE-plug. In the basic usage noticed as deadman-control. |
Accessories | Not required.Wicket door - low threshold 23 mm.Wicket door - 85 mm threshold.Wicket door- 200 mm threshold.Casing.Fixed panels matching door.Side door N53 with upper casing.Stop rail.Ventilation grille.Manufacturer guidanceWicket door Overhead door closer with slide without locking unit. Mortice lock, prepared for PC (30.5/30.5). Lever/lever made of aluminium (F1). Profile edging made of aluminium E6/EV1. Further locks, sets, coatings, etc. -optionally. |
Seals | EPDM floor, header and centre seal. |
Fitting | N. Guidance for specification option: Normal fitting. ND . Guidance for specification option: Normal fitting which follows the shape of the roof. HL. Guidance for specification option: High lift guide rail fitting. HLU. Guidance for specification option: High lift guide rail fitting + bottom torsion spring shaft. HLD. Guidance for specification option: High lift guide rail fitting which follows the shape of the roof. |
Sustainability data
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Steel |
Recyclability | Manufacturer's standard. |
Third party certifications
DAkkS

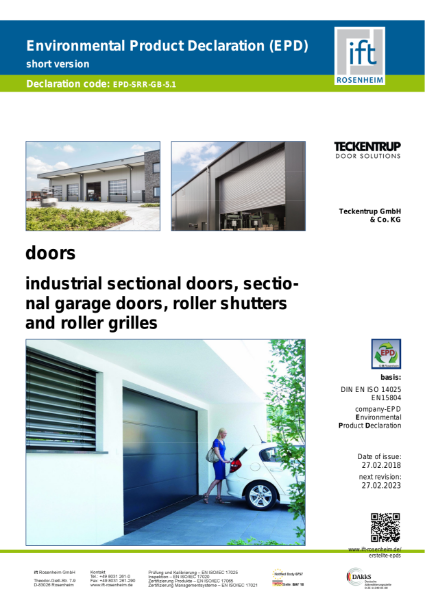

EPD Sectional doors & Roller Shutters
Literature

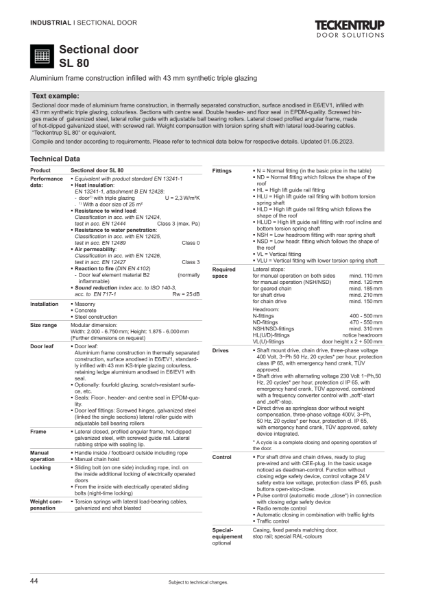

Sectional Door "Type SL 80" (Technical Data)

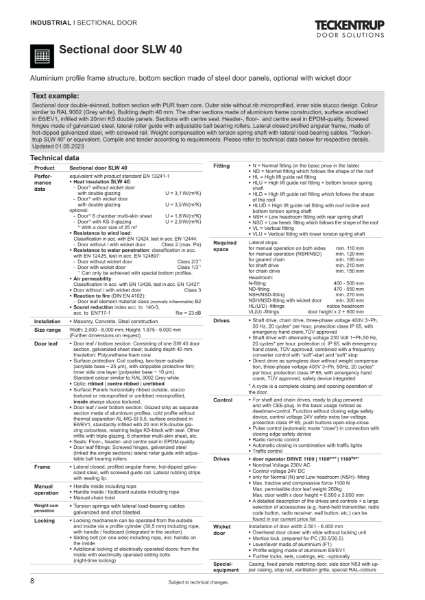

Sectional Door "Type SLW 40" (Technical Data)

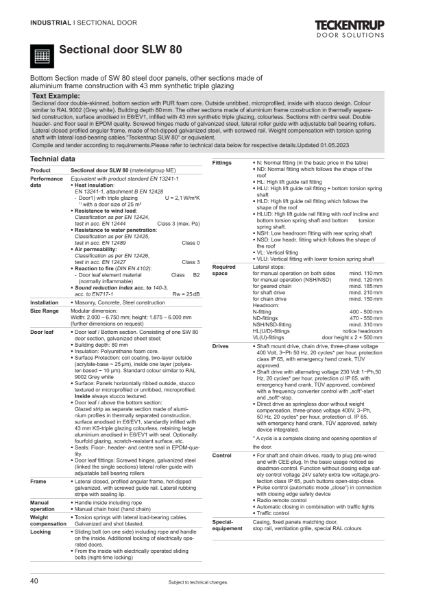

Sectional Door "Type SLW 80" (Technical Data)

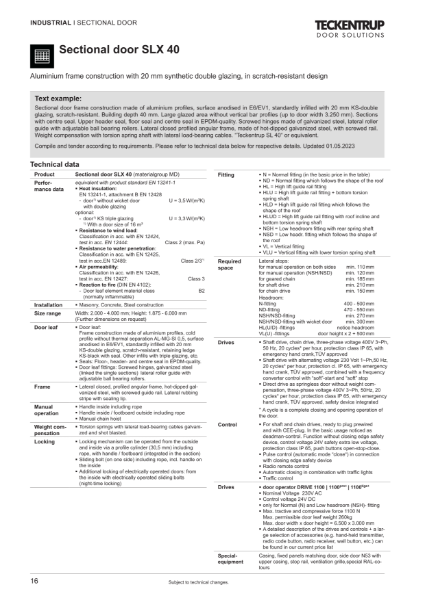

Sectional Door "Type SLX 40" (Technical Data)

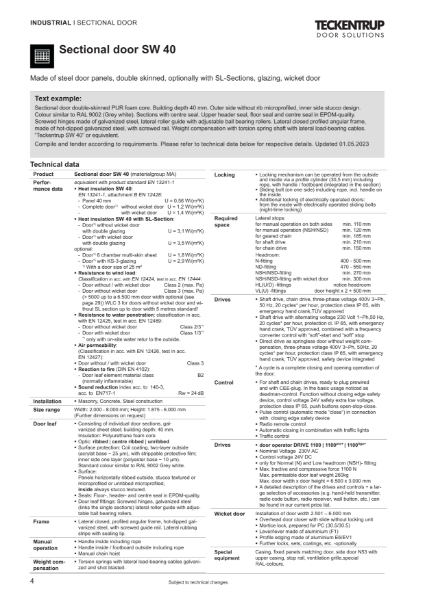

Sectional Door "Type SW 40" (Technical Data)

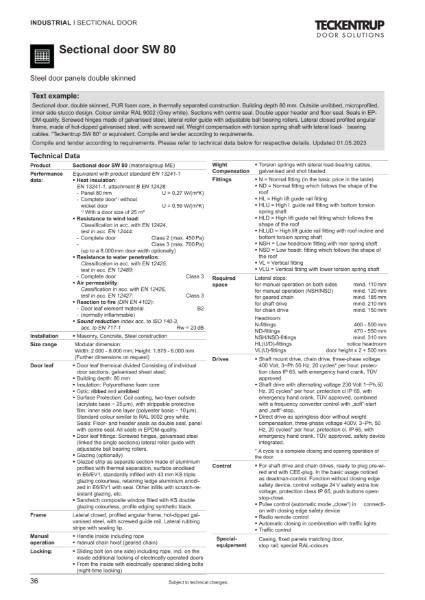

Sectional Door "Type SW 80" (Technical Data)
Teckentrup Insulated Industrial Sectional Doors, Steel, Aluminium and fully glazed 40mm and 80mm sections U value 0.58

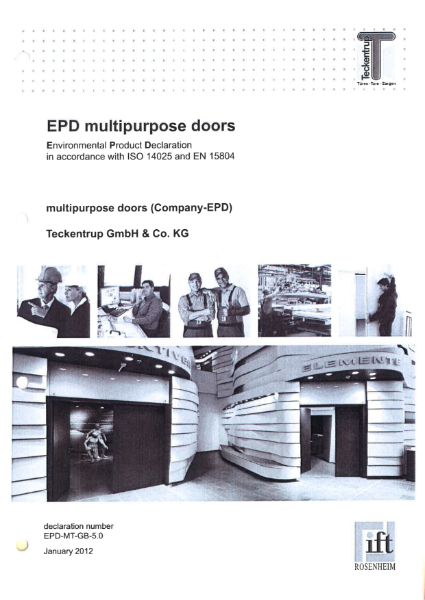

Environmental Product Declaration

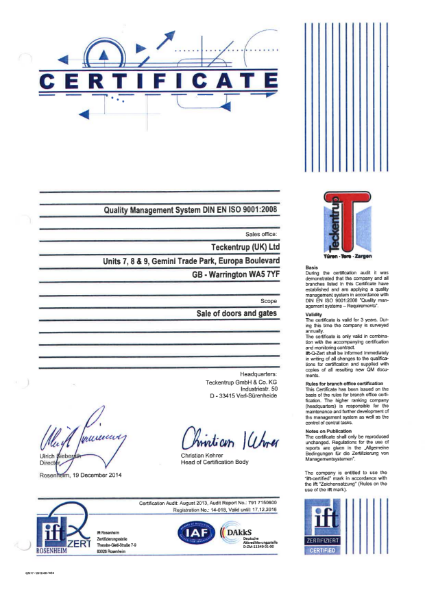

EN ISO 9001: 2008 Certificate
