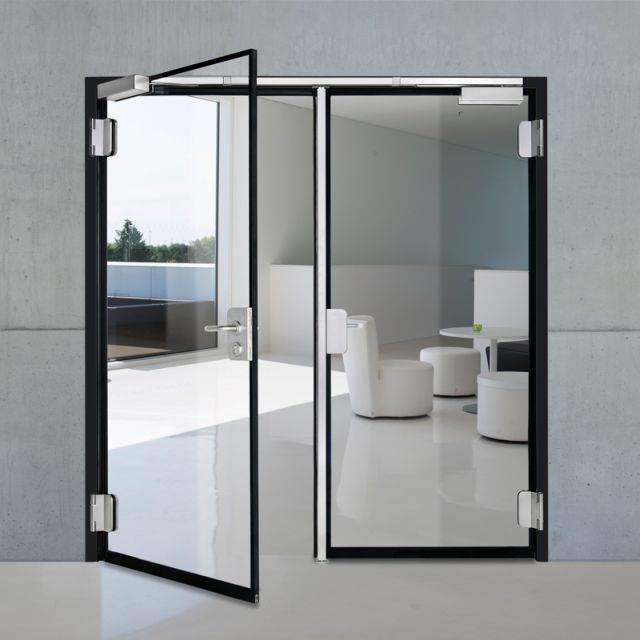

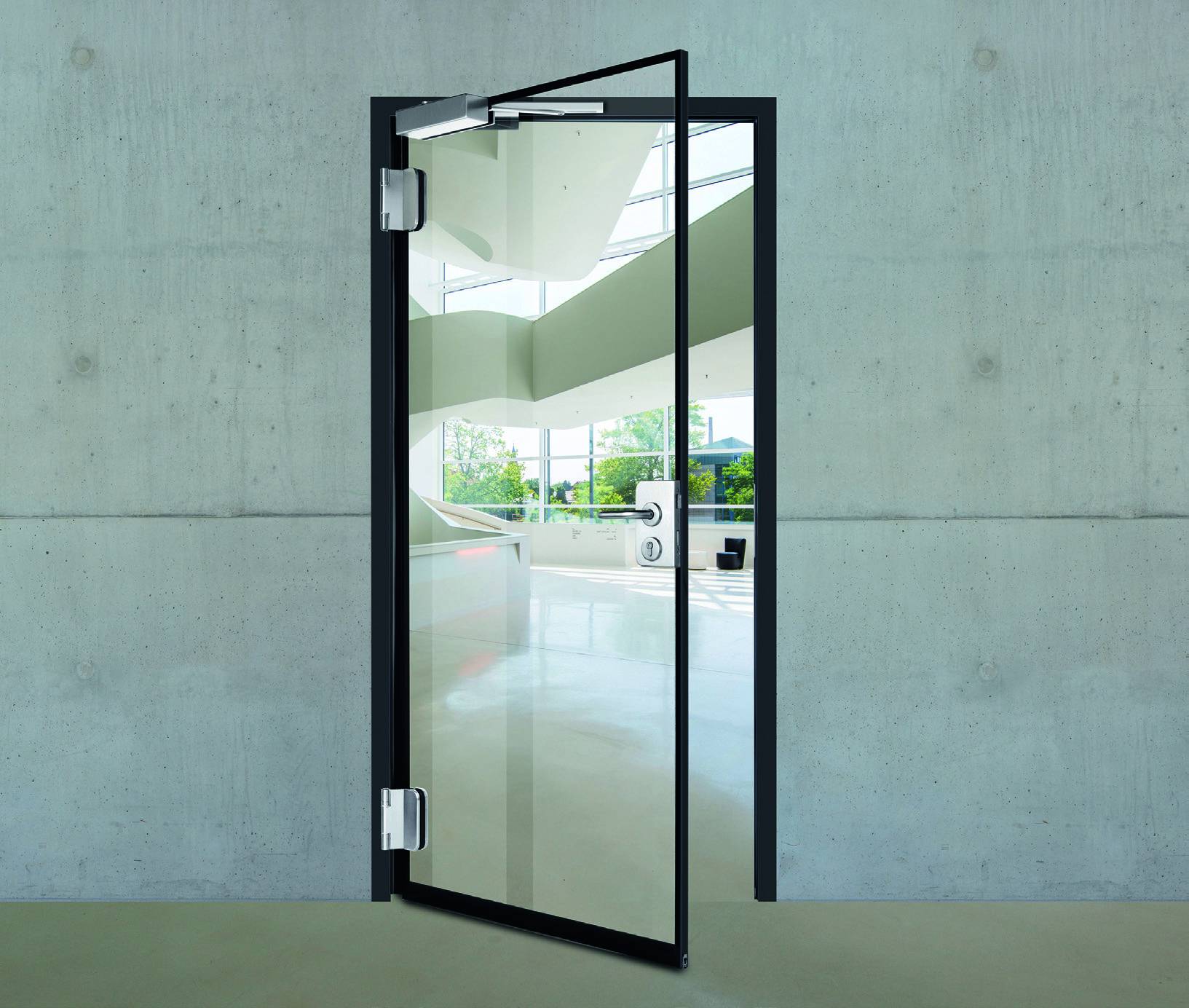

Teckentrup GL Glass Insulated Fire Doors & Doorsets - Glass Insulated Fire Doors

Verified by manufacturer 1 month ago

T 30-1-FSA

Teckentrup UK Ltd Variant:
Third party certifications:
  • DAkkS

    DAkkS

    Certificate type

All glass fire-resistant and smoke-proof frameless fire protection doors for maximum transparency.

Jump to:
+44 (0)1925 924050 Website

Application

Suitable for the following fixing applications:

  • Masonry (minimum thickness 175 mm).
  • Concrete (minimum thickness 140 mm).
  • Autoclaved aerated concrete (minimum thickness 175 mm).

Description

Glass insulated fire doors are 27 mm thick, frameless single/double-leaf glass-doors with a choice of two finishes.


Features and benefits:

  • To BS EN1634-1 fire standard rated EI30
  • To BS EN EN1634-3 smoke resistance
  • To BS EN 20140 / BS EN 717-1up to Rw 34 dB

General information

Color

White

Guidance for specification option:

Frame: Galvanized and prime coated in traffic white (similar to RAL 9016).

Finish

Galvanized

Guidance for specification option:

Frame: Galvanized and prime coated.

Satin

Guidance for specification option:

Fitting covers: Stainless steel (1.4301) grinded with grain size 240

Material

Glass

Stainless steel

Shape

Rectangle

Width

1375 mm

2500 mm

Bespoke

Height

1750 mm

2500 mm

Bespoke

Warranty description

-

Manufacturer guidance

Warranty is subject to application, location and specification. Consult manufacturer for details.

Third party certifications

DAkkS

DAkkS

GB_EPD_Teckentrup

Literature

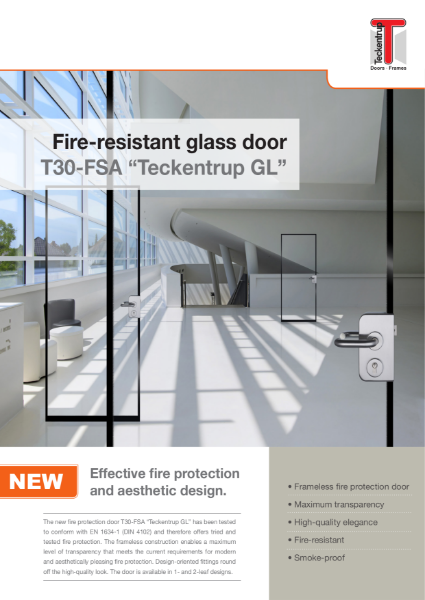

Fire-resistant glass door T30-FSA “Teckentrup GL”

Fire-resistant glass door T30-FSA “Teckentrup GL”

Teckentrup Steel Door & Steel Doorset Guide - Fire Doors, Security Doors, Acoustic Doors, Ballistic Doors, External Enveloping Steel Doors, All Glass Fire Doors

Teckentrup Steel Door & Steel Doorset Guide - Fire Doors, Security Doors, Acoustic Doors, Ballistic Doors, External Enveloping Steel Doors, All Glass Fire Doors

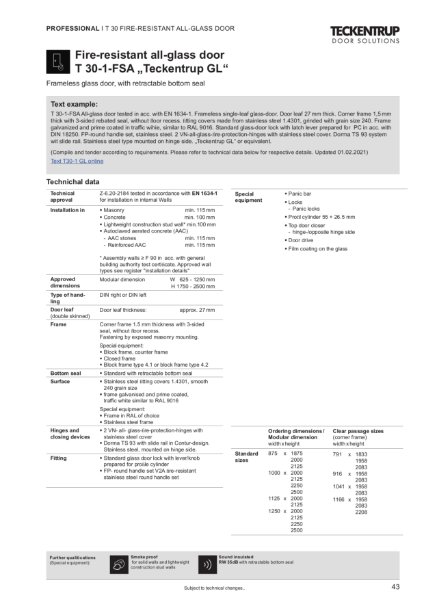

All-Glass Door T30-1-FSA „Teckentrup GL“ (Technical Data)

All-Glass Door T30-1-FSA „Teckentrup GL“ (Technical Data)

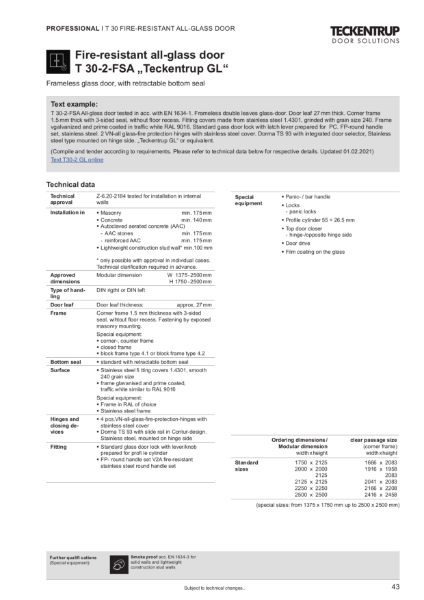

All-Glass Door T30-2-FSA „Teckentrup GL“ (Technical Data)

All-Glass Door T30-2-FSA „Teckentrup GL“ (Technical Data)

EN ISO 9001: 2008 Certificate

EN ISO 9001: 2008 Certificate

Environmental Product Declaration

Environmental Product Declaration

Case studies

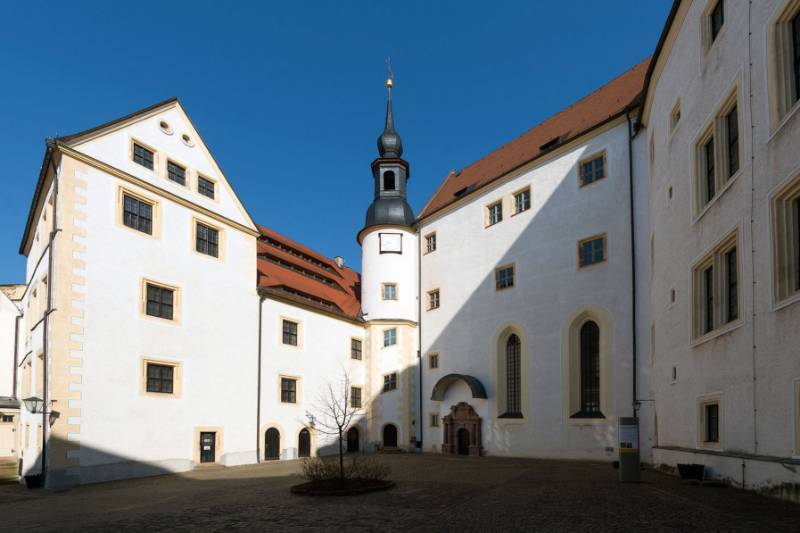

Colditz castle: Teckentrups fire-protection in a historical building with all glass fire doors and fire doorsets creates a brilliantly sympathetic fire protection solution

Colditz castle: Teckentrups fire-protection in a historical building with all glass fire doors and fire doorsets creates a brilliantly sympathetic fire protection solution
