Teckentrup GL Glass Insulated Fire Doors & Doorsets - Glass Insulated Fire Doors

Verified by manufacturer 8 days ago

T 30-1-FSA

Teckentrup UK Ltd Variant:
Third party certifications:
  • DAkkS

    DAkkS

    Certificate type

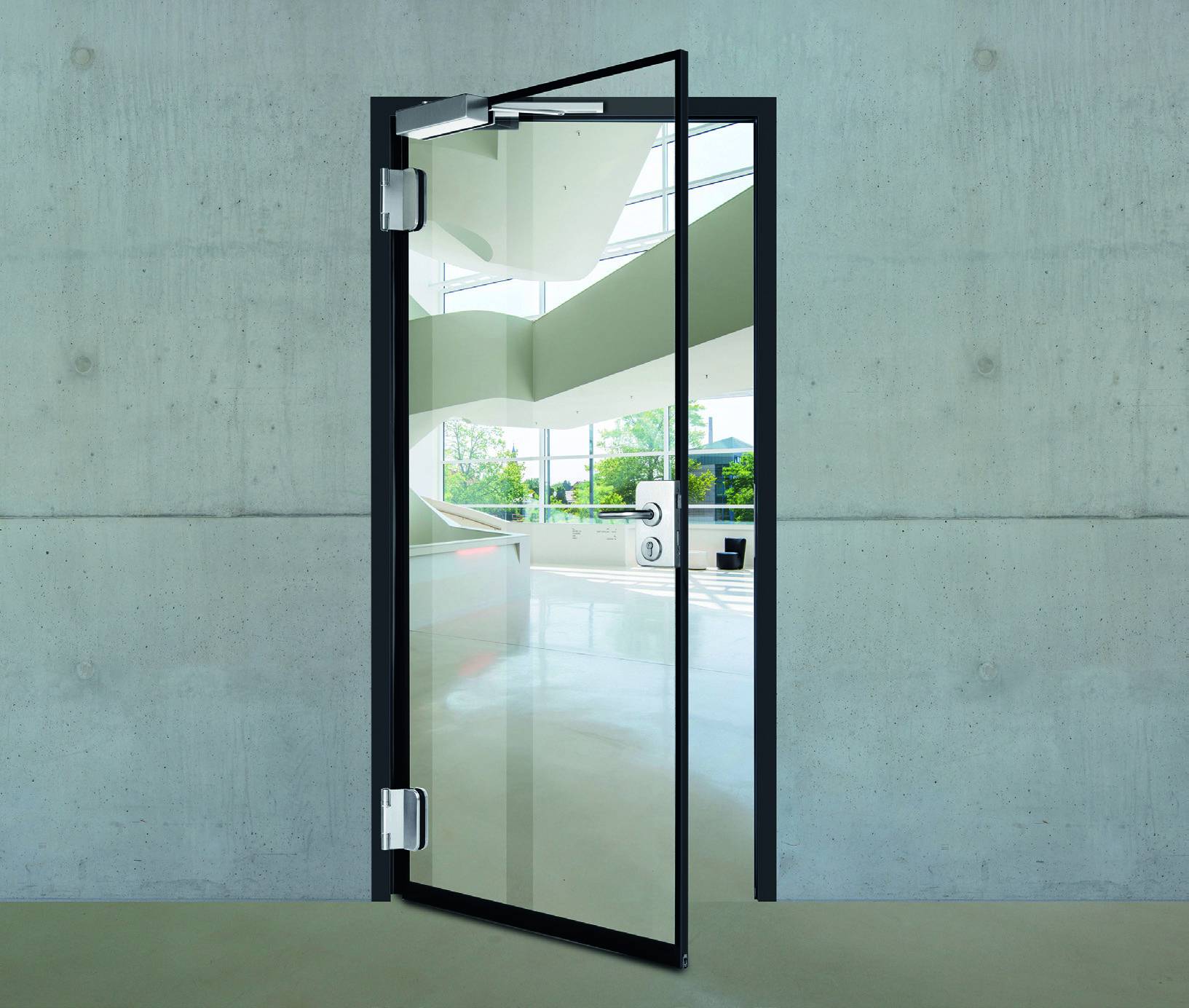

All glass fire-resistant and smoke-proof frameless fire protection doors for maximum transparency.

Jump to:
+44 (0)1925 924050 Website

Application

Suitable for the following fixing applications:

  • Masonry (minimum thickness 175 mm).
  • Concrete (minimum thickness 140 mm).
  • Autoclaved aerated concrete (minimum thickness 175 mm).

Description

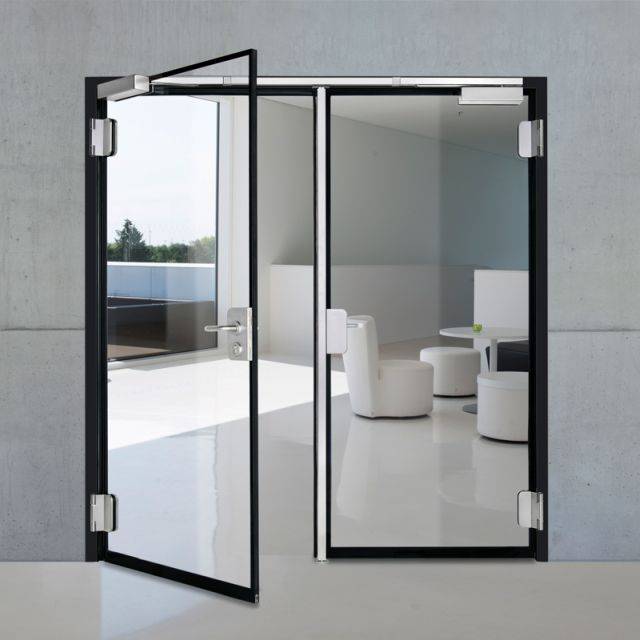

Glass insulated fire doors are 27 mm thick, frameless single/double-leaf glass-doors with a choice of two finishes.


Features and benefits:

  • To BS EN1634-1 fire standard rated EI30
  • To BS EN EN1634-3 smoke resistance
  • To BS EN 20140 / BS EN 717-1up to Rw 34 dB

General information

Color

White

Guidance for specification option:

Frame: Galvanized and prime coated in traffic white (similar to RAL 9016).

Finish

Galvanized

Guidance for specification option:

Frame: Galvanized and prime coated.

Satin

Guidance for specification option:

Fitting covers: Stainless steel (1.4301) grinded with grain size 240

Material

Glass

Stainless steel

Shape

Rectangle

Width

1375 mm

2500 mm

Bespoke

Height

1750 mm

2500 mm

Bespoke

Warranty description

-

Manufacturer guidance

Warranty is subject to application, location and specification. Consult manufacturer for details.

Uniclass

Pr_30_59_23_32 Frameless glass door leavesPrimary

CAWS

L20/45 Doors

L20/460 Frameless glass doors

Specification data - Frameless glass door leaves

Format

Single leaf.

Thickness

27 mm.

Door leaf size

875 x 1875 mm.

Guidance for specification option:

791 x 1833 mm clear opening.

875 x 2000 mm.

Guidance for specification option:

791 x 1958 mm clear opening.

875 x 2125 mm.

Guidance for specification option:

791 x 2083 mm clear opening.

1000 x 2000 mm.

Guidance for specification option:

916 x 1958 mm clear opening.

1000 x 2125 mm.

Guidance for specification option:

916 x 2083 mm clear opening.

1125 x 2000 mm.

Guidance for specification option:

1041 x 1958 mm clear opening.

1125 x 2125 mm.

Guidance for specification option:

1041 x 2083 mm clear opening.

1250 x 2000 mm.

Guidance for specification option:

1166 x 1958 mm clear opening.

1250 x 2125 mm.

Guidance for specification option:

1166 x 2083 mm clear opening.

1250 x 2250 mm.

Guidance for specification option:

1166 x 2208 mm clear opening.

Leaf

-

Material

Glass.

Colour

Clear.

Hardware

-

Door rails and patch fittings

-

Type

Fitting covers.

Material and finish

Stainless steel (1.4301) grinded with grain size 240.

Lock

-

Type

Glass-door lock with lever/ knob.

Guidance for specification option:

Standard glass-door lock with lever/ knob, prepared for profile cylinder in accordance with DIN 18250, stainless steel round fire-resistant handle set.


Glass-door lock with panic function.

Guidance for specification option:

Glass-door lock with panic function DIN EN 179/ 1125, stainless steel round handle set.


Position

Centrally in opening edge of door.

Accessories

Hinges.

Guidance for specification option:

Two VN-all-glass-fire-protection-hinges with stainless steel cover.

Closer.

Guidance for specification option:

Dorma TS 93 system with slide rail, in accordance with DIN EN 1154. Stainless steel type mounted on hinge side.

Other.

Guidance for specification option:

Various items of special equipment and control devices are available, consult manufacturer and insert requirements.

FireRating

To EN1634-1, E30.

To EN1634-1, EI30.

Frame

2 mm thick corner frame.

Guidance for specification option:

Standard.

2 mm counter frame.

2 mm closed frame.

2 mm single rebate 'block' frame.

Manufacturer guidance

Corner frame 2 mm thick with three sided seal and bottom sill. Frame fixed with screws (three per side).

AcousticRating

To DIN EN 20140, Rw 34 dB.

Smoke-resistance

To EN1634-3

Material

Steel.

Finish

Galvanized and prime coated in traffic white.

Guidance for specification option:

Similar to RAL 9016.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Material

Glass

Stainless steel

Recyclability

Manufacturer's standard

Third party certifications

DAkkS

DAkkS

GB_EPD_Teckentrup

Literature

Fire-resistant glass door T30-FSA “Teckentrup GL”

Fire-resistant glass door T30-FSA “Teckentrup GL”

Teckentrup Steel Door & Steel Doorset Guide - Fire Doors, Security Doors, Acoustic Doors, Ballistic Doors, External Enveloping Steel Doors, All Glass Fire Doors

Teckentrup Steel Door & Steel Doorset Guide - Fire Doors, Security Doors, Acoustic Doors, Ballistic Doors, External Enveloping Steel Doors, All Glass Fire Doors

All-Glass Door T30-1-FSA „Teckentrup GL“ (Technical Data)

All-Glass Door T30-1-FSA „Teckentrup GL“ (Technical Data)

All-Glass Door T30-2-FSA „Teckentrup GL“ (Technical Data)

All-Glass Door T30-2-FSA „Teckentrup GL“ (Technical Data)

EN ISO 9001: 2008 Certificate

EN ISO 9001: 2008 Certificate

Environmental Product Declaration

Environmental Product Declaration

Case studies

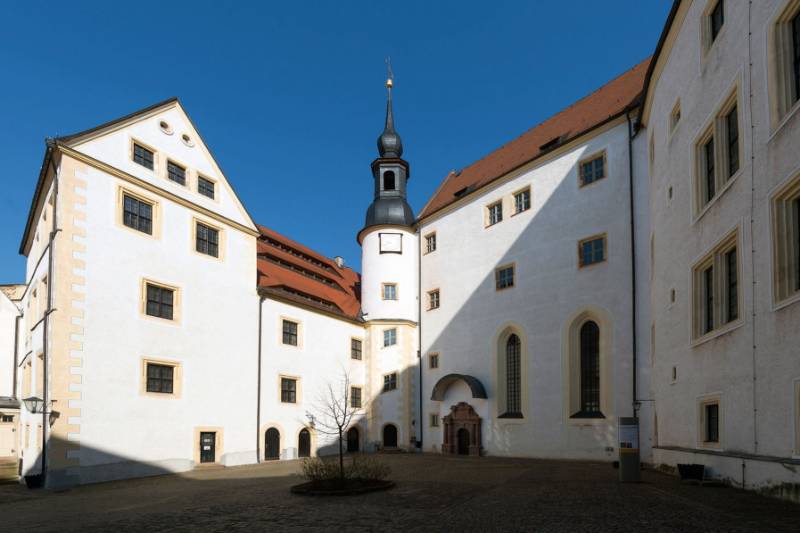

Colditz castle: Teckentrups fire-protection in a historical building with all glass fire doors and fire doorsets creates a brilliantly sympathetic fire protection solution
