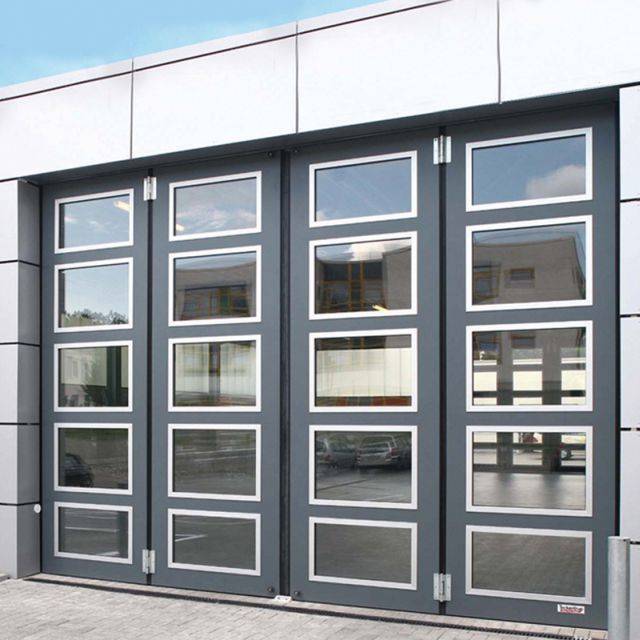

Teckentrup Folding Sliding Steel Door FE - Folding Sliding Steel Door

Verified by manufacturer 22 days ago

Mineral wool infill

Teckentrup UK Ltd Variant:
Third party certifications:
  • DAkkS

    DAkkS

    Certificate type

Double-skinned, heat insulated folding sliding doors that are quiet and easy to operate - UD value of 1.9 W(m2)K.

Jump to:
+44 (0)1925 924050 Website

Application

Suitable for the following fixing applications:

  • Masonry.
  • Concrete.
  • Autoclaved aerated concrete.
  • Steel construction.

Description

The folding sliding steel door is a four-leaf door, 3:1 coupled, and double skinned with pur foam core.


Features and benefits:

  • Door leaf 50 mm thick, with vertically arranged rubber accident prevention profiles.
  • Wind resistance (DIN EN 12424): Class 4 (2500 Pa).
  • Air permeability (EN 12427): Class 4.
  • Water ingress (EN 12489): Class 3.
  • Sound insulation (ISO 717-7): Maximum Rw 32 dB (mineral wool infill).
  • Heat insulation (EN ISO 12567-1): 1.9 W/m²k (PU-foam infill).

General information

Color

Grey

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

-

Manufacturer guidance

Warranty is subject to application, location and specification. Consult manufacturer for details.

Uniclass

Pr_30_59_24_81 Sliding folding doorsetsPrimary

CAWS

L20/530 Sliding folding external doors

Specification data - Sliding folding doorsets

Third party accreditation

To DIN EN 12424, EN 12427, EN 12489, EN ISO 12567-1 and ISO 717-7.

Grade

Insulated.

Format

Folding.

Track system

Sliding.

Door leaf

-

Construction

Four leaf.

Finish

Polyester powder coated, RAL.

Guidance for specification option:

Similar to RAL 9016, not available with mineral wool core.

Galvanized natural.

Guidance for specification option:

With mineral wool core only.

2K-PUR, RAL.

Guidance for specification option:

Optional, consult manufacturer and insert requirements.

Operation

Manual.

Hardware

Two-piece three roller steel hinges with ball bearings (galvanized).

Guiding rails with ball-beared plastic roller.

Surface mounted basquill lock inside prepared for profile cylinder and handle set (black) on the outside for access door leaf version.

Wicket door with mortice lock.

Mounted folding door basquill with locking rod with separate handle.

Leaf hold open device.

Accessories

Guidance for specification option:

Various items of special equipment are available, consult manufacturer and insert requirements.

Door leaf

Double skinned.

Core

Bonded mineral wool.

Guidance for specification option:

1.5 mm sheet thickness.

Mineral wool.

Guidance for specification option:

1.75 mm sheet thickness.

PUR foam.

Guidance for specification option:

1 mm sheet thickness.

Glazing

Laminated safety glass 6 mm thick.

SAN double glazing 18 mm thick.

Guidance for specification option:

Aluminum frame only.

Double laminated safety insulation glass (VSG/ VSG) 21 mm thick.

Guidance for specification option:

 With aluminum clamping strips or rubber clamping profile.

Not required.

Thickness

50 mm.

Door frame

Side frame.

Guidance for specification option:

Side Frame: 50 x 90 mm square tube.

Upper frame.

Guidance for specification option:

Upper frame: U-profile with guiding rail and release layer.

Bottom.

Guidance for specification option:

Bottom: With threshold.


Acoustic performance

To ISO 717-7, Maximum Rw 32 dB.

Thermal

Not applicable.

Air permeability

To EN 12427, Class 4.

Wind resistance

To DIN EN 12424, Class 4 (2500 Pa).

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany

Material

Steel

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

99.83 kg CO₂ eq/m²

Self declared

Recyclability

Manufacturer's standard.

Third party certifications

DAkkS

DAkkS

EPD Sliding and Folding Doors

Literature

Teckentrup Insulated Sliding Folding Doors Manual and Powered

Teckentrup Insulated Sliding Folding Doors Manual and Powered

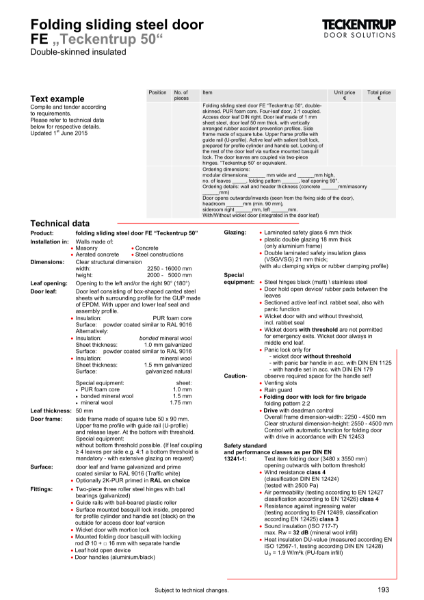

Folding Door FE "Teckentrup 50" (Technical Data)
