Technowood Natural Veneer Coated Indoor Linear Ceiling Systems

Verified by manufacturer 1 month ago

Technowood UK Third party certifications:
  • FSC

    FSC

    Certificate type

  • EPD

    EPD

    Certificate type

  • BS EN 13501-1

    BS EN 13501-1

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

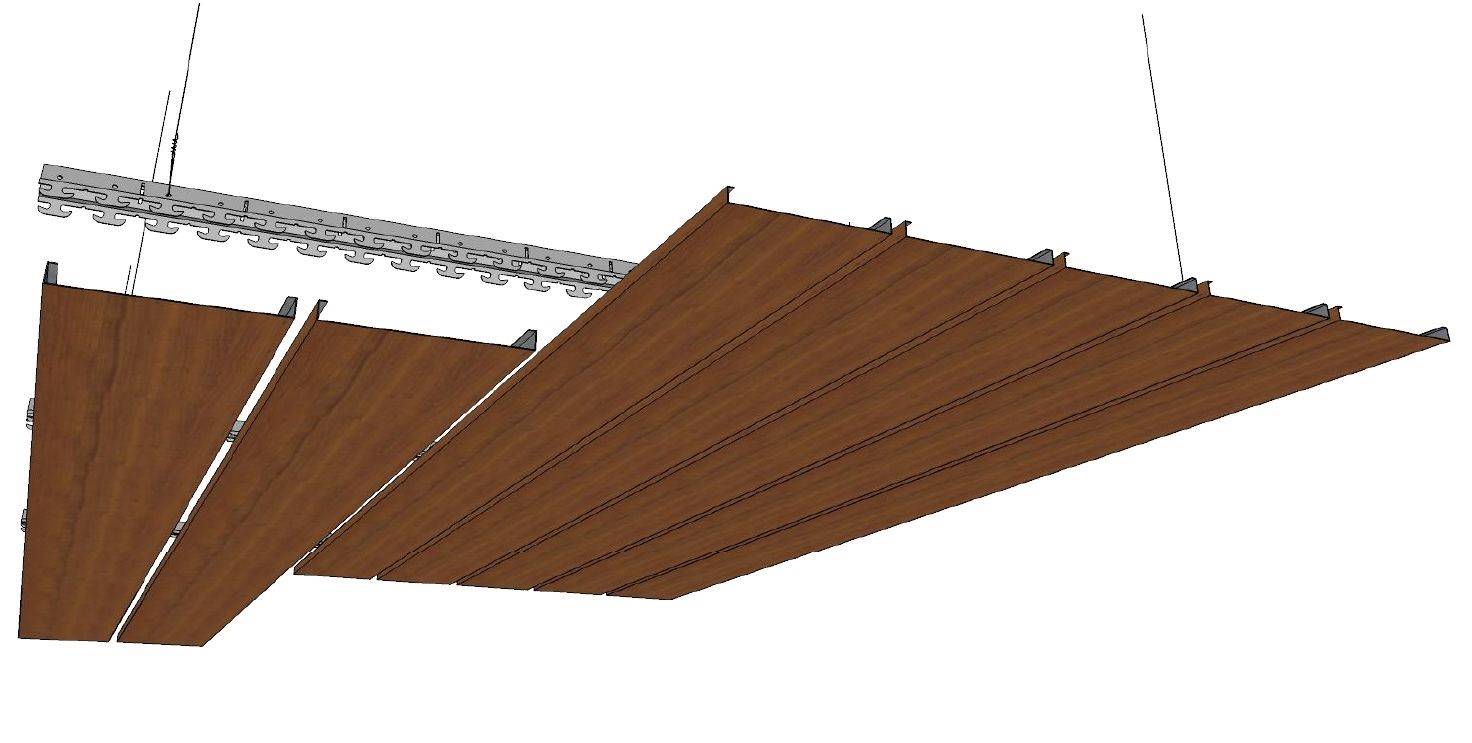

Ceiling baffle system based on aluminium profiles finished with natural wood veneer.

Jump to:
+44 1494 773344 Website

Application

Indoor suspended ceiling

Description

Ceiling baffle system based on aluminium profiles finished with natural wood veneer.


Features and benefits:

  • Range of infill sizes.
  • Range of natural wood finishes.
  • Lightweight.
  • Provides the visual and tactile effects of natural wood.
  • Requires 98% less timber than equivalent sold wood projects.
  • Minimal maintenance required.
  • For use with hanger system CLS-1000 (specified separately).

General information

Color

Beige

Black

Bronze

Brown

Copper

Show more

Manufacturer guidance

Eight colours available.

Finish

Veneered

Material

Aluminium

Shape

Other

Rectangle

Length

6000 mm

Width

Bespoke

Height

Bespoke

Warranty description

20 year

Uniclass

Pr_35_93_13_51 Metal infill unitsPrimary

CAWS

K40/115 Unit/ modular suspended ceiling system

K40/105 Suspended ceiling system

K40/10 Unit/ modular suspended ceilings

Specification data - Metal infill units

Unit type

Linear strip.

Material

Aluminium.

Unit size

30 mm.

Guidance for specification option:

Wall thickness: 0.4 mm.

80 mm.

Guidance for specification option:

Wall thickness: 0.4 mm.

130 mm.

Guidance for specification option:

Wall thickness: 0.4 mm.

180 mm.

Guidance for specification option:

Wall thickness: 0.4 mm.

Manufacturer guidance

Available in lengths of 6000 mm as standard; special lengths can be produced for orders over1000 linear metres.

Surface pattern

Natural wood.

Factory finish

-

Finish

Natural wood veneer.

Extent

Visible surfaces of unit when installed.

Finished surface

Natural wood veneer.

Colour

Teak.

Mahogany.

Oak.

Walnut.

Ash.

Bamboo.

Unit depth

15 mm.

Edge profile

Square.

Product Reference

Technowood Natural Veneer Coated Indoor Linear Ceiling Systems

Accessories

Not required.

Solid wood caps CBF-W.

Panel internal face

Class A1.

Panel external face

Class A2.

Fire rating for panels

A2, s1, d0.

Sustainability data

Contains Red List materials

No

Country of material origin

Turkey

Country of product manufacture

Turkey

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

EPD

Third party certifications

FSC

FSC

Chain of Custody Certification BM Trada

EPD

EPD

Environmental Product Declaration - Wood veneered aluminium

BS EN 13501-1

BS EN 13501-1

Euroclass A2-s1,d0 Classification

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality Management

Literature

Technowood Alu Data sheet

Technowood Alu Data sheet

TECHNOWOOD VARNISH VENEER CHART

TECHNOWOOD VARNISH VENEER CHART

Interim test report No. 10-001070-PB01-K99-en-01

Interim test report No. 10-001070-PB01-K99-en-01

Artificial Weathering Test report

Artificial Weathering Test report

Test report 10-001070-PB03-K99-03-en-01

Test report 10-001070-PB03-K99-03-en-01
