Grilles less than 12 m².

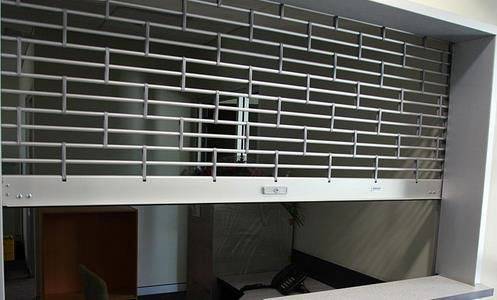

Tube and link roller shutters.
Medium security commercial sites where see-through vision is a priority. Suitable for:

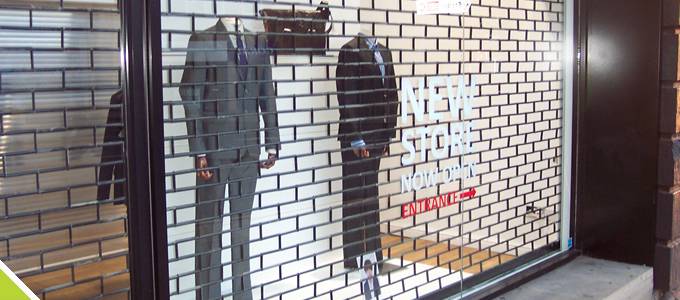

An aesthetically way of providing light security to an aperture. The curtain is made from aluminum tubes and links arranged in a brick bond pattern. The usual mesh size is 230 x 70 mm and internal horizontal rods are manufactured from 8 mm diameter round bars and pinned at each end to prevent lateral movement.
Features and benefits:
Color | Silver Other Guidance for specification option: Any RAL or BS colour. |
Finish | Galvanized Powder-coated |
Material | Aluminium Steel |
Shape | Rectangle |
Size | Manufacturer guidanceMade to measure; consult manufacturer for details. |
Warranty description | One year Guidance for specification option: On electrical parts. |
Uniclass | |
CAWS | L20/60 Doors L20/612 Roller grilles |
Standard | To BS EN 13241-2003-1. |
Opening sizes | Manufacturer guidanceBespoke, available on request. |
Arrangement | Brick bond, vertical.Standard, in-line, vertical.Manufacturer guidanceVertical, fitted into reveal. |
Resistance to wind load | Class 2. |
Operating forces | To BS EN 13241-1, Pass. |
Grille curtain | |
Material | Aluminium. |
Finish and colour | Anodized aluminium.Guidance for specification option: Standard. Polyester powder coated, BS colour.Guidance for specification option: Any BS colour available for an additional cost. Please insert requirements. Polyester powder coated, RAL colour.Guidance for specification option: Any RAL colour available for an additional cost. Please insert requirements. |
Frame and guides | |
Material | Aluminium. |
Finish | Mill. |
Colour | BS.Guidance for specification option: Any BS colour available. Please insert requirements. RAL.Guidance for specification option: Any RAL colour available. Please insert requirements. Self-colour.Guidance for specification option: Standard |
Operation | |
Mode | Automatic, single-phase tubular motor.Automatic, 3-phase outboard mortar.Manual, push and pull.Manufacturer guidanceManual push and pull override facility |
Control | Key switch.Radio / remote control.Key fobs.Rocker switch.Timer closing.Smart phone.Automated.Other.Guidance for specification option: UK Roller Shutters Ltd can access anyone's systems for operation. Consult manufacturer. |
Hood/ fascia | Not required. Galvanised steel hood. Guidance for specification option: Can be supplied to cover the coiled shutter and motor. |
Dimensions | 2200 x 300 mm. 3600 x 360 mm. 5500 x 400 mm. Manufacturer guidanceEnclosure size: guide length (up to mm) x box size (up to mm). Sizes are based on standard tube mortar operation and 3-phase external direct drive mortor. |
Shutter curtain | 230 x 70 mm. Guidance for specification option: Internal horizontal rods are manufactured from 8mm diameter round bar and pinned at each end to prevent lateral movement. Manufacturer guidanceStandard mesh size. |
End plates | Mild steel. |
Tube length | 111 mm. |
Height | 86 mm. Manufacturer guidanceLink height. |
Weight | 10 kg/m². |
Width (maximum) | 6000 mm. |
Surface | 20 m². Guidance for specification option: With single-phase or 3-phase power. Manufacturer guidanceMaximum surface. |
Country of product manufacture | United Kingdom |
