Tate Grid+ LEC - Structural Ceiling Grid
Verified by manufacturer 2 days ago
EPD
Certificate type
BS EN 1090-1
Certificate type
Aluminium structural ceiling grid.
Application
Tate Grid+ LEC is suitable for the data center sector and for use in attachment and suspension of critical infrastructure applications.
Description
A proprietary pre-engineered and factory produced aluminium structural ceiling grid system, with top and bottom continuously threaded slots.
Consists of main runners and structural tees connected by field connectors, larger XL connectors at main runner splice points, M8 serrated bolts, metal ceiling tiles and associated gasket and ceiling tile clips.
Features and benefits:
- Capable of supporting power modules, light fixtures, cable trays, ceiling supported hot aisle containment and other critical data centre infrastructure components.
- Modular system.
- Spring clip for tile access.
- Security clips for restricting tile access.
- Class A1 fire rated.
General information
Color | White |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Length | 1200 mm 3600 mm |
Width | 600 mm |
Height | 79 mm Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | K40/105 Suspended ceiling system K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system |
Specification data - Demountable suspended ceiling grids
Classification data | |
Grid type | |
Exposed | Main runner and tee section. |
Components | M10 Turnbuckle suspended supports; 3600 mm main runners; perimeter trims; 1200 mm structural cross tees; field connector; XL connector; straight connector; corner connector; M8-35 screws; double spring clips; security clips. |
Material | Aluminium. |
Finish as delivered | |
Coating | Powder-coated. |
Colour | RAL 9003 (white). |
Weight | 2.9 kg/m². |
Safe Working Load | 2.2 kN. Guidance for specification option: or 224 kg, based on 1.2 x 1.2 m hangar configuration. Manufacturer guidanceMaximum safe working point load. |
Fire performance | To EN 13501:1, Class A1. |
Grid spacing | 1200 x 600 mm. |
Tile size | 600 x 1180 mm. |
Profile | 70 x 39 mm flanged profile with continuously threaded top and bottom slot. |
Installation | Floating, L-angle bracket. Fixed. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Ireland |
Material | Aluminium |
| Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit : 16.5 | |
Expected Life | 50 year |
Product certifications
Product certifications
Certification type
EPD
Tate Grid + LEC - EPD
BS EN 1090-1
Load Bearing Aluminum Components
Literature
Literature type

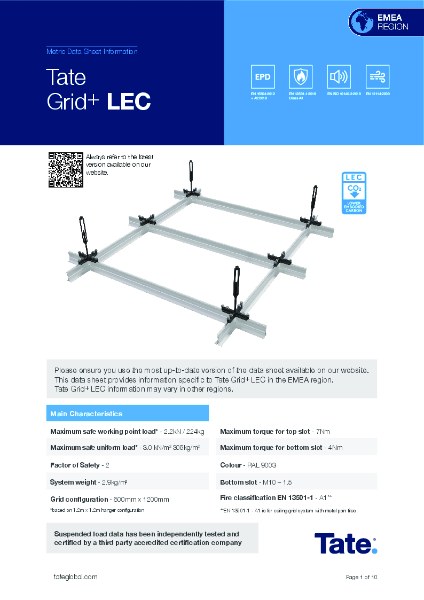

Tate - Grid+ LEC - Datasheet - en - eu - v3

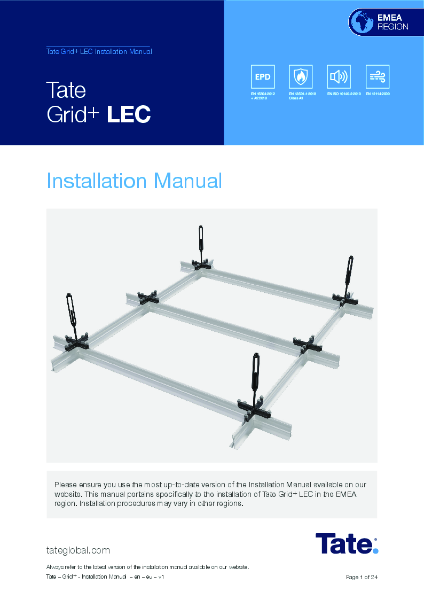

Tate - Grid+ LEC - Installation Manual - en - eu - v1
